Chief Structural Column Adaptor - FCASCA

Product Overview

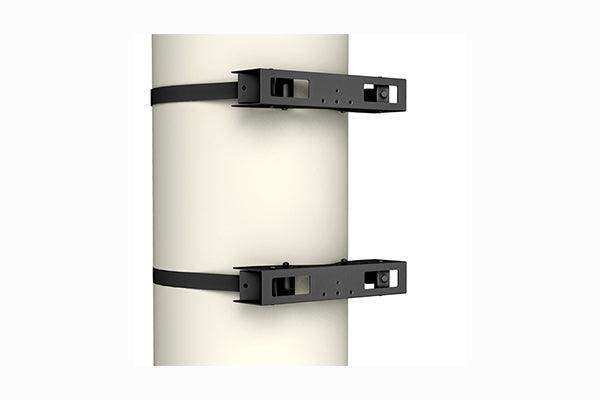

The Chief FCASCA structural column adapter makes it possible to mount displays on round concrete or steel structural columns. It is designed for use with Chief Fusion, Fusion Modular, and Thinstall swing-arm mounts in commercial meeting spaces and open-plan environments. The adapter can be cut to size in the field, so installers do not need exact column dimensions in advance. It supports both landscape and portrait display orientations on columns from 12" to 24" in diameter.

Product Description

Round structural columns are common in lobbies, atriums, and open commercial floors, but they create a challenge for display mounting. The FCASCA solves this by wrapping the column with a heavy-duty adapter that accepts a Chief swing-arm display mount. Because the adapter and its aesthetic cover can be cut to length in the field, integrators do not need to measure the exact column dimensions before arriving on site. It supports a range of displays across column sizes from 12" to 24" (305 to 609 mm) and works with both steel and concrete columns. The cut-to-length aesthetic cover gives the finished installation a clean, intentional appearance rather than exposed hardware. The FCASCA supports both landscape and portrait orientations, giving designers flexibility for signage and information displays. It is compatible with Chief MSM1U, MTM1U, MTMS1U, MTMP1U, FMSWM, TS118SU, TS218SU, and TS318SU mounts. For the compatible display mounts and related accessories, browse the Chief collection at Creation Networks. This adapter is the right choice when a display needs to live on a column rather than a wall or ceiling.

Key Features

• Field-cut sizing — Can be cut to size on site, so you do not need to know the exact dimensions of round columns in advance.
• Cut-to-length cover — An aesthetic cover trims to length for a clean, finished appearance around the column.
• Wide column range — Supports a range of displays on round columns from 12" to 24" (305 to 609 mm).
• Steel or concrete compatible — Works with both steel and concrete structural columns.
• Heavy weight capacity — Built to support a range of commercial displays on swing-arm mounts.
• Dual orientation — Supports both landscape and portrait display orientations.
• Broad mount compatibility — Works with Chief MSM1U, MTM1U, MTMS1U, MTMP1U, FMSWM, TS118SU, TS218SU, and TS318SU mounts.

Typical Applications

• Lobby and atrium displays on structural columns
• Commercial meeting spaces and open-plan offices
• Digital signage on round columns
• Multi-purpose rooms and retail environments
• Government and corporate facility wayfinding displays

Technical Specifications

Frequently Asked Questions

What is the FCASCA used for?
It adapts round structural columns so a Chief Fusion, Fusion Modular, or Thinstall swing-arm mount can hold a display on the column.

What column sizes does it fit?
It supports round columns from 12" to 24" (305 to 609 mm) in either steel or concrete.

Do I need exact column measurements before installation?
No. The adapter and cover can be cut to size in the field, so precise dimensions are not required in advance.

Which mounts is it compatible with?
It works with Chief MSM1U, MTM1U, MTMS1U, MTMP1U, FMSWM, TS118SU, TS218SU, and TS318SU swing-arm mounts.

Can it support portrait displays?
Yes. The FCASCA supports both landscape and portrait orientations.

What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for warranty terms and support.
