Chief Large Low-Profile In-Wall Swing Arm Mount - 22"- PWRIWUB
Product Overview

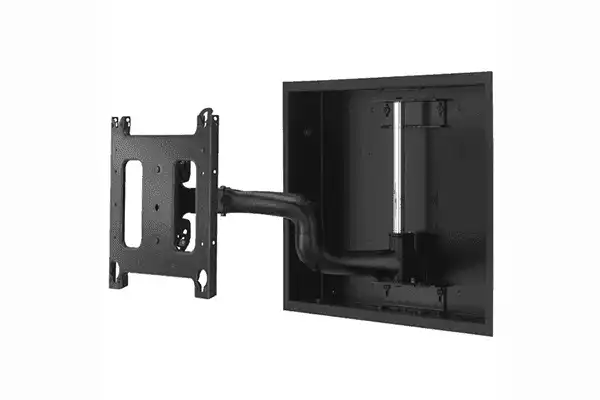

The Chief PWRIWUB is a large low-profile in-wall swing arm mount designed to create a flush installation for flat panel displays up to 55". It recesses into the wall using the PAC501 In-Wall Accessory, keeping the display close to the surface while still offering full-motion articulation. The mount ships fully assembled for fast installation and supports displays up to 125 lbs. It is ideal for conference rooms, commercial meeting spaces, and digital signage where a clean, recessed look is required.
Product Description
The Chief PWRIWUB is an in-wall swing arm designed to create a flush installation for commercial flat panel displays.
Supporting flat panel displays up to 55" or 125 lbs, it ships fully assembled and ready for fast installation into the PAC501 In-Wall Accessory, which must be ordered separately. Installing the mount into the PAC501 creates an ultra-low-profile result with the swing arm recessed into the wall cavity. The PWRIWUB includes a custom interface bracket making it compatible with hundreds of flat panel displays from 37" to 55". To simplify installation, Chief's exclusive ClickConnect mounting system uses a lockable latch to safely secure the display to the mount, providing easy connect and disconnect without requiring any tools, with an audible click confirming the panels are locked in place. Holes are provided in the faceplate for use with a padlock or similar locking device, and the pin and nut may be removed from the upper holes and moved to the lower holes for use as a more permanent locking device. The combination of a flush in-wall design and full-motion swing arm makes the PWRIWUB well suited to spaces where aesthetics and security both matter.
Key Features
- Flush in-wall installation — Designed to recess into the wall for an ultra-low-profile result using the PAC501 In-Wall Accessory (sold separately).
- Supports displays up to 55" / 125 lbs — Built for large commercial flat panels.
- Ships fully assembled — Arrives ready for fast installation to save on setup time.
- Wide compatibility — Custom interface bracket fits hundreds of flat panel displays from 37" to 55".
- ClickConnect mounting — Lockable latch safely secures the display with tool-free connect and disconnect and an audible confirmation click.
- Integrated security — Faceplate holes accept a padlock, and the pin and nut can be relocated for a more permanent lock.
Typical Applications
- Conference room and boardroom displays
- Commercial meeting space and huddle room displays
- Corporate digital signage
- House of worship and government space displays
- Multi-purpose room display installations
Technical Specifications
| Mount Type | In-wall full-motion swing arm mount |
| Maximum Display Size | Up to 55" |
| Display Compatibility | 37" – 55" via included custom interface bracket |
| Weight Capacity | Up to 125 lbs |
| In-Wall Accessory | PAC501 (sold separately, required for flush install) |
| Mounting System | ClickConnect with lockable latch |
| Security | Faceplate padlock holes; relocatable pin and nut |
| Assembly | Ships fully assembled |
Frequently Asked Questions
What displays is the PWRIWUB compatible with?
It includes a custom interface bracket compatible with hundreds of flat panel displays from 37" to 55", supporting up to 125 lbs.
What do I need for a flush installation?
The PWRIWUB installs into the PAC501 In-Wall Accessory, which must be ordered separately, to create the ultra-low-profile recessed result.
How does the display attach to the mount?
Chief's ClickConnect mounting system uses a lockable latch for tool-free connect and disconnect, with an audible click confirming the panel is locked in place.
Can the display be locked for security?
Yes. Faceplate holes accept a padlock, and the pin and nut can be relocated to the lower holes for a more permanent locking device.
Is the PWRIWUB covered by a warranty?
Yes. It is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
