Chief Projector Mt kt RPMAU CMS0203 CMS115 - KITQD0203
Product Overview

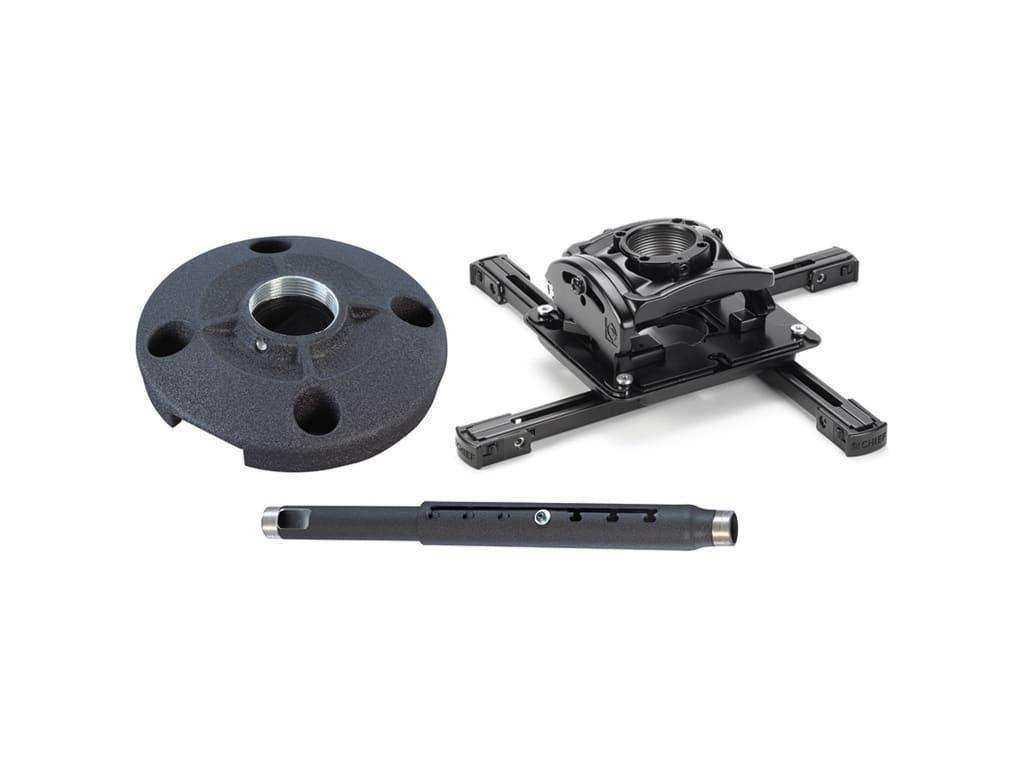

The Chief KITQD0203 is a preconfigured projector ceiling mount kit combining the RPMAU Elite universal projector mount, the CMS0203 2–3' (610–914 mm) adjustable extension column, and the CMS115 6" (152 mm) Speed-Connect ceiling plate. This kit targets commercial AV installations in conference rooms and training spaces where a hard-ceiling attachment point is available and a mid-range drop height is needed. Ordering as a matched kit simplifies procurement and ensures component compatibility out of the box.
Product Description
The Chief KITQD0203 kit is built around the RPMAU Elite universal projector mount, Chief's premium projector mounting platform featuring a keyed locking mechanism that secures the projector and prevents unauthorized removal — a valuable feature in shared commercial environments. The CMS0203 adjustable extension column spans from 2 to 3 feet (610–914 mm), providing a meaningful range of drop height adjustment to fit varying ceiling heights without requiring an additional extension or reduction piece. The CMS115 is a 6" (152 mm) Speed-Connect ceiling plate designed for hard ceiling attachment, with a rapid-connect interface that speeds up both installation and future servicing. Together, these three components address the most common commercial projector ceiling installation scenario: mid-range drop, hard ceiling, universal projector compatibility with security. All components are available individually from Creation Networks for future expansion or replacement needs.
Key Features
- RPMAU Elite projector mount with keyed locking — Secures the projector against unauthorized removal, suitable for shared commercial meeting spaces and training rooms.
- 2–3' adjustable extension column — The CMS0203 spans 610–914 mm, accommodating a range of ceiling drop heights in a single column without stacking extensions.
- 6" Speed-Connect ceiling plate — CMS115 features Chief's rapid-connect attachment for fast installation and simplified future service access.
- Matched kit procurement — All three components are confirmed compatible and ship together, eliminating component mismatch risk.
- Hard ceiling installation — CMS115 attaches to concrete, drywall, or structural hard ceilings rather than suspended grid systems.
Typical Applications
- Conference room projector ceiling installations with hard ceiling decks
- Training room projection systems in mid-drop ceiling environments
- Boardroom or all-hands room AV infrastructure
- Commercial meeting space projector mounting
- House of worship or auditorium projection setups
Technical Specifications
| Component | Description |
|---|---|
| SKU | KITQD0203 |
| Projector Mount | RPMAU — Elite Universal Projector Mount with keyed locking (A version) |
| Extension Column | CMS0203 — 2–3' (610–914 mm) adjustable extension column |
| Ceiling Plate | CMS115 — 6" (152 mm) Speed-Connect ceiling plate |
| Ceiling Type | Hard ceiling (concrete, drywall, structural) |
| Manufacturer | Chief / Legrand AV |
Frequently Asked Questions
Q: What is the keyed locking feature on the RPMAU?
The RPMAU Elite uses a keyed lock to secure the projector to the mount, preventing unauthorized removal in shared commercial spaces.
Q: Can the CMS0203 column be extended beyond 3 feet?
The CMS0203 adjusts from 2 to 3 feet. For drops exceeding 3 feet, additional Chief extension pipe components can be added.
Q: Is the CMS115 compatible with suspended ceiling grids?
No. The CMS115 is a hard ceiling plate. For suspended grid ceilings, use a ceiling plate such as the CMS440.
Q: Can I purchase individual kit components separately?
Yes. The RPMAU, CMS0203, and CMS115 are each available individually from Creation Networks for replacement or separate installations.
Q: What warranty applies to this product?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks directly for current warranty terms and support.
