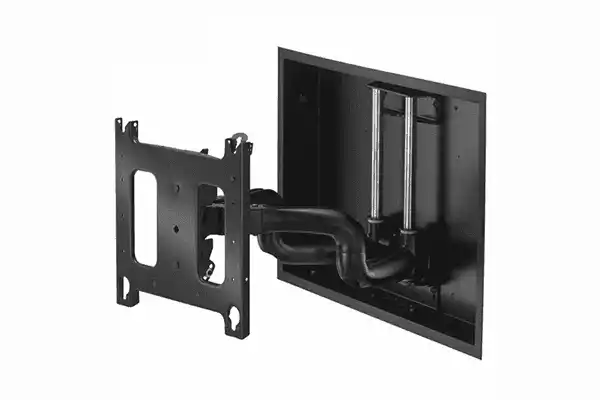

Chief PNRIWUB Universal Flat Panel Dual Swing Arm Wall Mount (Black)

Product Overview

The Chief PNRIWUB is a universal in-wall dual swing arm wall mount built for large flat panel displays up to 86" or 200 lb, ideal for conference rooms, commercial meeting spaces, and lobbies where a low-profile recessed look is required. The dual arms extend up to 24-7/8" from the wall, pivot up to 90 degrees left or right, and fold to just 3-1/4" in the home position. It ships with a universal interface bracket for broad display compatibility and requires the sold-separately Chief PAC501 mounting accessory. Built-in cable management and tool-free ClickConnect engagement speed both installation and service.

Product Description

The PNRIWUB brings in-wall swing arm technology to large format displays, letting an integrator recess the mount for a clean, low-profile installation. The dual arms extend up to 24-7/8" from the wall and pivot up to 90 degrees left or right of center, while folding to only 3-1/4" in the home position to sit close to the wall. Installation is fast: after drawing the plumb line and setting the two top lag bolts into the wall studs, the installer hangs the mount on its top bracket, installs the bottom lag bolts, sets the height, mounts the display, and routes power, audio, and video cables through the built-in channels inside the arms. Integrated lateral shift provides up to 9" of horizontal travel (4.5" left or right) on a 16" stud system without disassembly, so the display can be centered precisely. Post-installation height adjustment of up to 1" (25.4 mm) and a tilt range of 5 degrees up to 15 degrees down add placement flexibility. The exclusive ClickConnect mounting system provides tool-free connect and disconnect with an audible click confirming the panel is locked, and a padlock can be added to deter theft. The universal interface bracket is compatible with hundreds of flat panel displays from 42 to 86"; confirm your display with Chief MountFinder before ordering. Browse the full Chief collection for compatible interfaces and accessories.

Key Features

• In-wall dual swing arm — Recessed design creates a low-profile installation for large flat panel displays up to 86" or 200 lb.
• 24-7/8" extension — Dual arms extend up to 24-7/8" from the wall and pivot up to 90 degrees left or right of center.
• Low-profile home position — Arms fold to just 3-1/4" so the display sits close to the wall when not extended.
• Universal interface included — Compatible with hundreds of displays from 42 to 86"; requires the sold-separately PAC501 accessory.
• Integrated lateral shift — Up to 9" of travel (4.5" left or right) on a 16" stud system without disassembly for precise centering.
• ClickConnect mounting system — Tool-free connect and disconnect with an audible click; padlock-ready for theft protection.
• Post-installation adjustment — Up to 1" (25.4 mm) of height adjustment plus 5 degrees up to 15 degrees down of tilt.
• Built-in cable management — Channels inside the arms route cables for a clean installation, with rubber wall stops protecting the wall.

Typical Applications

• Conference room and boardroom displays
• Commercial meeting space and multi-purpose room installations
• Lobby and government space flat panels requiring a recessed look
• Training room and all-hands room displays

Frequently Asked Questions

Q: What display sizes and weights does the PNRIWUB support?
It supports large flat panel displays from 42 to 86" and up to 200 lb.

Q: Does it include a display interface?
Yes. It includes a universal interface bracket, but it requires the sold-separately Chief PAC501 mounting accessory.

Q: How far does it extend from the wall?
The dual arms extend up to 24-7/8" and fold to just 3-1/4" in the home position.

Q: How is the display secured and serviced?
The exclusive ClickConnect system provides tool-free connect and disconnect with an audible click, and a padlock can be added for theft protection.

Q: How do I confirm my display is compatible?
Use Chief MountFinder to confirm compatibility with your specific flat panel before ordering.

Q: What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
