Chief PNRIW2000B Universal Flat Panel Dual Swing Arm Wall Mount (Black)

Product Overview

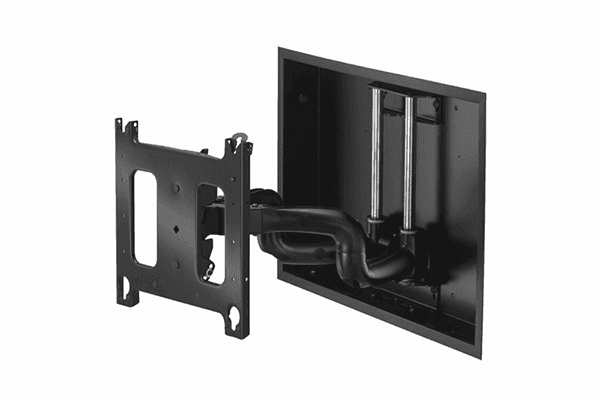

The Chief PNRIW2000B is a universal flat panel dual swing arm wall mount engineered for large displays in conference rooms, commercial meeting spaces, and digital signage installations. It supports displays up to 71" and 200 lb (90.7 kg) while folding to just 3-1/4" from the wall in the home position. Dual articulating arms extend up to 24-7/8" and pivot up to 90° left or right of center for flexible viewing angles. The in-wall design, built-in cable paths, and tool-free ClickConnect system make it a fast, secure choice for commercial-grade installations.

Product Description

The PNRIW2000B is designed for installations that demand a solid dual swing arm with a shorter extension and a clean home position. The dual arms extend up to 24-7/8" from the wall, pivot up to 90° left or right of center, and fold down to only 3-1/4" when collapsed. This combination lets integrators pull a large display out for servicing or angled viewing, then tuck it back near the wall in shared rooms. The mount ships with the support posts centered, and those posts can shift laterally up to 9" (4.5" left or right) across a 16" stud system without disassembly. Post-installation height adjustment of up to 1" (25.4 mm) and a tilt range of 5° up to 15° down give installers room to fine-tune the final position. Cabling routes through built-in channels inside the arms for tidy power, audio, and video runs. The exclusive ClickConnect mounting system provides tool-free connect and disconnect with an audible click that confirms the panel is locked, and a padlock can be added for theft protection. A universal interface bracket makes the PNRIW2000B compatible with hundreds of flat panel displays, and Chief's MountFinder Pro can confirm fit for a specific model. Wall protection rubber stops guard the wall surface when the arms are collapsed. For related mounting hardware, browse the full Chief collection at Creation Networks.

Key Features

• Dual swing arm articulation — Arms extend up to 24-7/8" from the wall and pivot up to 90° left or right of center for flexible viewing angles.
• Low-profile home position — The mount folds to just 3-1/4" from the wall to keep displays close to the surface in shared rooms.
• Lateral shift adjustment — Integrated shift up to 9" (4.5" left or right) across a 16" stud system without disassembly simplifies placement.
• ClickConnect mounting system — Tool-free connect and disconnect with an audible click confirms the display is locked in place.
• Built-in cable management — Channels inside the arms route power, audio, and video cables for a clean installation.
• Post-installation adjustment — Up to 1" (25.4 mm) of height adjustment and a 5° up to 15° down tilt range allow precise leveling.
• Universal interface bracket — Compatible with hundreds of flat panel displays; confirm fit with Chief's MountFinder Pro.
• Security and wall protection — Padlock-ready design deters theft, and rubber stops protect the wall when arms are collapsed.

Typical Applications

• Conference room display walls requiring angled viewing
• Commercial meeting spaces and boardrooms
• Digital signage in lobbies and corridors
• Training rooms and multi-purpose rooms
• Government and healthcare facility displays

Technical Specifications

Frequently Asked Questions

What size displays does the PNRIW2000B support?
It accommodates large flat panels up to 71" and 200 lb (90.7 kg) using a universal interface bracket.

How do I confirm my display is compatible?
The universal bracket fits hundreds of displays; verify your specific model with Chief's MountFinder Pro before ordering.

How far does the mount extend and retract?
The dual arms extend up to 24-7/8" from the wall and fold back to just 3-1/4" in the home position.

Does it support cable management?
Yes. Cables route through built-in channels inside the swing-out arms for a clean, professional finish.

Can the mount be secured against theft?
Yes. The ClickConnect system is padlock-ready, allowing you to lock the display to the mount.

What warranty applies?
This mount is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for warranty terms and support.
