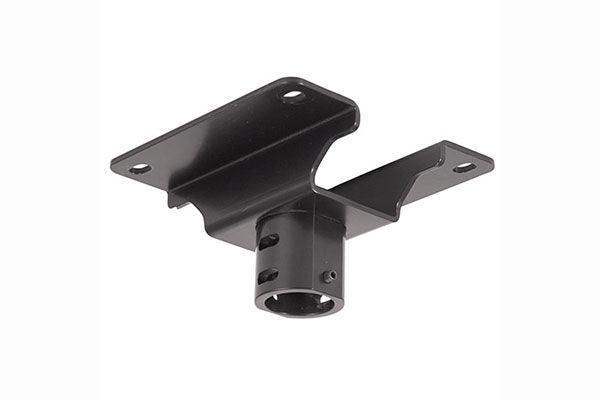

Chief OFFSET FIXED CEILING PLATE 1-1/2 NPT - CMA330
Product Overview
The Chief CMA330 is an offset fixed ceiling plate with a 1.5-inch NPT connection, designed to route projector cables through the extension column and out the top of the plate for clean cable management. The built-in offset creates a cable exit when mounting to a flat ceiling surface. It attaches to a 1.5-inch NPT threaded extension column for column-based projector installations. The plate suits conference rooms, training rooms, and auditoriums.
Product Description
The CMA330 offset ceiling plate combines structural mounting with integrated cable routing.
The plate measures 8" (203 mm) square and incorporates a 1.75" (44 mm) high offset, which provides the clearance needed for cables to exit when the plate is mounted to a flat ceiling surface. Cables run up through the extension column and out the top of the ceiling plate, keeping wiring concealed and organized. The plate attaches to a 1.5" NPT threaded extension column, and the overall assembled height of the plate is 2.63" (67 mm). This makes the CMA330 a clean solution for flat-ceiling projector mounts that require cable pass-through. The plate is part of the Chief CMS ceiling mount accessory family. For extension columns and compatible projector mounts, browse the Chief collection.
Key Features
- Integrated cable routing — Routes projector cables through the column and out the top of the ceiling plate.
- 8-inch square plate — Includes an 8" (203 mm) square ceiling plate with a 1.75" (44 mm) high offset.
- Flat-ceiling cable exit — The offset provides a cable exit when mounting to a flat ceiling surface.
- 1.5-inch NPT connection — Attaches to a 1.5" NPT threaded extension column.
- Compact profile — Overall height is 2.63" (67 mm).
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Chief (Legrand AV) |
| Model / SKU | CMA330 |
| Type | Offset fixed ceiling plate |
| Plate Size | 8" (203 mm) square |
| Offset Height | 1.75" (44 mm) |
| Overall Height | 2.63" (67 mm) |
| Column Thread | 1.5" NPT |
