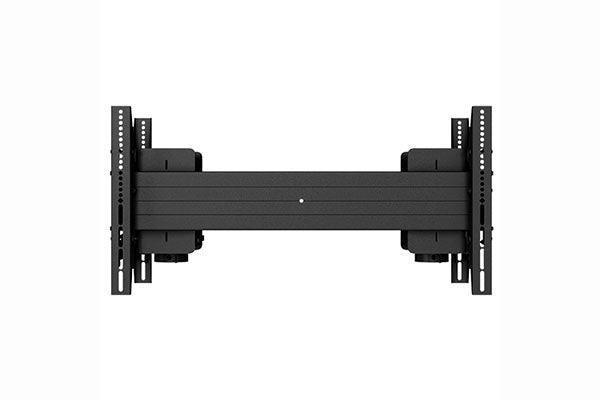

Chief Odm Xfp Ceiling B2B Mount - OXCB1U
Product Overview
The Chief OXCB1U is an outdoor ceiling and pedestal display mount engineered for harsh exterior environments, including rain, humidity, ocean air, sun exposure, and high winds. It supports a single display in either a ceiling-mounted or floor-mounted (pedestal) configuration, making it suitable for outdoor digital signage and wayfinding. The weatherproof construction meets UL 2442 Part 2 for outdoor use, and a set-point tilt range removes guesswork when aligning multiple displays. It is a durable commercial-grade solution for stadiums, transit hubs, drive-throughs, and outdoor public spaces.
Product Description
The OXCB1U is built to withstand rain, humidity, ocean air, sun exposure, and high winds, with corrosion-resistant paint, UV-rated plastics, and stainless-steel hardware. The weatherproof design meets UL 2442 Part 2 as suitable for outdoor use, and the mount is wind-compatible to a 2000 ft-lbs maximum moment force, a figure used in engineering calculations to confirm a wide range of install configurations meet local safety requirements. The system ships in three pieces — the mount, column, and plate — for better customization to the specific installation, and the four-step installation process keeps each piece separate for a safer, more manageable lifting load. A tilt range of +7.6 to -20 degrees with set locking points eliminates guesswork when adjusting multiple displays, and the unit can be ceiling or floor mounted. A universal interface fits most indoor and outdoor displays up to an 800 x 400 mm maximum VESA pattern. Contact Legrand AV Customer Care or Creation Networks for additional configuration support. Browse comparable Chief mounting solutions in the Chief collection.
Key Features
- Weatherproof Design — Meets UL 2442 Part 2 for outdoor use with corrosion-resistant paint, UV-rated plastics, and stainless-steel hardware.
- Wind Compatible — Rated to a 2000 ft-lbs maximum moment force for use in engineering calculations across varied install configurations.
- Three-Piece System — Separate mount, column, and plate allow customization to the specific installation.
- Safer Installation — The four-step process keeps each piece separate for a more manageable lifting load.
- Set-Point Tilt — A +7.6 to -20 degree tilt range with locking points eliminates guesswork when aligning multiple displays.
- Ceiling or Floor Mount — The mount supports both ceiling and floor (pedestal) configurations.
- Universal Interface — Fits most indoor and outdoor displays up to an 800 x 400 mm maximum VESA pattern.
Typical Applications
- Government space — Exterior information and wayfinding displays at civic and transit facilities.
- Commercial meeting space — Outdoor signage at corporate campuses and entrances.
- Broadcast studio — Outdoor monitor mounting for on-location production environments.
- Multi-purpose room — Covered outdoor areas that require durable display mounting.
Technical Specifications
| Model | OXCB1U |
| Type | Outdoor ceiling and pedestal display mount |
| Weather Rating | UL 2442 Part 2 – Suitable for Outdoor Use |
| Materials | Corrosion-resistant paint, UV-rated plastics, stainless-steel hardware |
| Wind Rating | 2000 ft-lbs maximum moment force |
| Tilt Range | +7.6° to -20° with set locking points |
| Max VESA Pattern | 800 x 400 mm |
| Mounting | Ceiling or floor (pedestal) |
| System Components | Mount, column, plate (three pieces) |
Frequently Asked Questions
Q: Is the OXCB1U rated for outdoor use?
Yes. The weatherproof design meets UL 2442 Part 2 for outdoor use and uses corrosion-resistant paint, UV-rated plastics, and stainless-steel hardware to withstand rain, humidity, ocean air, sun, and high winds.
Q: Can it be ceiling or floor mounted?
Both. The mount supports ceiling installation and floor (pedestal) installation using the included three-piece mount, column, and plate system.
Q: What displays does it fit?
The universal interface fits most indoor and outdoor displays up to an 800 x 400 mm maximum VESA pattern.
Q: How does the tilt adjustment work?
The +7.6 to -20 degree tilt range uses set locking points so multiple displays can be aligned consistently without guesswork.
Q: What does the wind rating mean for my install?
The 2000 ft-lbs maximum moment force is used in engineering calculations to confirm that a given install configuration meets local safety requirements. Contact Creation Networks or Legrand AV Customer Care for support.
Q: What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
