Chief Odm Lfp Ceiling Single Mount - OLCM1U

Product Overview

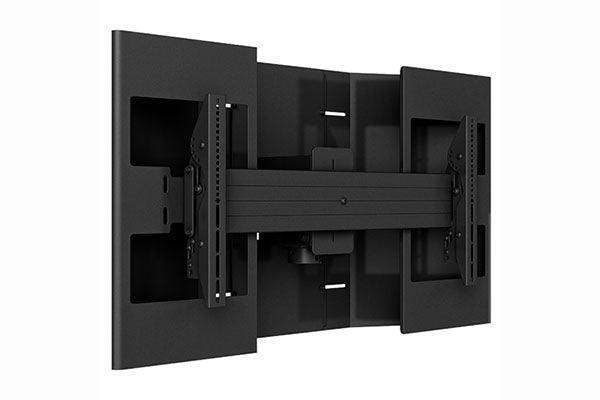

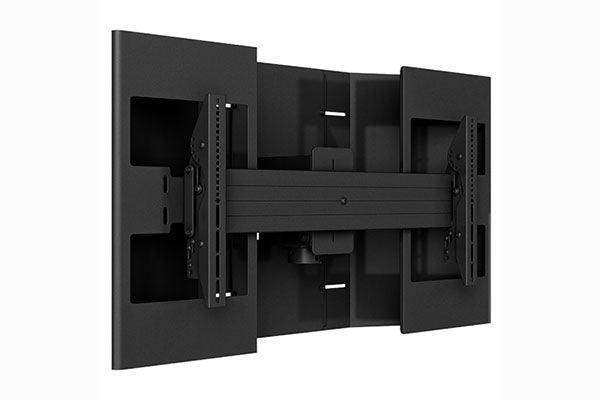

The Chief OLCM1U is an outdoor single-display ceiling and pedestal mount engineered for digital signage in exposed commercial environments. Built to withstand rain, humidity, salt air, sun, and high winds, it includes a wind deflector to protect displays that may not be rated for wind exposure. It can be ceiling-mounted or floor/pedestal-mounted to suit the installation.

Product Description

The OLCM1U outdoor ceiling and pedestal mount is built to withstand rain, humidity, ocean air, sun exposure, and high winds. It is wind-compatible to a 2000 ft-lbs maximum moment force, a figure used in engineering calculations to confirm that a wide range of installation configurations meet local safety requirements; contact Legrand AV Customer Care for additional guidance on a specific site. An included wind deflector provides an additional layer of defense to protect technology that may not be designed for wind exposure. The weatherproof design meets UL 2442 Part 2 for outdoor use, with corrosion-resistant paint, UV-rated plastics, and stainless-steel hardware. The system ships in three pieces — the mount, column, and plate — for better customization to the installation requirements, and the four-step installation process keeps each piece separate for a safer, more manageable lifting load. A tilt range of +7.6 to -20 degrees uses set locking points to eliminate guesswork when adjusting multiple displays. The universal interface fits most indoor and outdoor displays up to an 800 x 400mm maximum VESA pattern, and the mount can be installed from the ceiling or floor-mounted on a pedestal.

Key Features

• Weatherproof construction — Meets UL 2442 Part 2 for outdoor use with corrosion-resistant paint, UV-rated plastics, and stainless-steel hardware.
• Wind-rated design — Wind-compatible to a 2000 ft-lbs maximum moment force for engineered outdoor installations.
• Included wind deflector — Adds a layer of defense to protect displays that may not be designed for wind exposure.
• Three-piece system — Separate mount, column, and plate allow customization to the specific installation.
• Four-step installation — Keeping each piece separate provides a safer, more manageable lifting load.
• Set-point tilt — A +7.6 to -20 degree tilt range with locking points eliminates guesswork when aligning displays.
• Universal display interface — Fits most indoor and outdoor displays up to an 800 x 400mm maximum VESA pattern.
• Ceiling or pedestal mounting — The mount can be installed from the ceiling or floor-mounted on a pedestal.

Typical Applications

• Outdoor commercial meeting space and campus digital signage
• Government space wayfinding and information displays
• Multi-purpose room and transit-area signage
• House of worship outdoor campus messaging

Technical Specifications

Frequently Asked Questions

Is this mount rated for outdoor use?
Yes. The OLCM1U meets UL 2442 Part 2 for outdoor use and is built with corrosion-resistant paint, UV-rated plastics, and stainless-steel hardware to withstand rain, humidity, salt air, sun, and wind.

What does the wind deflector do?
The included wind deflector adds an extra layer of defense to protect displays that may not be designed for direct wind exposure.

What displays does it support?
The universal interface fits most indoor and outdoor single displays up to an 800 x 400mm maximum VESA pattern.

Can it be floor-mounted instead of ceiling-mounted?
Yes. The OLCM1U can be installed from the ceiling or floor-mounted on a pedestal, and ships as three separate pieces for installation flexibility.

How is wind load handled?
The mount is wind-compatible to a 2000 ft-lbs maximum moment force, used in engineering calculations to confirm a configuration meets local safety requirements. Contact Legrand AV Customer Care for site-specific guidance.

What warranty applies?
This Chief mount is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
