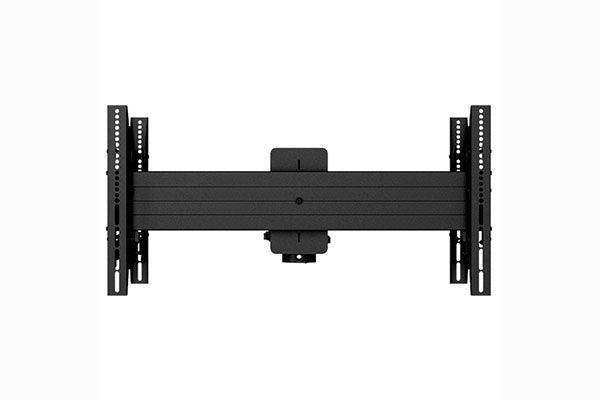

Chief Odm Lfp Ceiling B2B Mount - OLCB1U

Product Overview

The Chief OLCB1U is an outdoor back-to-back ceiling and pedestal mount engineered for dual-display digital signage in exposed commercial environments. Built to withstand rain, humidity, salt air, sun, and high winds, it carries displays in two directions from a single column for high-traffic outdoor spaces. It can be ceiling-mounted or floor/pedestal-mounted to suit the installation.

Product Description

The OLCB1U outdoor ceiling and pedestal mount is built to withstand rain, humidity, ocean air, sun exposure, and high winds. It is wind-compatible to a 2000 ft-lbs maximum moment force, a figure used in engineering calculations to confirm that a wide range of installation configurations meet local safety requirements; contact Legrand AV Customer Care for additional guidance on a specific site. The weatherproof design meets UL 2442 Part 2 for outdoor use, with corrosion-resistant paint, UV-rated plastics, and stainless-steel hardware. The system ships in three pieces — the mount, column, and plate — for better customization to the installation requirements, and the four-step installation process keeps each piece separate for a safer, more manageable lifting load. A tilt range of +7.6 to -20 degrees uses set locking points to eliminate guesswork when adjusting multiple displays. The universal interface fits most indoor and outdoor displays up to an 800 x 400mm maximum VESA pattern. The back-to-back configuration presents content in two directions from a single mounting point, making it well suited to outdoor digital signage and wayfinding.

Key Features

• Weatherproof construction — Meets UL 2442 Part 2 for outdoor use with corrosion-resistant paint, UV-rated plastics, and stainless-steel hardware.
• Wind-rated design — Wind-compatible to a 2000 ft-lbs maximum moment force for engineered outdoor installations.
• Three-piece system — Separate mount, column, and plate allow customization to the specific installation.
• Four-step installation — Keeping each piece separate provides a safer, more manageable lifting load.
• Set-point tilt — A +7.6 to -20 degree tilt range with locking points eliminates guesswork when aligning multiple displays.
• Universal display interface — Fits most indoor and outdoor displays up to an 800 x 400mm maximum VESA pattern.
• Ceiling or pedestal mounting — The mount can be installed from the ceiling or floor-mounted on a pedestal.

Typical Applications

• Outdoor commercial meeting space and campus digital signage
• Government space wayfinding and information displays
• Multi-purpose room and transit-area dual-sided signage
• House of worship outdoor campus messaging

Technical Specifications

Frequently Asked Questions

Is this mount rated for outdoor use?
Yes. The OLCB1U meets UL 2442 Part 2 for outdoor use and is built with corrosion-resistant paint, UV-rated plastics, and stainless-steel hardware to withstand rain, humidity, salt air, sun, and wind.

What displays does it support?
The universal interface fits most indoor and outdoor displays up to an 800 x 400mm maximum VESA pattern, in a back-to-back dual-display configuration.

How is wind load handled?
The mount is wind-compatible to a 2000 ft-lbs maximum moment force, used in engineering calculations to confirm a configuration meets local safety requirements. Contact Legrand AV Customer Care for site-specific guidance.

Can it be floor-mounted instead of ceiling-mounted?
Yes. The OLCB1U can be installed from the ceiling or floor-mounted on a pedestal, and ships as three separate pieces for installation flexibility.

How is tilt adjusted across multiple displays?
A +7.6 to -20 degree tilt range with set locking points lets installers match the tilt of multiple displays without guesswork.

What warranty applies?
This Chief mount is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.

Compare related Chief outdoor and ceiling mounts: OLCM1U Outdoor Single Mount. Browse the full Chief collection at Creation Networks.
