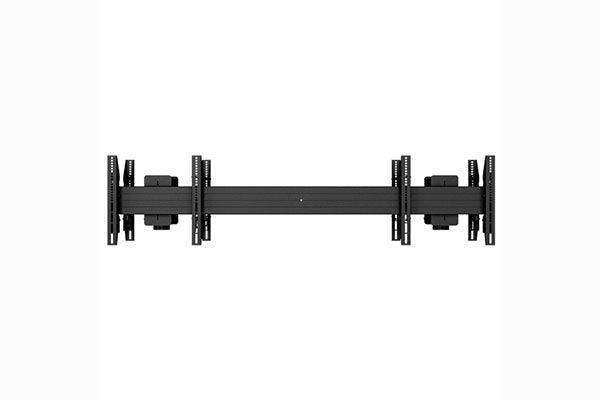

Chief Odm Lfp Ceiling 2X1 B2B Mount - OLCB2X1U
Chief Odm Lfp Ceiling 2X1 B2B Mount - OLCB2X1U is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Chief Odm Lfp Ceiling 2X1 B2B Mount - OLCB2X1U
Product Overview
The Chief OLCB2X1U is an outdoor-rated ceiling and pedestal mount that supports a 2x1 back-to-back display configuration for weatherproof commercial digital signage. This outdoor display mount is built to withstand rain, humidity, ocean air, sun exposure, and high winds, making it suitable for exterior wayfinding, transit, and quick-service environments. It can be ceiling or floor mounted, giving integrators flexibility across exterior install conditions. The mount accepts most indoor and outdoor displays up to an 800 x 400 mm VESA pattern.
Product Description
The OLCB2X1U outdoor ceiling and pedestal mount is engineered for demanding exterior installations where weather and wind loads must be accounted for. It is wind-compatible to a 2000 ft-lbs maximum moment force, a value used in engineering calculations to confirm that a wide range of install configurations meets local safety requirements; contact Legrand | AV Customer Care for project-specific guidance. A tilt range of +7.6 to -20 degrees with set locking points eliminates guesswork when matching the angle across multiple displays. The weatherproof design meets UL 2442 Part 2 for outdoor use, with corrosion-resistant paint, UV-rated plastics, and stainless-steel hardware to resist degradation in coastal and high-exposure sites. The system arrives in three pieces — the mount, column, and plate — so it can be customized to the installation and lifted in safer, more manageable loads through a four-step process. A universal interface fits most indoor and outdoor displays with up to an 800 x 400 mm maximum VESA pattern. The 2x1 back-to-back layout presents two displays facing opposite directions from a single ceiling or pedestal point. Browse comparable Chief mounting solutions in the Chief collection.
Key Features
- Outdoor Weatherproof Design — Meets UL 2442 Part 2 for outdoor use with corrosion-resistant paint, UV-rated plastics, and stainless-steel hardware.
- Wind-Compatible Engineering — Rated to a 2000 ft-lbs maximum moment force to support engineering calculations for local safety requirements.
- Three-Piece System — Separate mount, column, and plate allow customization to the installation and safer, more manageable lifting loads.
- Four-Step Installation — The staged process keeps each component separate for a safer, more manageable install.
- Set Tilt Locking Points — A tilt range of +7.6 to -20 degrees with set locking points removes guesswork when aligning multiple displays.
- Ceiling or Floor Mountable — Can be installed from the ceiling or floor-mounted on a pedestal to fit the site.
- Universal Display Interface — Fits most indoor and outdoor displays up to an 800 x 400 mm maximum VESA pattern.
Typical Applications
- Government Space — Exterior wayfinding and public information displays in civic and transit environments.
- Commercial Meeting Space — Covered outdoor entrances and concourses requiring weatherproof signage.
- Multi-Purpose Room — Indoor or outdoor double-sided display points where viewers approach from both directions.
Technical Specifications
| Model | OLCB2X1U |
| Configuration | 2x1 Back-to-Back |
| Mount Type | Outdoor ceiling / pedestal (floor) |
| Environmental Rating | UL 2442 Part 2 (outdoor use) |
| Wind Rating | 2000 ft-lbs maximum moment force |
| Tilt Range | +7.6° to -20° with set locking points |
| Max VESA Pattern | 800 x 400 mm |
| Materials | Corrosion-resistant paint, UV-rated plastics, stainless-steel hardware |
Frequently Asked Questions
Is the OLCB2X1U rated for outdoor use?
Yes. The weatherproof design meets UL 2442 Part 2 for outdoor use, with corrosion-resistant paint, UV-rated plastics, and stainless-steel hardware.
What displays does it support?
A universal interface fits most indoor and outdoor displays with up to an 800 x 400 mm maximum VESA pattern.
Can it be floor mounted instead of ceiling mounted?
Yes. The mount can be installed from the ceiling or floor-mounted on a pedestal to suit the site.
How is wind load handled?
The mount is rated to a 2000 ft-lbs maximum moment force for use in engineering calculations. Contact Legrand | AV Customer Care or Creation Networks for project-specific configuration support.
How is installation managed for safety?
The three-piece system (mount, column, plate) and four-step process keep each component separate for safer, more manageable lifting loads.
What warranty applies?
This mount is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support details.
