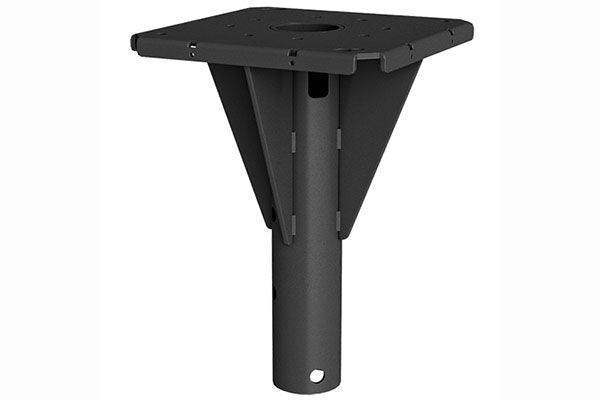

Chief Oda Concrete Ceiling Plate - ODA330B
Product Overview
The Chief ODA330B is a weatherproof concrete ceiling plate for outdoor flat panel and digital signage installations. It is designed to work with Chief OLC outdoor ceiling and pedestal mounts, anchoring the mounting column to poured or pre-cast concrete. Built to withstand rain, humidity, ocean air, sun exposure, and high winds, the plate is rated for outdoor use and suits commercial digital signage in exposed environments.
Product Description
The ODA330B separates the ceiling plate from the mounting column to make outdoor installation more manageable.
Because the plate ships separately from the column, the system is easier to lift into place during installation. The plate is fastened using two oversized holes, which lets the remaining holes serve as a drilling template for precise anchor placement. It can be installed in ceiling or floor cement, supporting both overhead and pedestal configurations. For poured concrete, it requires only a 4-inch minimum anchor embedment with a 5000 psi minimum compressive strength; for pre-cast concrete, it requires only a 2-inch minimum embedment with a 6000 psi minimum compressive strength. An access slot allows electrical conduit to be routed into the column for clean power and signal delivery. The weatherproof design meets UL 2442 Part 2 for outdoor use, with corrosion-resistant paint, UV-rated plastics, and stainless-steel hardware. The plate works only with Chief outdoor-rated mounts and plates, ensuring a matched, durable outdoor system.
Key Features
- Weatherproof outdoor design — Meets UL 2442 Part 2 for outdoor use with corrosion-resistant paint, UV-rated plastics, and stainless-steel hardware.
- OLC mount compatibility — Works with Chief OLC outdoor ceiling and pedestal mounts.
- Separate plate design — Ships separately from the column to make lifting into place more manageable.
- Drilling template — Fastens with two oversized holes, using the remaining holes as a drilling template.
- Ceiling or floor cement — Can be installed in ceiling or floor concrete for overhead or pedestal use.
- Concrete anchoring specs — Poured concrete needs 4" minimum embedment at 5000 psi; pre-cast needs 2" at 6000 psi.
- Conduit access slot — Routes electrical conduit into the column for clean power and signal.
Typical Applications
- Outdoor commercial digital signage in exposed environments
- Coastal and high-wind installations requiring corrosion resistance
- Government space and transit outdoor display mounting
- Commercial meeting space and campus outdoor signage
Technical Specifications
| Type | Outdoor concrete ceiling/floor plate |
| Outdoor Rating | UL 2442 Part 2 – Suitable for Outdoor Use |
| Materials | Corrosion-resistant paint, UV-rated plastics, stainless-steel hardware |
| Poured Concrete Anchoring | 4" minimum embedment, 5000 psi minimum compressive strength |
| Pre-Cast Concrete Anchoring | 2" minimum embedment, 6000 psi minimum compressive strength |
| Compatibility | Chief outdoor-rated mounts and plates (OLC series) |
| Conduit | Access slot for routing electrical conduit into column |
Frequently Asked Questions
What mounts is the ODA330B compatible with?
It works with Chief OLC outdoor ceiling and pedestal mounts and is intended only for Chief outdoor-rated mounts and plates.
Can it be installed in the floor as well as the ceiling?
Yes. It can be installed in ceiling or floor cement, supporting both overhead and pedestal configurations.
What are the concrete requirements?
Poured concrete requires a 4-inch minimum anchor embedment at 5000 psi, and pre-cast concrete requires a 2-inch minimum embedment at 6000 psi.
Is it suitable for coastal or high-wind locations?
Yes. It meets UL 2442 Part 2 for outdoor use and is built with corrosion-resistant paint, UV-rated plastics, and stainless-steel hardware to withstand rain, humidity, ocean air, sun, and high winds.
How are cables routed?
An access slot allows electrical conduit to be routed into the column. Browse more Chief AV solutions for compatible outdoor mounts.
What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
