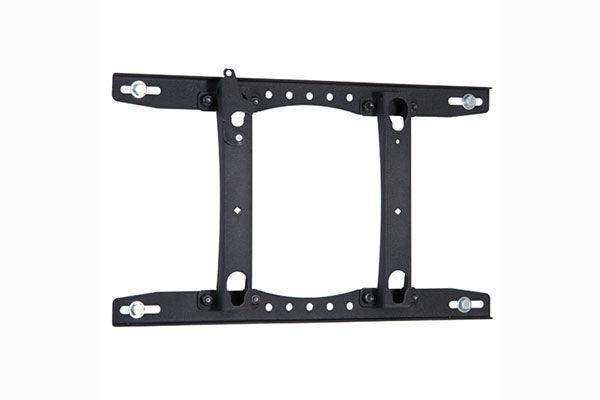

Chief Mid Size Fixed Wall Mount - MSR6000
Chief Mid Size Fixed Wall Mount - MSR6000 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Chief Mid Size Fixed Wall Mount - MSR6000
Product Overview
The Chief MSR6000 is a low-profile, fixed wall mount for mid-size flat panel displays in commercial AV installations. It is suited to conference rooms, huddle rooms, and digital signage where a slim, secure wall presentation is required. The mount requires a custom or universal MSB interface bracket, purchased separately, and is available in limited quantities.
Product Description
The MSR6000 is an ultra low-profile fixed wall mount designed to hold a mid-size flat panel display close to the wall. Integrated lateral shift provides up to 4" of adjustment on a single stud and 1.5" on 16" centers, allowing the screen to be centered after the wall plate is installed. Chief's Q-Latch mounting system simplifies installation and provides quick connect and disconnect of the display. The screen can be installed in portrait or landscape orientation, and the PAC400 or MAC400 accessory can be used to rotate the screen without removing it. An expanded wall plate opening provides cable access and reduces the risk of electrical outlet interference, while cables can also be routed through the sides of the mount. Multiple mounting options include single-stud placement at five positions and 16" center stud mounting, giving installers flexibility on different wall constructions. Adding a padlock provides integrated security in public spaces. This product requires a custom or universal MSB interface bracket purchased separately, and it has been succeeded by the MSMU and MTAPU series. Browse the full Chief collection for current mid-size mounts and interface brackets.
Key Features
- Ultra low-profile design — Holds mid-size displays close to the wall for a clean presentation.
- Integrated lateral shift — Provides up to 4" of shift on a single stud and 1.5" on 16" centers for centering.
- Q-Latch mounting system — Simplifies installation with quick connect and disconnect of the display.
- Portrait or landscape — Supports either orientation, with PAC400 or MAC400 to rotate without removing the screen.
- Cable access — Expanded wall plate opening and side routing provide cable access and reduce outlet interference.
- Flexible stud mounting — Offers single-stud mounting at five positions and 16" center stud mounting.
- Padlock security — Integrated security is available with the addition of a padlock.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | MSR6000 |
| Mount Type | Low-profile fixed wall mount |
| Display Class | Mid-size flat panel |
| Lateral Shift | Up to 4" (single stud); 1.5" (16" centers) |
| Orientation | Portrait or landscape (PAC400/MAC400 to rotate) |
| Mounting System | Q-Latch |
| Interface Bracket | Custom or universal MSB (sold separately) |
| Security | Padlock-ready (padlock not included) |
