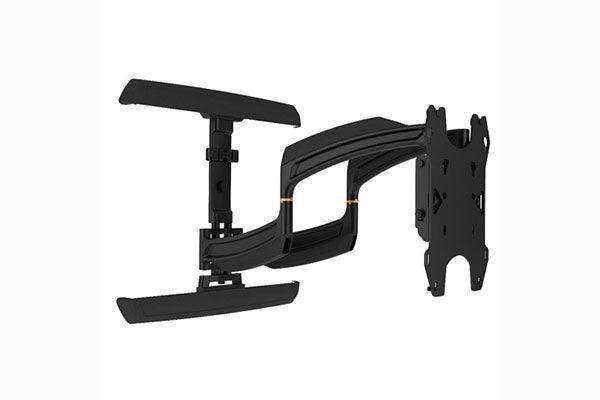

Chief Medium 25" Extension Swing Arms - TS325TU
Product Overview
The Chief TS325TU is a medium full-motion wall display mount with a 25-inch extension arm for flat panel TVs from 32 to 65 inches. It combines an ultra-low 1.8-inch profile when collapsed with a full 25-inch extension reach and Centris fingertip tilt technology for precise viewing angle adjustment in conference rooms and commercial display installations. The Centerless Lateral Shift system provides up to 16 inches of post-installation centering adjustment without removing the display from the wall. For installations requiring in-wall cable routing, the optional TA500 accessory enables in-wall cable management when purchased with this mount.
Product Description
The Chief TS325TU full-motion swing arm wall mount delivers the extension reach and adjustability needed for commercial conference room and presentation space display installations. When fully retracted, the mount collapses to just 1.8 inches (46 mm) from the wall surface, providing a low-profile appearance that works with LED, LCD, and plasma flat panel displays. Extended out to its full 25-inch (635 mm) reach, it gives users flexible viewing angles from multiple seating positions around a room. Centris Technology provides up to 15 degrees of effortless fingertip tilt adjustment for optimal vertical viewing angles, and the Centerless Lateral Shift allows up to 16 inches (406 mm) of horizontal adjustment after installation — a feature that eliminates the need to re-drill wall anchors if display placement needs fine-tuning. Post-installation height adjustment of up to 1 inch (25 mm) allows final alignment without structural rework. Integrated tool-free cable covers and a wide-open wall plate simplify cable routing for power and signal cables. When the optional TA500 in-wall box is purchased alongside the mount, full in-wall cable routing is possible for a completely clean installation. Explore additional Chief display mounts at creationnetworks.net/collections/chief.
Key Features
- Ultra Low Profile — 1.8" (46 mm) Collapsed — Retracts to a sleek 1.8-inch profile, compatible with LED, LCD, and plasma flat panel displays.
- 25-Inch (635 mm) Full Extension — Extends up to 25 inches for flexible viewing from multiple positions in a room.
- Centris Technology Fingertip Tilt — Provides up to 15 degrees of effortless fingertip tilt for optimal vertical viewing angle adjustment.
- Centerless Lateral Shift — 16" (406 mm) — Post-installation lateral shift allows up to 16 inches of horizontal centering without re-drilling wall anchors.
- Post-Installation Height Adjustment — 1" (25 mm) — Fine-tune vertical screen placement after installation for perfect alignment.
- Integrated Cable Management — Enclosed tool-free cable covers and a wide-open wall plate route power and signal cables cleanly.
- Optional In-Wall Cable Routing — Compatible with TA500 in-wall accessory (sold separately) for a fully concealed cable installation.
- Single-Person Installation — Mounts the top rail first, then slides the display assembly onto it for straightforward one-person setup.
Typical Applications
- Conference room and boardroom flat panel display wall mounts
- Corporate lobby and common area commercial display installations
- Classroom and training room interactive flat panel wall mounts
- Digital signage deployments requiring adjustable viewing angles
Technical Specifications
| Specification | Value |
|---|---|
| Model | TS325TU |
| Compatible Display Size | 32" – 65" |
| Profile (Collapsed) | 1.8" (46 mm) |
| Extension Reach | Up to 25" (635 mm) |
| Tilt Range | Up to 15° (Centris Technology) |
| Lateral Shift | Up to 16" (406 mm) (Centerless) |
| Post-Install Height Adjustment | 1" (25 mm) |
| Cable Management | Integrated, tool-free cable covers |
| In-Wall Option | Compatible with TA500 accessory (sold separately) |
Frequently Asked Questions
What display sizes does the TS325TU support?
The TS325TU is rated for flat panel displays from 32 to 65 inches, including LED, LCD, and plasma screens.
How far does the arm extend from the wall?
The arm extends up to 25 inches (635 mm) from the wall when fully deployed.
What is the Centerless Lateral Shift feature?
Centerless Lateral Shift allows up to 16 inches of horizontal adjustment after the display is mounted, so you can fine-tune centering without removing the display or re-drilling wall anchors.
Can cables be routed inside the wall with this mount?
Yes, when the optional TA500 in-wall accessory is purchased alongside the TS325TU, in-wall cable routing is possible for a clean, cord-free installation.
What warranty applies to this product?
The TS325TU is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for specific warranty terms.
