Chief Led Unilumin U-Slim Middle 2000 Mm - TILD1X2US-M
Product Overview

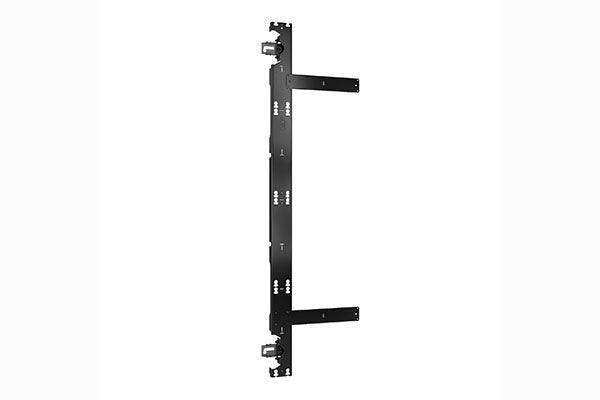

The Chief TILD1X2US-M is the middle component of the TiLED LED video wall mounting system, sized at 2000 mm for Unilumin USLIM Series dvLED displays. It joins left and right wall-mounting components in a modular system that builds a wide range of video wall configurations. Essential X, Y, and Z-axis adjustments allow precise positioning and cabinet-to-cabinet alignment for a flat, seamless wall. As a standard, off-the-shelf solution, it ships without custom lead times or project registration.
Product Description
The TiLED direct view LED mounting system is engineered to make dvLED video wall installation predictable and repeatable. The TILD1X2US-M is the 2000 mm middle mounting component and is used for the interior columns of a Unilumin USLIM Series video wall. Because the system is modular—left, middle, and right components available in 500 mm, 1000 mm, and 2000 mm heights—integrators can mix and match parts to create a wide range of wall sizes. The three-axis adjustment is what makes the result clean: X-axis lateral shift enables precise LED positioning, Y-axis vertical shift delivers cabinet-to-cabinet alignment, and Z-axis plumb adjustment compensates for wall imperfections to achieve a flat mounting surface. Offset mounting slots ease installation and protect the LED sides from damaging friction. The depth range with the display installed is 5.37 to 6.12 inches (136 to 156 mm). Display hardware, mounting structure, vertical connectors, and side covers are sold separately. As an in-stock, standard solution, it ships without custom lead times. Complete the wall with the TILD1X2US-L left and TILD1X2US-R right components from the Chief collection.
Key Features
- X-axis adjustment — Lateral shift adjustments enable precise LED positioning.
- Y-axis adjustment — Vertical shift provides accurate cabinet-to-cabinet alignment.
- Z-axis adjustment — Plumb adjustments compensate for wall imperfections to achieve a flat mounting surface.
- Modular system — Left, middle, and right components in 500 mm, 1000 mm, and 2000 mm heights support the Unilumin USLIM Series.
- Offset mounting slots — Ease installation and protect the LED sides from damaging friction.
- In-stock standard solution — Stockable and ready to ship with no custom lead times.
Typical Applications
- Broadcast studio
- Auditorium
- Commercial meeting space
- Government space
- House of worship
Technical Specifications
| Specification | Detail |
|---|---|
| Type | TiLED dvLED video wall mount, middle component |
| Height | 2000 mm |
| Display compatibility | Unilumin USLIM & USLIM II Series; KSLIM 2.9 / 3.9 |
| Alignment | X, Y, and Z-axis adjustment |
| Depth with display | 5.37–6.12" (136–156 mm) |
| Sold separately | Display hardware, mounting structure, vertical connectors, side covers |
| SKU | TILD1X2US-M |
Frequently Asked Questions
Which displays is this mount compatible with?
It supports the Unilumin USLIM and USLIM II Series, plus KSLIM 2.9 and 3.9 dvLED displays.
What does the middle component do?
The TILD1X2US-M mounts the interior columns of a USLIM Series video wall. Pair it with left and right components to complete the wall.
How is alignment achieved?
X-axis lateral, Y-axis vertical, and Z-axis plumb adjustments allow precise positioning, cabinet-to-cabinet alignment, and a flat mounting surface.
What is not included?
Display hardware, mounting structure, vertical connectors, and side covers are sold separately.
Are there lead times?
No. This is a standard, in-stock solution that ships without custom lead times or project registration.
What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for warranty terms and support.
