Chief Led Philips Bdl 3 High - TIL1X3PH
Product Overview

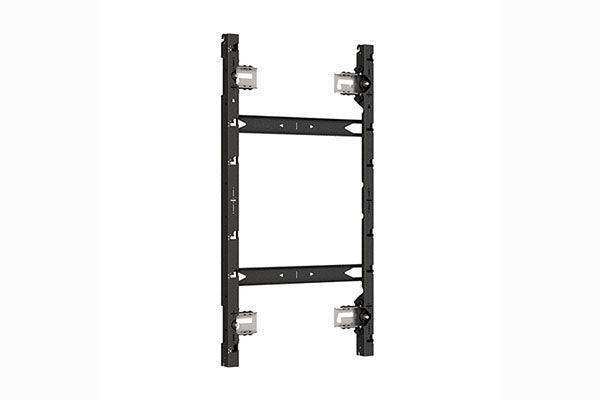

The Chief TIL1X3PH TiLED LED video wall mount stacks Philips 27BDL 6000 and 9000 series direct view LED displays into a continuous vertical column. It is designed for commercial AV installations that require precise, repeatable cabinet alignment. The modular platform expands vertically and horizontally to fit the wall and the content. This dvLED video wall mount ships off the shelf with no custom lead times or project registration.
Product Description
The TIL1X3PH is part of Chief's TiLED direct view LED mounting system, matched specifically to Philips 27BDL 6000 and 9000 series cabinets.
The mount attaches to the top, bottom, and sides of adjacent units, so the same hardware supports a wide range of video wall configurations. X-axis lateral shift adjustments enable precise LED positioning across the wall. Y-axis vertical shift adjustments deliver accurate cabinet-to-cabinet alignment. Z-axis plumb adjustments compensate for imperfections in the wall to achieve a perfectly flat mounting surface. Offset mounting slots protect the LED edges from damaging friction as cabinets are set in place. With the display installed, the assembly maintains a low-profile depth of 4.05 to 4.80 inches. As a standard, stockable solution, the TIL1X3PH is straightforward to specify, order, and install on tight project timelines.
Key Features
- X-axis lateral shift — Enables precise LED positioning across the video wall.
- Y-axis vertical shift — Provides accurate cabinet-to-cabinet alignment.
- Z-axis plumb adjustment — Compensates for wall imperfections to achieve a flat mounting surface.
- Modular architecture — Attaches to the top, bottom, and sides of other mounts to support varied designs.
- Offset mounting slots — Protect LED sides from damaging friction during installation.
- Low-profile depth — Holds a 4.05 to 4.80 inch (103 to 122 mm) depth range with the display installed.
- Stockable solution — Standard off-the-shelf product ships with no custom lead times or project registration.
Typical Applications
- Broadcast studio set walls and backdrops
- Corporate lobby and all-hands room video walls
- Auditorium and house of worship stage displays
- Boardroom and conference room presentation walls
Technical Specifications
| Configuration | Vertically stacked video wall mount (1x3) |
| Compatible Series | Philips 27BDL 6000 and 9000 series (27BDL6112L–9015L/00) |
| Mounting Depth (with display) | 4.05"–4.80" (103–122 mm) |
| Adjustments | X-axis lateral, Y-axis vertical, Z-axis plumb |
| Installation | Offset mounting slots; modular attachment |
Frequently Asked Questions
Which displays is the TIL1X3PH compatible with?
It is designed for Philips 27BDL 6000 and 9000 series cabinets, including 27BDL6112L/00 through 27BDL9015L/00 models.
How is alignment handled during installation?
X-axis lateral, Y-axis vertical, and Z-axis plumb adjustments let the installer fine-tune cabinet-to-cabinet positioning for a flat, seamless image.
Can it be combined into larger video walls?
Yes. The modular mount attaches to the top, bottom, and sides of adjacent TiLED mounts to support a wide range of array sizes.
Does this require a custom lead time or project registration?
No. It is a standard, stockable solution that ships off the shelf, making it easy to specify and order for time-sensitive projects.
How thick is the finished installation?
With the display mounted, the assembly holds a low-profile depth range of 4.05 to 4.80 inches (103 to 122 mm). Browse more Chief mounting solutions for complementary hardware.
What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
