Chief Led Mount 1X5 Upanel S & Barco Xt - TIL1X5UU
Product Overview

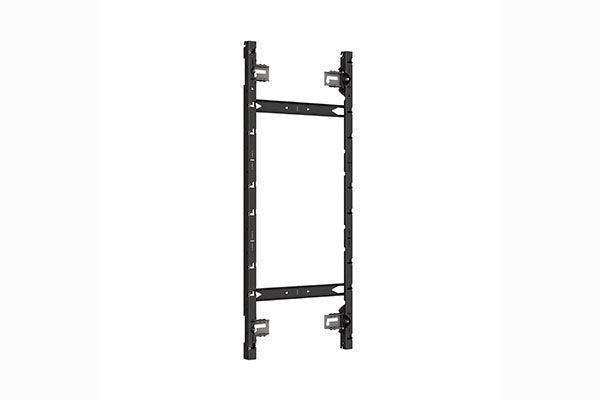

The Chief TIL1X5UU is a TiLED dvLED video wall mount built specifically for the Unilumin UpanelS and Barco XT Series, supporting five vertically stacked LED displays. Its modular design connects to the sides, top, and bottom of other mounts to create custom video wall configurations of nearly any size. As a standard, off-the-shelf solution, it ships without custom lead time or project registration, making it a fast option for dvLED video wall installations.
Product Description
The TIL1X5UU TiLED LED video wall mounting system is engineered for the Unilumin UpanelS and Barco XT Series dvLED cabinets, mounting five displays in a vertical 1 x 5 column. Chief's modular approach lets integrators attach mounts to the top, bottom, and sides of adjacent units to build endless video wall layouts. Precise X-axis lateral, Y-axis vertical, and Z-axis plumb adjustments enable exact LED positioning, cabinet-to-cabinet alignment, and compensation for wall imperfections to achieve a perfectly flat mounting surface. Offset mounting slots ease installation and protect the sensitive LED sides from damaging friction. The depth range with display is between 3.85 and 4.85 inches (98-123 mm) for a low-profile result. Because the TIL1X5UU is a standard, stockable solution set, it is ready to ship with no custom lead times, helping AV integrators keep dvLED video wall projects on schedule for broadcast studio, boardroom, and commercial signage environments.
Key Features
- Display-specific design — Built for Unilumin UpanelS and Barco XT Series, mounting 5 displays vertically.
- X-axis adjustment — Lateral shift enables precise LED positioning.
- Y-axis adjustment — Vertical shift provides cabinet-to-cabinet alignment.
- Z-axis plumb adjustment — Compensates for wall imperfections for a flat mounting surface.
- Modular design — Connects to sides, top, and bottom of other mounts for endless configurations.
- Offset mounting slots — Ease installation and protect LED sides from friction damage.
- Low-profile depth — 3.85 to 4.85 inches (98-123 mm) with display.
- Off-the-shelf availability — Stockable and ready to ship with no custom lead times.
Typical Applications
- dvLED video walls in broadcast studio environments
- Boardroom and conference room video walls
- Commercial meeting space and lobby digital signage
- Auditorium and government space displays
Technical Specifications
| Mount Type | TiLED dvLED video wall mount |
| Compatible Displays | Unilumin UpanelS, Barco XT Series |
| Configuration | 1 wide x 5 high (vertical stack) |
| Adjustments | X-axis, Y-axis, Z-axis (plumb) |
| Depth with Display | 3.85" - 4.85" (98 - 123 mm) |
| Design | Modular; connects on all sides |
| Availability | Off-the-shelf, no custom lead time |
| SKU | TIL1X5UU |
Frequently Asked Questions
Q: Which displays is the TIL1X5UU compatible with?
It is designed for the Unilumin UpanelS and Barco XT Series dvLED displays, mounting five vertically.
Q: Can I build a larger video wall with this mount?
Yes. The modular design connects to the sides, top, and bottom of other mounts to create endless video wall configurations.
Q: How precise is the alignment?
X-axis, Y-axis, and Z-axis plumb adjustments allow exact LED positioning and cabinet-to-cabinet alignment.
Q: Is there a custom lead time?
No. This is a standard, off-the-shelf solution that is stockable and ready to ship.
Q: How does the mount protect the LED cabinets during install?
Offset mounting slots ease installation and protect LED sides from damaging friction.
Q: What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
