Chief Led Mount 1X4 Upanel S & Barco Xt - TIL1X4UU

Product Overview

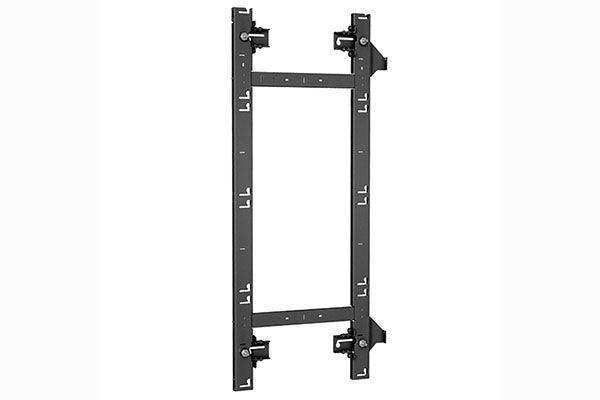

The Chief TIL1X4UU is a TiLED dvLED video wall mounting system designed to mount four vertically stacked LED displays from the Unilumin UpanelS and Barco XT Series. It is built for direct view LED video walls in commercial AV environments such as broadcast studios, auditoriums, and lobby signage. The modular design attaches to the top, bottom, and sides of other mounts to support a wide range of configurations. Variable X, Y, and Z-axis adjustments deliver precise positioning and alignment for a flat, seamless wall.

Product Description

The TiLED LED Video Wall Mounting System mounts four vertically stacked LED displays from the Unilumin UpanelS and Barco XT Series, so you stack displays to create one continuous video wall. Chief's modular design attaches to the top, bottom, and sides of other mounts to support a wide range of design configurations. Integrated plumb adjustment helps compensate for imperfections in the wall, and keyhole slots allow fast, easy mount installation. Offset mounting slots ease installation and protect LED sides from damaging friction. Once displays are in place, variable X, Y, and Z-axis adjustments enable precise positioning and alignment for a flat result, and the depth range with a display is between 3.85 and 4.85 inches (98 to 123 mm) for a low-profile finish. As a standard, off-the-shelf solution, the system is stockable and ready to ship with no custom lead times or project registration required. It is compatible with Unilumin Upanel0.9S, 1.2S, 1.5S, 1.9S, and 2.5S, and Barco XT0.9, XT1.2, XT1.5, XT1.9, XT1.2-E, XT1.5-E, XT1.9-E, XT2.5-E, XT1.9-HB, and XT2.5-HB displays. Browse the full Chief collection for compatible dvLED mounts and accessories.

Key Features

• 1x4 stacked dvLED — Mounts four vertically stacked LED displays into one continuous video wall.
• Modular design — Attaches to the top, bottom, and sides of other mounts for flexible configurations.
• Integrated plumb adjustment — Compensates for imperfections in the wall.
• X, Y, and Z-axis adjustment — Enables precise positioning and cabinet alignment for a flat result.
• Keyhole and offset slots — Speed installation and protect LED sides from damaging friction.
• Low-profile depth — Depth with display is 3.85 to 4.85 inches (98 to 123 mm).
• Stock-ready — A standard, off-the-shelf solution with no custom lead times or project registration.

Typical Applications

• Direct view LED video walls in broadcast studios
• Auditorium and commercial meeting space dvLED displays
• Lobby and government space digital signage
• House of worship and all-hands room video walls

Frequently Asked Questions

Q: Which displays does the TIL1X4UU support?
It supports Unilumin UpanelS (0.9S through 2.5S) and Barco XT Series displays, including XT0.9 through the XT-E and XT-HB variants listed above.

Q: How many displays does it hold?
It mounts four vertically stacked LED displays in a 1x4 configuration to form one continuous video wall.

Q: How is the video wall aligned?
Variable X, Y, and Z-axis adjustments plus integrated plumb adjustment allow precise positioning and a flat result.

Q: How deep does it sit with a display?
The depth range with a display is 3.85 to 4.85 inches (98 to 123 mm) for a low-profile finish.

Q: What is the lead time?
It is a standard, off-the-shelf solution that is stockable and ships with no custom lead times or project registration required.

Q: What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
