Chief Led Mount 1X3 Upanel S & Barco Xt - TIL1X3UU

Product Overview

The Chief TIL1X3UU TiLED LED video wall mount stacks three Unilumin UpanelS and Barco XT direct view LED displays into a single continuous 1x3 column. It is built for commercial AV installations that require precise, repeatable alignment across every cabinet. The modular design lets integrators expand the array vertically and horizontally to match the room. This dvLED video wall mount ships off the shelf with no custom lead times or project registration.

Product Description

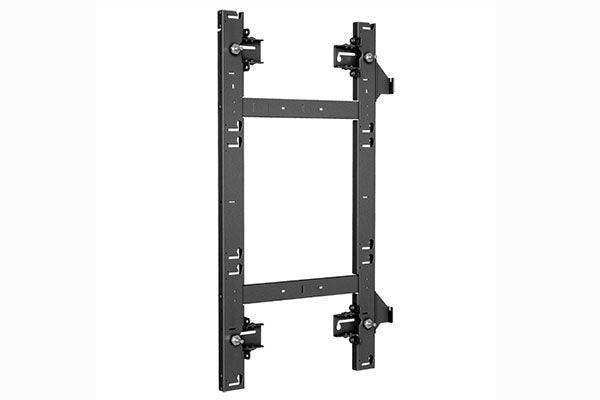

The TIL1X3UU is part of Chief's TiLED direct view LED mounting platform, engineered specifically for Unilumin UpanelS and Barco XT cabinets. The mount attaches to the top, bottom, and sides of adjacent units, so the same hardware supports a wide range of video wall configurations. Variable X, Y, and Z-axis adjustments allow integrators to dial in cabinet-to-cabinet positioning and achieve a flat, seam-free image. An integrated plumb adjustment compensates for imperfections in the wall surface. Keyhole slots speed up the initial mounting process during installation. Offset mounting slots protect the LED edges from damaging friction as cabinets are set in place. With the display installed, the assembly holds a low-profile depth of 3.85 to 4.85 inches. Because it is a standard, stockable solution, the TIL1X3UU is straightforward to specify, order, and deploy on tight project timelines.

Key Features

• Modular architecture — Attaches to the top, bottom, and sides of other mounts to support a wide range of video wall designs.
• Three-axis alignment — X, Y, and Z-axis adjustments deliver precise cabinet-to-cabinet positioning for a flat video wall.
• Integrated plumb adjustment — Compensates for imperfections in the wall to keep displays in a true plane.
• Keyhole mounting slots — Allow fast and easy mount installation.
• Offset mounting slots — Protect LED sides from damaging friction during installation.
• Low-profile depth — Holds a 3.85 to 4.85 inch (98 to 123 mm) depth range with the display installed.
• Stockable solution — Standard off-the-shelf product ships with no custom lead times or project registration.

Typical Applications

• Broadcast studio backdrops and set walls
• Corporate lobby and all-hands room video walls
• Auditorium and house of worship stage displays
• Conference room and boardroom presentation walls

Technical Specifications

Frequently Asked Questions

Which displays is the TIL1X3UU compatible with?
It is designed for Unilumin UpanelS fine-pitch cabinets (Upanel0.9S through 2.5S) and Barco XT series cabinets, including XT-E and XT-HB variants from XT0.9 through XT2.5.

How many displays does it hold?
The TIL1X3UU supports three vertically stacked LED cabinets in a 1x3 column. The modular design can be combined with additional mounts to build larger arrays.

How is alignment handled during installation?
X, Y, and Z-axis adjustments plus an integrated plumb adjustment let the installer fine-tune cabinet-to-cabinet positioning for a flat, seamless image.

Does this require a custom lead time or project registration?
No. It is a standard, stockable solution that ships off the shelf, making it easy to specify and order for time-sensitive projects.

Does it integrate with other Chief TiLED mounts?
Yes. The mount attaches to the top, bottom, and sides of adjacent TiLED mounts to support a wide range of video wall layouts. Browse more Chief mounting solutions for complementary hardware.

What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
