Chief Kx Clmn Desk Mnt Quad 2L Arms Slv - KXC420S
Product Overview

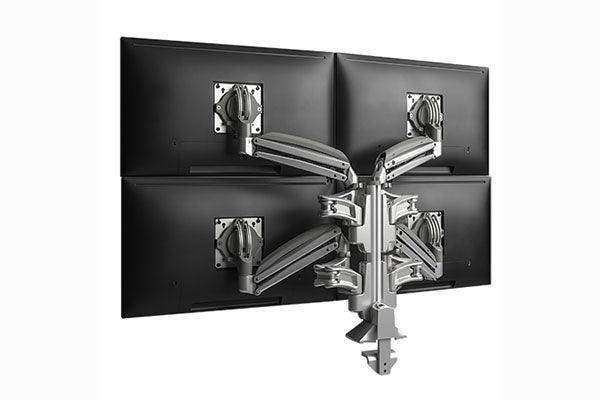

The Chief Kontour KX KXC420S is a column-mounted quad monitor desk mount built for high-density workstations that run four displays at once. Its exclusive FleXlink design optimizes mounting depth on shallow desktops while preserving full range of motion for screen sharing. Finished in silver forged aluminum, the KXC420S suits commercial workstations, control consoles, and operator desks that demand precise ergonomic positioning.
Product Description
The KXC420S mounts four monitors on a single desktop column, floating each display in an optimal ergonomic position above the work surface. Chief's patented Centris Extreme Tilt technology delivers effortless fingertip positioning across a +75 degree to -10 degree tilt range. The FleXlink arm geometry reduces how far the mount projects over the desk, making it practical for shallow-depth surfaces without sacrificing reach for collaboration. A best-in-class weight capacity range of 5 to 25 lbs per arm covers lightweight panels through heavier all-in-one displays. The mount provides 20 inches of total height adjustment, combining 13 inches of dynamic gas-spring travel with an additional 7 inches of manual column adjustment. An enhanced column interface lets you expand the configuration later without disturbing the existing installation, protecting your investment. The three-step installation and quick-release monitor interface speed up both mounting and routine maintenance, with tool storage integrated into the base. The mount clamps to the desk edge, drops through a standard grommet hole, or secures through a bolt hole using the included hardware. Tool-free cable management covers keep the finished workstation clean and professional. The KXC420S is also available in black and white finishes, with more options in the Chief collection.
Key Features
- FleXlink depth optimization — Optimizes the depth of multi-monitor installs for shallow-depth desktops while maintaining full range of motion.
- Wide weight capacity — Supports 5 to 25 lbs (2.3 to 11.3 kg) per arm, simplifying specification across panel types.
- Centris Extreme Tilt — Provides effortless +75 degree, -10 degree fingertip tilt for comfortable viewing whether seated or standing.
- Generous height range — Delivers 20 inches (508 mm) of total height adjustment, with 13 inches of gas-spring travel and 7 inches of manual column adjustment.
- Upgradeable column interface — Lets you expand from fewer to more monitors without impacting the existing installation.
- Flexible desk attachment — Clamps to the desk edge, mounts through a standard grommet hole, or bolts through with the included kit.
- Tool-free cable management — Snap-on covers route cabling for a clean, professional finish.
- Forged aluminum construction — Solid silver-finish arms provide durability and a refined desktop aesthetic.
Typical Applications
- Government space operator and dispatch desks
- Broadcast studio production stations
- Commercial meeting space hot-desks
- Training room instructor workstations
Technical Specifications
| Number of Monitors | 4 (quad) |
| Weight Capacity (per arm) | 5 to 25 lbs (2.3 to 11.3 kg) |
| Tilt | +75 degrees / -10 degrees |
| Total Height Adjustment | 20" (508 mm) |
| Dynamic (Gas-Spring) Adjustment | 13" (330 mm) |
| Manual Column Adjustment | 7" (178 mm) |
| Arm Material | Forged aluminum |
| Finish | Silver |
| Mounting Options | Desk-edge clamp, grommet, or bolt-through |
Frequently Asked Questions
Q: How many monitors does the KXC420S support?
It is a quad configuration that mounts four displays on a single desktop column.
Q: What size and weight monitors are compatible?
Each arm supports 5 to 25 lbs (2.3 to 11.3 kg), covering most desktop panels and many all-in-one displays. Confirm your display's VESA pattern and weight before ordering.
Q: How does it attach to a desk?
It clamps to the desk edge, mounts through a standard grommet hole, or bolts through using the included hardware, so it fits most commercial work surfaces.
Q: Can I add monitors later?
Yes. The enhanced column interface lets you change the monitor count without disturbing the existing installation.
Q: Does it manage cables?
Tool-free cable management covers route and conceal cabling for a clean install.
Q: What warranty applies?
The KXC420S is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
