Chief Kx Clmn Desk Mnt Dual 2L Arms Wht - KXC220W
Chief Kx Clmn Desk Mnt Dual 2L Arms Wht - KXC220W is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Chief Kx Clmn Desk Mnt Dual 2L Arms Wht - KXC220W
Product Overview
The Chief KXC220W is a Kontour KX Series dual-monitor column desk mount in white, engineered for ergonomic workstations in offices, conference rooms, and control environments. Its exclusive FleXlink design optimizes the depth of dual-monitor installs for shallow desks while preserving full range of motion for sharing screens with colleagues. Patented Centris Extreme Tilt provides effortless fingertip positioning so displays float in the optimal viewing position above the work surface.
Product Description

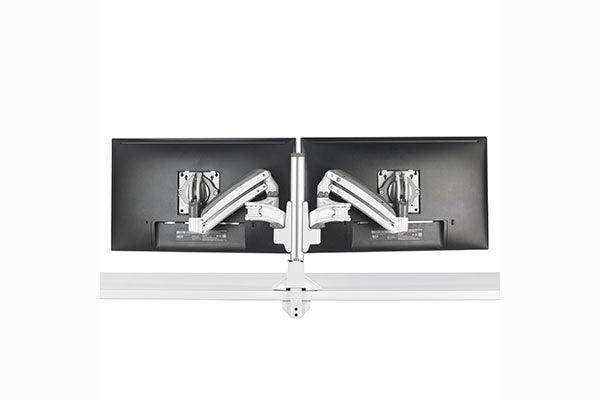

The KXC220W mounts two monitors on a single column desk mount for a clean, productive, and comfortable workspace.
The FleXlink arm geometry provides the most complete range of motion available while optimizing depth for shallow-depth desktops, so monitors can be pulled forward, angled for collaboration, and returned to position smoothly. A best-in-class weight capacity range of 5 to 25 pounds (2.3 to 11.3 kg) simplifies specification and supports everything from lightweight panels to heavier all-in-one displays. Enhanced patented Centris Extreme Tilt delivers +75 and -10 degrees of effortless tilt for viewing comfort whether sitting or standing. The mount offers 20 inches (508 mm) of total height adjustment, combining 13 inches (330 mm) of dynamic gas-spring height adjustment with an additional 7 inches (178 mm) of manual adjustment on the column. The enhanced column interface lets you upgrade from single- to dual- or triple-monitor configurations without disturbing the existing installation, protecting your investment. An enhanced 3-step installation with a quick-release monitor interface speeds mounting and maintenance, and the base includes integrated tool storage. The mount easily clamps to the desk edge, installs through a standard grommet hole, or attaches through a bolt hole with the included kit, and tool-free cable management covers keep the setup looking professional. With high recycled content and a recyclable design, Kontour arms may contribute to LEED-CI, -NC, and -EB credits.
Key Features
- FleXlink design — Full range of motion while optimizing depth for shallow-depth desktops.
- 5 to 25 lb capacity — Best-in-class weight range (2.3 to 11.3 kg) simplifies specification across display types.
- Centris Extreme Tilt — Provides +75 and -10 degrees of effortless fingertip tilt for sitting or standing.
- 20 inches of height adjustment — 13" (330 mm) dynamic gas-spring plus 7" (178 mm) manual column adjustment.
- Upgradeable column interface — Move from single to dual or triple monitors without redoing the install.
- 3-step installation — Quick-release monitor interface with integrated tool storage in the base.
- Flexible desk mounting — Clamps to the desk edge, mounts through a grommet, or bolts through with the included kit.
- Tool-free cable management — Cable covers keep the workstation clean and professional.
- LEED contribution — High recycled content and recyclable design may support LEED-CI, -NC, and -EB credits.
Typical Applications
- Office and commercial meeting space dual-monitor workstations
- Conference room and huddle room shared-screen setups
- Training rooms and government space workstations
- Healthcare and administrative desks requiring ergonomic positioning
Technical Specifications
| Mount Type | Kontour KX Series dual-monitor column desk mount |
| Finish | White (also offered in silver and black) |
| Weight Capacity | 5 – 25 lbs (2.3 – 11.3 kg) per arm range |
| Tilt | +75° / -10° Centris Extreme Tilt |
| Height Adjustment | 20" (508 mm) total: 13" (330 mm) gas-spring + 7" (178 mm) manual |
| Construction | Forged aluminum arms |
| Desk Mounting | Edge clamp, grommet, or bolt-through (kit included) |
Frequently Asked Questions
How many monitors does the KXC220W support?
It is a dual-monitor column desk mount, and the column interface can be upgraded to a triple-monitor configuration without redoing the existing installation.
What is the weight capacity?
Each arm supports a range of 5 to 25 pounds (2.3 to 11.3 kg), covering lightweight panels through heavier all-in-one displays.
How much height adjustment is available?
It offers 20 inches (508 mm) of total adjustment: 13 inches (330 mm) of dynamic gas-spring adjustment plus 7 inches (178 mm) of manual adjustment on the column.
How does it attach to a desk?
It clamps to the desk edge, installs through a standard grommet hole, or bolts through with the included kit.
Can it help with LEED certification?
Yes. With high recycled content and a recyclable design, Kontour arms may contribute to LEED-CI, -NC, and -EB credits. Browse more Chief AV solutions for related mounts.
What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
