Chief K1D220B With Dell Ultrasharp Qc Bkt - K1D220BXDL

Product Overview

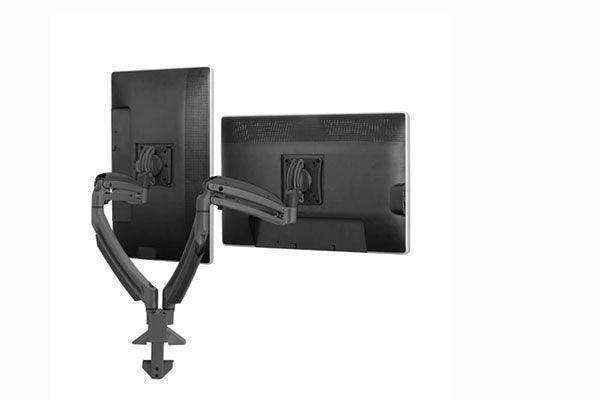

The Chief Kontour K1D220BXDL is a dynamic height-adjustable desk clamp mount for two displays on dual 2L articulating arms, finished in black and silver, with pre-installed KSA1250 Dell Quick-Connect interfaces for fast installation of most Dell monitors. It is designed for office, healthcare, and institutional workstations where ergonomic dual-monitor positioning is required and the display hardware is Dell-branded. The desk clamp attachment allows installation without drilling, and the gas-spring height mechanism provides 13 inches of dynamic travel at fingertip pressure for continuous ergonomic adjustment during the workday.

Product Description

The K1D220BXDL distinguishes itself from standard K1D desk clamp mounts by arriving with KSA1250 Dell Quick-Connect interfaces pre-installed on both arms. These brackets are designed to interface directly with the mounting points on most Dell monitors, eliminating the step of attaching a separate adapter plate and reducing installation time in Dell-standardized workstation deployments. The pre-installed configuration is particularly valuable for facilities teams deploying the same mount across multiple workstations, where the time saved per unit compounds across the installation project.

The arm mechanism is constructed from forged aluminum in black and silver finishes. Chief’s patented Centris Extreme Tilt technology provides +75° to -10° of tilt with fingertip-level resistance—a wider range than most competitor arms—accommodating both standard seated and raised standing desk viewing angles. The 13-inch (330 mm) gas-spring dynamic height adjustment allows both displays to move together in a fluid vertical range, responding to light hand pressure at any point in the travel.

Installation follows a documented 3-step process with a quick-release monitor interface for both initial setup and subsequent display changes. The mount attaches to a desk via edge clamp, standard grommet hole, or bolt-through with the included conversion kit. Tool-free cable management covers keep signal and power cables organized and out of sight. The K1D220BXDL may contribute to LEED-CI, -NC, and -EB credits due to its recycled content and recyclable design. View related Chief mounting products at the Chief collection on Creation Networks.

Key Features

• Pre-Installed KSA1250 Dell Quick-Connect Interfaces — Both arms arrive with Dell Quick-Connect brackets already attached, enabling immediate installation on most Dell monitors without an additional adapter purchase or installation step.
• Dual 2L Articulating Arms — Two independent 2L arms allow full reach and depth positioning for each display independently.
• 13” Gas-Spring Dynamic Height Adjustment (330 mm) — Smooth gas-spring mechanism provides 13 inches of effortless vertical travel at fingertip pressure for continuous ergonomic adjustment.
• Centris Extreme Tilt (+75°, -10°) — Patented tilt mechanism provides a broad tilt range with fingertip resistance, accommodating seated and standing viewing positions.
• 3-Step Installation with Quick-Release Monitor Interface — Streamlined installation and tool-free display mounting and removal for maintenance or reconfiguration.
• Desk Clamp, Grommet, and Bolt-Through Mounting — Hardware for all three standard desk attachment methods is included.
• Forged Aluminum Construction — Arms constructed from forged aluminum in black and silver finishes for durability and professional appearance.
• Tool-Free Cable Management — Integrated cable management covers route and conceal cables without tools.
• LEED Credit Eligible — High recycled content and recyclable design may contribute to LEED-CI, -NC, and -EB credits.

Typical Applications

• Corporate offices standardized on Dell displays requiring a consistent dual-monitor ergonomic mount solution
• Healthcare clinical workstations using Dell monitors for EMR and imaging applications
• Conference rooms with Dell dual-display presenter or operator stations
• Training rooms with instructor dual-monitor setups on Dell hardware
• Commercial meeting spaces deploying Dell workstations at multiple positions
• All-hands rooms and operations centers with Dell dual-monitor ergonomic positions

Technical Specifications

Frequently Asked Questions

Q: Which Dell monitors are compatible with the KSA1250 Quick-Connect brackets?
A: The KSA1250 is designed for most Dell monitors. Contact Creation Networks or Chief to confirm compatibility with your specific Dell monitor model before ordering.

Q: Can I use the K1D220BXDL with non-Dell monitors?
A: The KSA1250 Dell Quick-Connect brackets are specific to Dell monitors. For non-Dell displays, a standard VESA-compatible arm without the pre-installed Dell adapter would be the appropriate specification. Contact Creation Networks for alternative options.

Q: Is any additional hardware needed for installation?
A: The K1D220BXDL ships with hardware for desk clamp, grommet hole, and bolt-through mounting. No separate accessory purchase is required for standard desk configurations.

Q: What is the height adjustment range of the K1D220BXDL?
A: The K1D220BXDL provides 13 inches (330 mm) of dynamic gas-spring height adjustment. Unlike the K1C column mount, the K1D desk clamp model does not include a secondary manual column adjustment.

Q: What warranty applies to the K1D220BXDL?
A: The K1D220BXDL is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks directly for current warranty terms and support options.

Q: Is there a silver-finish version of this product?
A: Yes. The K1D220SXDL is the silver-finish equivalent with the same Dell Quick-Connect pre-installed configuration.
