Chief K1 Clmn Mnt Dual Disp Dual 2L Arms Wht - K1C220W

Product Overview

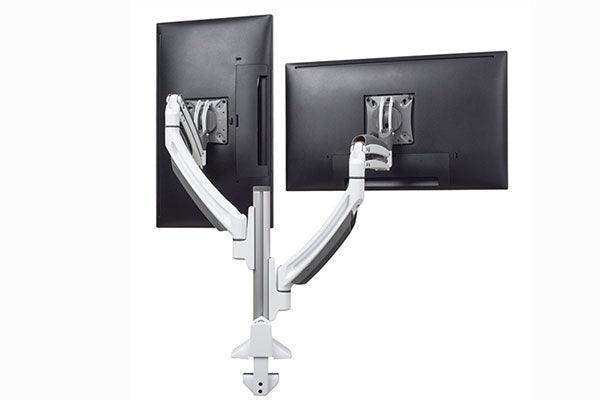

The Chief Kontour K1C220W is a dynamic height-adjustable column mount designed to support two displays on dual 2L articulating arms in a white finish. It is engineered for commercial office environments, healthcare facilities, and institutional spaces where ergonomic dual-monitor positioning, upgrade flexibility, and professional aesthetics are all required in a single mounting solution. The K1C platform mounts to a desk via clamp, grommet hole, or bolt-through connection and provides 20 inches of total height adjustment travel, combining gas-spring dynamic motion with a secondary manual adjustment range on the column. This model is TAA-compliant and may contribute to LEED-CI, -NC, and -EB credits.

Product Description

The Kontour K1C220W is built around Chief’s patented Centris Extreme Tilt technology, which provides +75° to -10° of tilt range with fingertip-level resistance. This range allows users to achieve optimal viewing angles whether seated or standing, which is particularly relevant in sit-stand workstation configurations where display angle needs to shift significantly between postures.

Height adjustment on the K1C220W is provided by two complementary mechanisms. The primary adjustment is a 13-inch (330 mm) gas-spring dynamic height range that responds to light hand pressure, allowing the user to raise or lower both displays without tools. A secondary 7-inch (178 mm) manual height adjustment on the column itself extends the total travel to 20 inches (508 mm), giving the installer fine control over the baseline display height during initial setup.

The column interface is engineered for forward compatibility: it supports upgrades from a single-monitor arm to dual or triple configurations without disturbing the existing column installation. This protects the investment in the base hardware as workstation configurations evolve. Installation is a documented 3-step process, and the quick-release monitor interface allows displays to be mounted and demounted without tools for maintenance or reconfigurations.

The K1C220W clamps to the edge of a desk, passes through a standard grommet hole, or mounts through a bolt hole using the included conversion kit. Tool-free cable management covers maintain a clean workstation appearance. The white finish is consistent with white or light-gray workstation furniture. Explore related Chief ergonomic mounting products at the Chief collection on Creation Networks.

Key Features

• Dual 2L Articulating Arms — Two independent 2L arms provide full reach and depth positioning for each display, allowing each monitor to be positioned independently of the other.
• 20” Total Height Adjustment (508 mm) — Combines 13 inches of gas-spring dynamic travel with 7 inches of manual column adjustment for a total of 20 inches of height range.
• Centris Extreme Tilt (+75°, -10°) — Patented tilt mechanism provides a 85-degree total tilt range with fingertip resistance, suitable for both seated and standing viewing positions.
• Weight Capacity 5–25 lbs per Display — Accommodates a broad range of commercial monitor weights including all-in-one systems and larger professional displays without requiring a separate heavy-duty arm.
• Column Interface Upgrade Path — The enhanced column interface allows the mount to be upgraded from single to dual to triple display configurations without modifying or removing the column base.
• 3-Step Installation with Quick-Release Monitor Interface — Streamlined installation process with a quick-release interface for easy display mounting and removal during maintenance or reconfigurations.
• Desk Clamp, Grommet, and Bolt-Through Mounting — Ships with hardware for all three common desk attachment methods; no separate accessory purchase required for standard installation scenarios.
• Tool-Free Cable Management — Integrated cable management covers route and conceal cables without tools, maintaining a professional workstation appearance.
• TAA-Compliant — Meets Trade Agreements Act requirements for government and federally funded procurement.
• LEED Credit Eligible — High recycled content and recyclable design may contribute to LEED-CI, -NC, and -EB credits.

Typical Applications

• Corporate open-plan offices with dual-monitor sit-stand workstations
• Healthcare facilities requiring adjustable dual-screen clinical workstations
• Government and federally funded spaces requiring TAA-compliant mounting hardware
• Conference rooms with dual-display presenter or operator stations
• Training rooms with instructor dual-monitor setups
• Commercial meeting spaces requiring ergonomic workstation solutions
• All-hands rooms or operations centers with adjustable dual-monitor positions

Technical Specifications

Frequently Asked Questions

Q: What display sizes and weights are compatible with the K1C220W?
A: The K1C220W supports displays weighing 5 to 25 lbs per arm. This range covers the majority of commercial flat-panel monitors, including larger all-in-one systems. Verify your specific display weight against this range before ordering.

Q: Can I add a third monitor to the K1C220W column later?
A: The enhanced column interface on the Kontour K1C platform is designed to support upgrades from single to dual to triple monitor configurations without removing or replacing the column base. Contact Creation Networks to identify the correct arm accessory for your upgrade path.

Q: Does the K1C220W include all hardware needed to mount to my desk?
A: Yes. The K1C220W ships with hardware for desk clamp, grommet hole, and bolt-through mounting methods, so the appropriate attachment option is included for standard desk configurations.

Q: What is the difference between the gas-spring adjustment and the manual column adjustment?
A: The 13-inch gas-spring adjustment allows the user to raise or lower both displays with light hand pressure during normal use. The 7-inch manual column adjustment is set during installation to establish the baseline height, extending the total available travel to 20 inches.

Q: Is the K1C220W TAA-compliant?
A: Yes. The K1C220W is TAA-compliant, making it suitable for U.S. government and federally funded procurement programs that require Trade Agreements Act compliance.

Q: What warranty applies to the K1C220W?
A: The K1C220W is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks directly for current warranty terms and support options.
