Chief IN-WALL LARGE WHT - W/ SURGEX 2 OUTLETS - PAC526FWP4
Product Overview

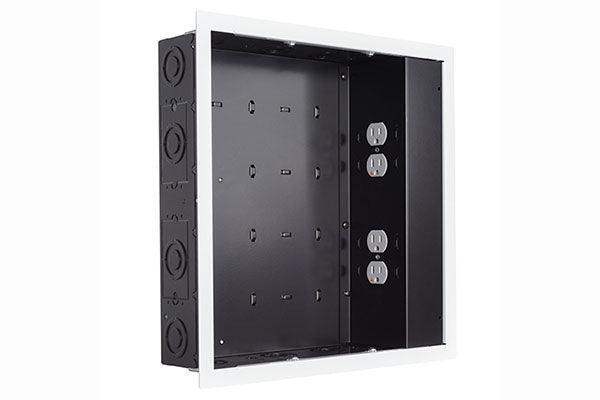

The Chief PAC526FWP4 is a white in-wall AV box that simplifies flat panel installation by providing an organized, recessed space for routing excess cable behind the display. It includes a high-performance SurgeX surge and filter module to protect connected equipment from power disturbances. The trimmed flange delivers a finished, paintable appearance and adds drywall mounting capability. It is built for commercial AV installations that demand clean cable management and reliable power protection.
Product Description
The PAC526FWP4 recesses cabling and power into the wall cavity so flat panel displays sit close to the wall with no visible clutter.
The dual-gang housing features an isolated-ground receptacle outlet with non-sacrificial multi-stage filtration and surge protection, guarding equipment against high-frequency noise and damaging power events. It can be installed before or after construction and mounts to drywall or studs. Knockouts accommodate single-gang outlets and 1-1/4 inch, 1 inch, and 0.5 inch conduit, while integrated zip-tie anchor points keep cable runs tidy. The box installs in landscape or portrait orientation and stores a wide variety of AV components. The flange is paintable to blend into any environment and is offered in black and white. The enclosure is UL 2416 listed for installation of AV, IT, and communication technology equipment. It is compatible with Chief PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, Thinstall, and FUSION wall mounts.
Key Features
- SurgeX power protection — Non-sacrificial, multi-stage surge protection and filtration with a non-volatile design and LED power indicator.
- Isolated-ground outlet — Dual-gang housing with an isolated-ground receptacle to safeguard sensitive AV gear.
- Flexible installation — Supports pre- and post-construction installation, drywall or stud mounting, and landscape or portrait orientation.
- Conduit knockouts — Accept single-gang outlets and 1-1/4", 1", and 0.5" conduit.
- Cable management — Integrated universal zip-tie anchor points organize cable runs.
- Paintable flange — Trimmed flange blends into any environment; black and white color options.
- Line noise filtering — Reduces common and differential mode noise by up to 40 dB.
- UL 2416 listed — Rated for installation of AV, IT, and communication technology equipment.
Typical Applications
- Conference room and boardroom flat panel installs
- Commercial meeting space and huddle room displays
- Digital signage in commercial and government spaces
- Training room and multi-purpose room displays
Technical Specifications
| Type | Large in-wall AV box with SurgeX surge/filter module |
| Color | White (paintable flange) |
| Housing | Dual-gang, isolated-ground receptacle outlet |
| Electrical Rating | 125V~, 60 Hz, 15 A; 1875 watt maximum |
| Noise Reduction | Up to 40 dB; ferrite toroid-based EMI filter |
| Withstand Rating | 240 VAC continuous without damage or loss of protection |
| Conduit Knockouts | 1-1/4", 1", and 0.5" |
| Listing | UL 2416 listed |
Frequently Asked Questions
What does the PAC526FWP4 do?
It provides a recessed in-wall enclosure for routing excess cable behind a flat panel display and includes a SurgeX surge and filter module to protect connected equipment from power disturbances.
Which mounts is it compatible with?
It works with Chief PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, Thinstall, and FUSION wall mounts.
Can it be installed after construction is complete?
Yes. It supports both pre- and post-construction installation and mounts to drywall or studs in landscape or portrait orientation.
Is the enclosure rated for AV equipment?
Yes. The enclosure is UL 2416 listed for installation of AV, IT, and communication technology equipment.
What power protection does it provide?
The SurgeX module offers non-sacrificial, multi-stage surge protection rated for 125V, 60 Hz, 15 A with a 1875 watt maximum and up to 40 dB of noise filtering. Browse more Chief AV accessories for related hardware.
What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
