Chief IN-WALL LARGE BLK - W/ SURGEX 3 OUTLETS - PAC526FBP6

Product Overview

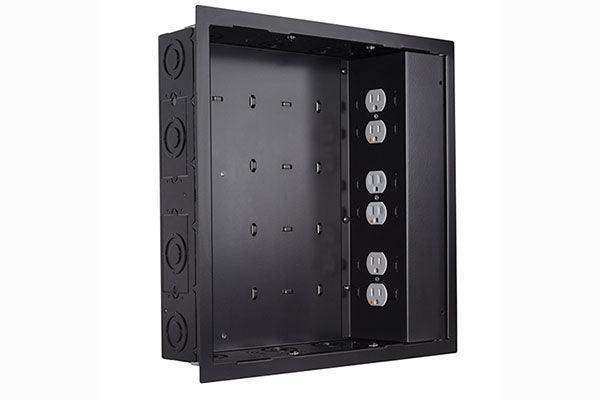

The Chief PAC526FBP6 is a large in-wall storage box in black that recesses AV components and excess cable behind a flat panel display while delivering integrated power protection. It includes a dual-gang, isolated-ground, six-receptacle SurgeX outlet with non-sacrificial multi-stage filtration and surge protection, making it well suited to conference rooms, commercial meeting spaces, and digital signage installations. A paintable flange provides a clean, trimmed appearance and drywall mounting capability. The enclosure is UL 2416 listed for AV, IT, and communication technology equipment.

Product Description

The PAC526FBP6 simplifies flat panel installation by providing an organized, recessed space for routing excess cable and storing a large variety of AV components behind the display. The included flange adds a trimmed, finished appearance and enables drywall mounting, and it is paintable so it blends into any environment. The high-performance dual-gang housing carries an isolated-ground, six-receptacle outlet with non-sacrificial multi-stage filtration and surge protection that shields connected equipment from disruptive high-frequency noise and damage caused by power disturbances. The surge and filter module provides non-volatile spike protection with an LED power indicator, a non-current-limiting design that passes full power on a standard circuit with redundant protection circuits, and a line filter that reduces common and differential mode noise by up to 40 dB. It is rated for 125V~, 60 Hz, 15 A with an 1875 watt maximum and a 240 VAC continuous withstand rating without loss of protection. The box supports pre- and post-construction installation, is drywall and stud mountable, and includes knockouts for single-gang outlets and 1-1/4", 1", and 0.5" conduit. It is compatible with the PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, Thinstall, and FUSION wall mounts. Browse the full Chief collection for compatible mounts and accessories.

Key Features

• Recessed cable and component storage — Organizes excess cable and a large variety of AV components behind the display.
• SurgeX six-receptacle outlet — Isolated-ground, dual-gang outlet with non-sacrificial multi-stage filtration and surge protection.
• Pre- and post-construction install — Drywall and stud mountable for new builds or retrofits.
• Paintable flange — Trimmed appearance that blends into any environment; available in black and white.
• Conduit knockouts — Knockouts for single-gang outlets and 1-1/4", 1", and 0.5" conduit.
• Landscape or portrait — Installs in either orientation with integrated universal zip-tie anchor points.
• Strong noise reduction — Line filter reduces common and differential mode noise by up to 40 dB.
• UL 2416 listed — Rated for installation of AV, IT, and communication technology equipment.

Typical Applications

• Conference room and boardroom display installations
• Commercial meeting space and multi-purpose room AV
• Digital signage and lobby displays
• Government space and training room flat panels

Frequently Asked Questions

Q: What power protection does the PAC526FBP6 include?
It includes a dual-gang, isolated-ground, six-receptacle SurgeX outlet with non-sacrificial multi-stage filtration and surge protection.

Q: Which mounts is it compatible with?
It is compatible with the PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, Thinstall, and FUSION wall mounts.

Q: Can it be installed in an existing wall?
Yes. It supports both pre- and post-construction installation and is drywall and stud mountable.

Q: Can the flange be painted?
Yes. The flange is paintable so it blends into any environment, and the box is available in black and white.

Q: Is the enclosure rated for AV equipment?
Yes. It is UL 2416 listed for installation of AV, IT, and communication technology equipment.

Q: What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
