Chief Fusion Xl Single Bolt-Down Landscape - XBM1U
Chief Fusion Xl Single Bolt-Down Landscape - XBM1U is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Chief Fusion Xl Single Bolt-Down Landscape - XBM1U
Product Overview

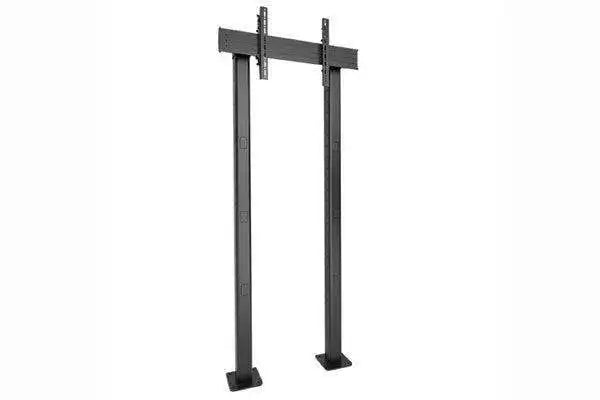

The Chief XBM1U is a FUSION XL single bolt-down freestanding mount that installs one extra-large display in landscape orientation for permanent applications. It lets integrators place a large landscape display in prominent, high-traffic locations where the structure bolts directly to the floor. Independent height, plumb, and lateral shift adjustment makes precise display alignment straightforward. It supports 42-inch to 80-inch screens for digital signage, lobby, and commercial AV applications.
Product Description
Chief's FUSION bolt-down freestanding solution makes it possible to install extra-large displays in prominent locations for permanent applications. The XBM1U holds a single display in landscape orientation, creating a high-impact presentation suited to lobby signage, command displays, and commercial digital signage. Because the structure bolts down, it provides a stable, permanent footprint without relying on a finished wall. The mount works with displays from 42" to 80" and up to 250 lbs (113.4 kg), and independent height, plumb, and lateral shift adjustment lets installers align the display precisely. Integrated cable management routes power and signal lines for a clean installation, and the mount is TAA compliant for government and procurement-sensitive projects. Aesthetic rear covering for the display, components, and mount is available through Chief Fusion Universal Back Covers. For comparable single and array video wall mounts, browse the full Chief collection.
Key Features
- Single Landscape Display — Mounts one display in landscape orientation for high-impact signage.
- Large Display Support — Works with 42" to 80" displays up to 250 lbs (113.4 kg).
- Bolt-Down Permanent Mounting — Bolts to the floor for a stable, permanent freestanding installation.
- Precise Alignment — Independent height, plumb, and lateral shift adjustment aligns the display cleanly.
- Integrated Cable Management — Routes power and signal cabling for a clean installation.
- Optional Back Covers — Compatible with Chief Fusion Universal Back Covers for a finished rear appearance.
- TAA Compliant — Meets Trade Agreements Act requirements for government installations.
Typical Applications
- Commercial meeting space — Permanent landscape signage for corporate lobbies and common areas.
- Government space — TAA-compliant signage for public-facing facilities.
- Auditorium — Freestanding landscape display for high-visibility content.
- Multi-purpose room — Reconfigurable digital signage in flexible commercial environments.
Technical Specifications
| Model | XBM1U |
| Type | FUSION XL single bolt-down freestanding mount |
| Array Configuration | 1 screen, landscape |
| Screen Size Range | 42" - 80" |
| Weight Capacity | 250 lbs (113.4 kg) |
| Adjustment | Independent height, plumb, lateral shift |
| Mounting | Bolt-down freestanding (permanent) |
| Cable Management | Integrated |
| Standards | TAA Compliant |
Frequently Asked Questions
Q: What display sizes does the XBM1U support?
It works with 42" to 80" displays up to 250 lbs (113.4 kg) in a single-screen landscape configuration.
Q: How is it installed?
It is a bolt-down freestanding solution that anchors to the floor for a permanent installation.
Q: Can the back of the mount be concealed?
Yes. Chief Fusion Universal Back Covers provide aesthetic covering for the display, components, and mount.
Q: How is the display aligned?
Independent height, plumb, and lateral shift adjustment let you align the display precisely.
Q: Is it suitable for government projects?
Yes. The mount is TAA compliant.
Q: What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
