Chief Fit Menu-Board Interface 400 Mm - RMB400
Product Overview

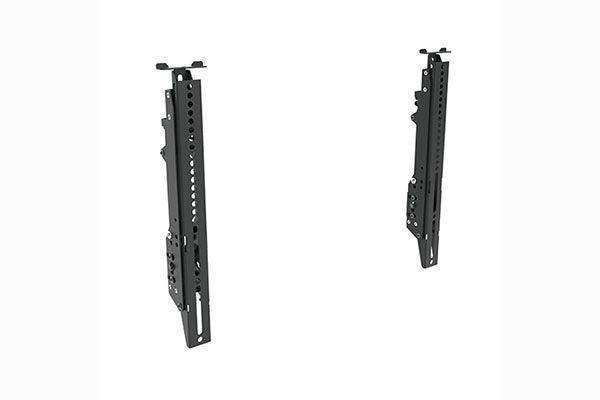

The Chief RMB400 is a 400 mm Fit menu-board interface that hangs a tilting display on strut channel for multi-display menu board installations. It is built for quick-service restaurant menu boards and digital signage rows that mount on 1-5/8-inch strut channel. The interface offers locking tilt positions and a leveling pad for precise alignment. It is intended for commercial AV menu-board deployments.
Product Description
The RMB400 is a quick and easy to install multi-display menu board tilting display interface that hangs on 12 or 14 gauge 1-5/8-inch strut channel, which is not included. A low-profile, adjustable-depth leveling pad provides 0.56 inches of adjustment for fine alignment across a row of displays. The tilting interfaces can be locked at 0, 5, 10, and 15 degrees to direct each screen toward the viewer. Interface brackets feature a locking latch that secures them to the strut channel for a stable installation. A wide-open back wall allows device mounting and cable routing behind the displays, and an optional storage box such as the PAC525 or PAC526 provides a clean installation. As a Chief commercial-grade interface, professional installation is recommended. Browse compatible menu-board and signage hardware in the Chief collection at Creation Networks.
Key Features
- Strut-Channel Mounting — Hangs on 12 or 14 gauge 1-5/8-inch strut channel (not included) for fast multi-display installs.
- Adjustable Leveling Pad — Low-profile leveling pad provides 0.56 inches of depth adjustment.
- Locking Tilt Positions — Tilting interfaces lock at 0, 5, 10, and 15 degrees.
- Locking Latch — Interface brackets secure to the strut channel with a locking latch.
- Open Back Wall — Wide-open back allows device mounting and cable routing behind displays.
- Optional Storage Box — Compatible with PAC525 and PAC526 storage boxes for a clean installation.
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RMB400 |
| Type | Menu-board tilting display interface (400 mm) |
| Mounting | 12 or 14 gauge 1-5/8 in strut channel (not included) |
| Tilt Positions | 0, 5, 10, 15 degrees (lockable) |
| Leveling Adjustment | 0.56 in adjustable-depth leveling pad |
| Optional Storage Box | PAC525, PAC526 |
| Manufacturer | Chief (Legrand AV) |
