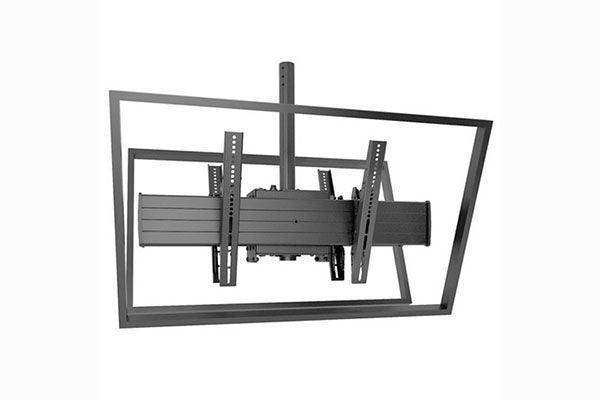

Chief Extra Large B2B Ceiling Mount - XCB1U
Product Overview
The Chief XCB1U is a single-pole, back-to-back ceiling mount engineered for extra-large flat panel displays in double-sided digital signage applications. It positions two XL screens up to 5 inches deep from a single ceiling drop, with installer-friendly tilt and swivel adjustments. The XCB1U is part of Chief's FUSION ceiling mount system and is built for commercial environments where wall mounting is not an option.
Product Description
The XCB1U mounts two extra-large displays back-to-back on a single pole drop, making it ideal for overhead digital signage in open commercial spaces. It is designed for XL displays 5 inches deep and thinner; for deeper and heavier displays, Chief offers the XCB7000 dual-drop solution. Centris fingertip tilt technology lets installers adjust each screen effortlessly, and continuous tilt with four set locking points removes the guesswork when aligning multiple screens. A simple on/off connection speeds installation and service, while tool-free screen engagement supports optional padlock security. The mount swivels to any preferred viewing angle for precise sightline control. A ceiling plate and extension column are required and must be ordered separately. The XCB1U is compatible with traditional 1.5-inch NPT and the newer CPA pinned ceiling plate and column systems. For larger overhead signage builds, see the Chief XCM7000 dual-column ceiling mount and the full Chief collection.
Key Features
- Back-to-back single-pole design — Mounts two XL displays from one ceiling drop for double-sided digital signage.
- Repeatable tilt — Continuous tilt with four set locking points eliminates guesswork when aligning multiple screens.
- Centris fingertip tilt — Lets installers adjust display angle effortlessly by hand.
- Tool-free accessibility — Simple on/off connection eases installation and ongoing service.
- Swivel adjustment — Rotates to any preferred viewing angle for precise sightlines.
- Integrated security — Tool-free screen engagement accepts an optional padlock.
- System compatibility — Works with traditional 1.5-inch NPT and CPA pinned ceiling plates and columns.
Typical Applications
- Commercial meeting space and lobby digital signage
- Government space wayfinding and information displays
- Multi-purpose room overhead screens
- Auditorium and concourse signage
Technical Specifications
| Mount Type | Single-pole back-to-back ceiling mount |
| Display Depth Compatibility | Up to 5" deep |
| Tilt | Continuous with four locking points (Centris fingertip tilt) |
| Swivel | Yes |
| Screen Engagement | Tool-free, optional padlock |
| Ceiling Plate / Column | Required, sold separately |
| System Compatibility | 1.5" NPT and CPA pinned ceiling plates/columns |
Frequently Asked Questions
Q: What displays is the XCB1U compatible with?
It supports extra-large flat panel displays that are 5 inches deep and thinner, in a back-to-back configuration.
Q: Does it include a ceiling plate and column?
No. A ceiling plate and extension column are required and must be ordered separately. The mount works with 1.5-inch NPT and CPA pinned systems.
Q: What if my displays are deeper or heavier?
For displays deeper than 5 inches or with greater weight, Chief's XCB7000 dual-drop ceiling mount is the recommended alternative.
Q: How are the screens secured?
Screen engagement is tool-free and accepts an optional padlock for added security.
Q: Can the displays be angled after installation?
Yes. Centris fingertip tilt with four locking points and full swivel let you fine-tune each screen's angle.
Q: What warranty applies?
The XCB1U is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
