Chief Electric Height Adjust Wall - Xl - XSD1U
Product Overview

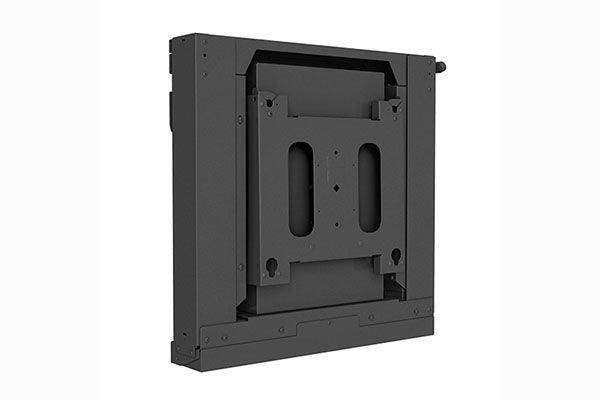

The Chief Electric Height-Adjustable Wall Mount XSD1U brings electric height adjustment to large interactive displays in boardrooms and classrooms. It delivers 26" (660 mm) of vertical lift for typical displays up to 80 inches, with an anti-collision sensor for safe operation. The mount ships fully assembled for fast installation.
Product Description
Ideal for interactive applications, the XSD1U electric height-adjustable wall mount improves accessibility to technology in the boardroom and the classroom. The solution provides 26" (660 mm) of vertical lift and accommodates typical large displays between 50 and 80" weighing up to 310 lbs (140.6 kg), with a VESA pattern range of 200 x 200 to 860 x 510 mm. An anti-collision sensor immediately halts and reverses display motion when it encounters an obstruction, protecting fingers and equipment. ControlZone allows post-installation fine-tuning of height and leveling, and the mount ships fully assembled. Integrated cable management and strain relief protect the traveling cable from disconnecting. A control pad is included; optional accessories sold separately include the PACREM Remote Control Kit (remote and Bluetooth dongle) or the PACBLU Bluetooth dongle for phone-app access. A full line of accessories installs with the mount, including shelves, padlock, and speaker adapters.
Key Features
- 26" of vertical lift — The mount provides 26" (660 mm) of electric vertical travel for accessible display positioning.
- Large display capacity — Accommodates typical 50-80" displays up to 310 lbs (140.6 kg) with VESA 200 x 200 to 860 x 510 mm.
- Anti-collision safety — The sensor immediately halts and reverses motion upon contact to avoid pinching fingers or damaging equipment.
- ControlZone tuning — Allows post-installation fine-tuning of height and leveling.
- Protected cabling — Integrated cable management and strain relief protect the traveling cable from disconnecting.
- Accessory ready — A control pad is included; optional PACREM remote or PACBLU Bluetooth dongle and shelves, padlock, and speaker adapters install with the mount.
Typical Applications
- Boardroom interactive displays
- Training room and classroom touch panels
- Conference room collaboration spaces
- Government space accessibility installations
Technical Specifications
| Type | Electric height-adjustable wall mount |
| Vertical Lift | 26" (660 mm) |
| Display Size | 50 - 80" |
| Weight Capacity | Up to 310 lbs (140.6 kg) |
| VESA Pattern | 200 x 200 - 860 x 510 mm |
| Safety | Anti-collision sensor |
| Adjustment | ControlZone height and leveling |
| Cable Management | Integrated cable management and strain relief |
| Included | Control pad |
| Optional | PACREM Remote Kit, PACBLU Bluetooth dongle, shelves, padlock, speaker adapters |
| Model | XSD1U |
Frequently Asked Questions
How much height adjustment does it provide?
The XSD1U delivers 26" (660 mm) of electric vertical lift for interactive accessibility.
What displays are compatible?
It accommodates typical large displays from 50 to 80" weighing up to 310 lbs (140.6 kg), with a VESA pattern range of 200 x 200 to 860 x 510 mm.
Is it safe around people?
Yes. An anti-collision sensor immediately halts and reverses the display's motion when it encounters an obstruction.
How is it controlled?
A control pad is included. Optional accessories add the PACREM Remote Control Kit or the PACBLU Bluetooth dongle for phone-app control.
Does it require assembly?
No. The mount ships fully assembled, and ControlZone allows post-installation fine-tuning of height and leveling.
What warranty applies?
This Chief mount is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
Compare related Chief height-adjustable solutions: XFD1U Electric Floor Support XL, LPE1U Electric Cart L. Browse the full Chief collection at Creation Networks.
