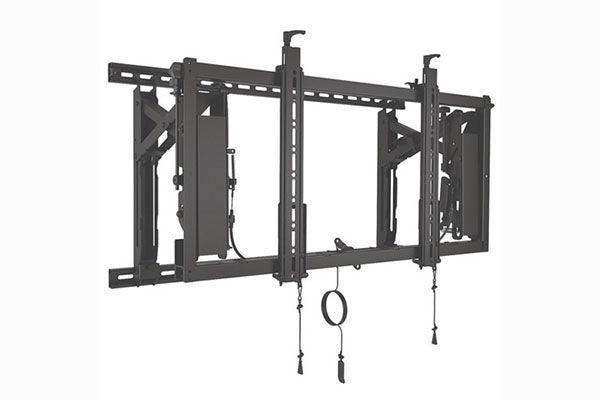

Chief Connexsys Video Wall System With Rails - LVS1U

Product Overview

The Chief LVS1U ConnexSys video wall mounting system is a landscape mount built for fast, accurate large-format video wall installations in commercial AV environments. It ships with strut rails so multiple mounts can be leveled a full row at a time, cutting installation time on demanding configurations. The system targets the four core video wall challenges: speed, alignment, serviceability, and rigidity. It is a strong fit for digital signage, lobby video walls, and control-room display arrays.

Product Description

The LVS1U hangs displays on a single strut channel, so installers level each row once rather than shimming individual mounts. Vertical spacing is simply the height of the display to the next rail, and no horizontal spacers are required. PowerZone adjustments consolidate six points of fine-tuning into one accessible location at the top of the mount. Height adjusts ±1 inch on each interface, and depth sets between 4 and 7.4 inches from the wall to suit recessed installations. Both sides adjust independently, compensating for walls that are out of alignment by up to 2 inches horizontally. Tool-free ClickConnect latching secures each display, and three levels of lateral adjustment protect screens from collisions during fine-tuning. The RapidDraw display release uses a cord system that gently pops any screen out on demand and extends 13.4 inches for rear service access. A rigid frame holds displays in position even after extension, and the included rails ship with each mount. This is the rails-included version of the ConnexSys landscape system; a no-rails version (LVSXU) is available for installers who source strut locally. Browse the full Chief collection for compatible video wall accessories.

Key Features

• Single-rail row leveling — Hang units on one strut channel to level an entire row at once, eliminating horizontal spacers.
• PowerZone adjustment — Six points of adjustment sit in one easy-to-access location at the top of the mount.
• Independent depth control — Depth sets between 4 and 7.4 inches from the wall and each side adjusts independently to correct wall imperfections up to 2 inches.
• ClickConnect latching — Tool-free latching secures displays to the mount for quick, confident installation.
• RapidDraw display release — A cord release pops any screen out on demand and extends 13.4 inches for rear service.
• Rigid frame — The frame keeps displays where you set them, even after extending for service.
• Universal interface — Each mount ships with adjustments preset to the same position and accepts a wide range of displays.

Typical Applications

• Commercial meeting space and conference room video walls
• Broadcast studio and control-room display arrays
• Auditorium and all-hands room large-format displays
• Digital signage in lobbies and government spaces

Frequently Asked Questions

Q: What displays does the LVS1U work with?
It uses a universal interface and is sized for large-format commercial displays. Confirm exact screen compatibility with Chief MountFinder before ordering.

Q: Does this version include rails?
Yes. The LVS1U ships with rails for each mount. If you prefer to source strut locally, the LVSXU is the no-rails landscape version.

Q: How does it speed up installation?
Multiple mounts hang on a single strut channel so you level an entire row once, with no horizontal spacers and a simple display-height-to-next-rail vertical measurement.

Q: How are displays serviced after installation?
The RapidDraw cord release pops any screen out on demand and extends 13.4 inches for rear access, while the rigid frame keeps alignment when displays are returned to position.

Q: Can it integrate into recessed or uneven walls?
Yes. Depth sets between 4 and 7.4 inches, both sides adjust independently, and the system compensates for walls out of alignment by up to 2 inches horizontally.

Q: What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
