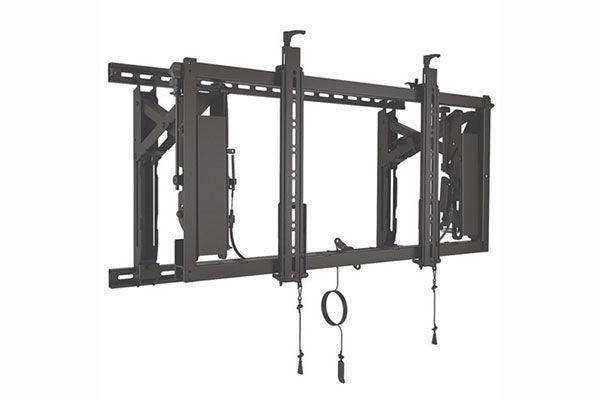

Chief Connexsys Video Wall Sys With Rails Taa - LVS1U-G
Chief Connexsys Video Wall Sys With Rails Taa - LVS1U-G is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Chief Connexsys Video Wall Sys With Rails Taa - LVS1U-G
Product Overview
The Chief LVS1U-G ConnexSys video wall mounting system is a TAA-compliant landscape mount that ships with rails for each mount, solving the common video wall challenges of speed, alignment, serviceability, and rigidity. By using strut channel to connect multiple mounts together, integrators can level an entire row at once, making it ideal for large and recessed video wall installations in conference room, boardroom, and commercial signage environments.
Product Description
The LVS1U-G ConnexSys video wall mounting system is engineered to make video wall installation faster and more serviceable. Units hang on a single strut channel for quick row leveling, eliminating the need for horizontal spacers; vertical measurement is simply the height of the display to the next rail. The system is compatible with most 1-5/8 inch by 13/16 inch (W x D) channel strut and significantly reduces installation time, especially for extra-large and recessed configurations. Tool-free ClickConnect latching secures displays, and the PowerZone region provides six points of adjustment in one easy-to-access location at the top of the mount. PowerZone adjustments include height adjustment of plus or minus 1 inch on each interface, tilt at a single pivot point that protects displays from twisting, and depth that can be set between 4 and 7.4 inches from the wall to suit recessed installations. Both sides adjust independently to compensate for walls out of alignment by up to 2 inches horizontally, plus three levels of lateral adjustment for precise positioning. RapidDraw display release uses a cord system that gently pops any screen out for service and extends up to 13.4 inches, with a 10-foot cord that releases only on demand to prevent accidental pop-outs. A kickstand provides 20 degrees of bottom tilt access, and the rigid frame keeps displays where you set them. The mount uses a universal interface, accepts a quarter-inch shank padlock for security, and is safety tested and TAA compliant.
Key Features
- Single strut channel leveling — Hang units on one strut channel for quick row leveling without horizontal spacers.
- ClickConnect latching — Tool-free latching secures displays during installation.
- PowerZone adjustments — Six points of adjustment in one accessible location, with height of plus or minus 1 inch per interface.
- Depth and wall compensation — Depth sets from 4 to 7.4 inches; independent sides compensate for walls out of alignment by up to 2 inches.
- RapidDraw display release — Cord system extends screens up to 13.4 inches for service and releases only on demand.
- Kickstand access — Provides 20 degrees of bottom tilt access for servicing.
- Rigid frame — Maintains alignment even after extending for service or accidental bumps.
- Universal interface and security — Universal mounting with quarter-inch shank padlock compatibility.
- TAA compliant — Meets TAA procurement requirements; ships with rails.
Typical Applications
- Government space video walls requiring TAA compliance
- Boardroom and conference room video walls
- Broadcast studio and control room displays
- Commercial meeting space and lobby digital signage
- Auditorium and multi-purpose room installations
Technical Specifications
| Mount Type | ConnexSys video wall system, landscape, with rails |
| Compliance | TAA compliant |
| Strut Channel Compatibility | 1-5/8" x 13/16" (W x D), most sizes |
| Height Adjustment | ±1" per interface |
| Depth from Wall | 4" - 7.4" |
| Wall Misalignment Tolerance | Up to 2" horizontally |
| Lateral Adjustment | 3 levels |
| RapidDraw Service Extension | Up to 13.4"; 10' release cord |
| Kickstand Tilt Access | 20° bottom tilt |
| Interface / Security | Universal; 1/4" shank padlock |
| SKU | LVS1U-G |
Frequently Asked Questions
Q: Is the LVS1U-G TAA compliant?
Yes. The LVS1U-G is TAA compliant, making it suitable for government and other TAA-required procurements.
Q: Does it include rails?
Yes. This version ships with rails for each mount.
Q: How does it speed up video wall installation?
Units hang on a single strut channel for quick row leveling without horizontal spacers, reducing installation time for large and recessed walls.
Q: How are displays serviced after installation?
RapidDraw display release extends any screen up to 13.4 inches for service, and a kickstand provides 20 degrees of bottom tilt access.
Q: Can it compensate for an uneven wall?
Yes. Independent side adjustment compensates for walls out of alignment by up to 2 inches horizontally, with depth settable from 4 to 7.4 inches.
Q: What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
Explore more Chief video wall mounting systems.
