Chief CEILING STORAGE BOX 2X2 W/COLUMN W/POWER - CMS492CP2

Product Overview

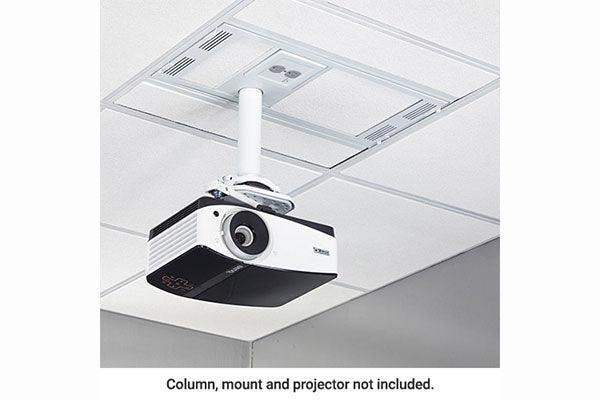

The Chief CMS492CP2 is a 2 ft x 2 ft ceiling storage box that conceals AV equipment above a standard ceiling tile and supports a 1.5 in NPT column drop for mounting a projector within the same tile grid. It delivers a clean, professional look for classrooms and conference rooms while protecting equipment with integrated power and surge protection. The box includes a high-performance dual-gang, isolated-ground, dual-receptacle outlet with multi-stage filtration.

Product Description

The CMS492CP2 hides projectors, switchers, and other AV components above the ceiling while keeping them serviceable, which keeps rooms looking finished without sacrificing access. A drop carriage door improves serviceability by providing full access to the equipment, and optimal pipe flexibility within the tile reduces reliance on image correction to improve image quality. The detachable power housing can be pre-installed by electricians on site and assembled to the storage box later, and it can face inside the box or into the room. The non-sacrificial, multi-stage surge and filter module protects connected equipment from high-energy transients, lightning strikes, and electronic noise, with a line filter that reduces common and differential mode noise by up to 40 dB. The unit is UL evaluated for use in air-handling spaces per NEC Article 300.22(C) and is TAA compliant. Lightweight construction supports one-person installation, and it ships with speed-connect hardware and one shelf (a second shelf, CMSUNV2, and 1RU rack rail brackets, CMS1RU, are sold separately). The column is not included and must be purchased separately.

Key Features

• Concealed AV storage — Hides AV equipment above a 2 x 2 ft ceiling tile for a clean, professional look.
• Integrated projector column support — Supports a 1.5 in NPT column drop for mounting a projector in the same tile grid.
• Surge and filter module — Non-sacrificial, multi-stage protection guards against transients, lightning, and electronic noise.
• Noise filtration — Line filter reduces common and differential mode noise by up to 40 dB.
• Drop carriage door — Improves serviceability with full access to the stored equipment.
• Detachable power housing — Can be pre-installed by electricians and assembled to the box later, facing the box or the room.
• Plenum-rated use — UL evaluated for air-handling spaces per NEC Article 300.22(C) and TAA compliant.
• One-person installation — Lightweight construction with speed-connect hardware and one included shelf.

Typical Applications

• Conference room
• Training room
• House of worship
• Auditorium
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

What does the CMS492CP2 store?
It conceals AV equipment above a 2 x 2 ft ceiling tile and supports a projector column in the same grid.

Is a column included?
No. The 1.5 in NPT column drop is supported, but the column must be purchased separately.

Does it protect equipment from power issues?
Yes. It includes a non-sacrificial multi-stage surge and filter module rated 125V, 15A, 1875 W with up to 40 dB noise reduction.

Can it be installed in a plenum/air-handling space?
Yes. It is UL evaluated for air-handling spaces per NEC Article 300.22(C) and is TAA compliant.

What are the weight capacities?
Overall 100 lbs (45 kg), with 50 lbs (22 kg) for the projector ceiling plate and 25 lbs (11 kg) per shelf.

What warranty applies?
It is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
