Chief AS3LDP7 Tempo™ Flat Panel Wall Mount System, PDU Bundle
Product Overview

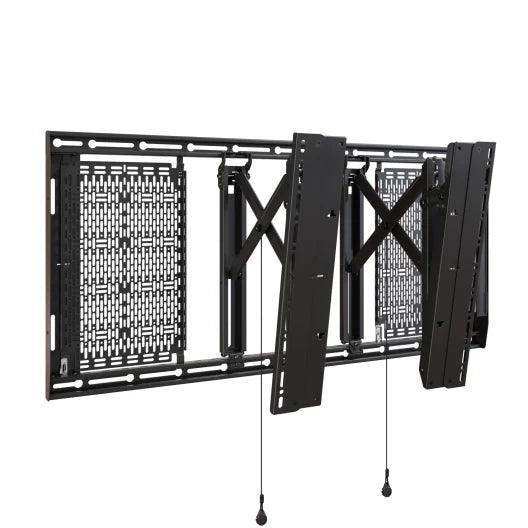

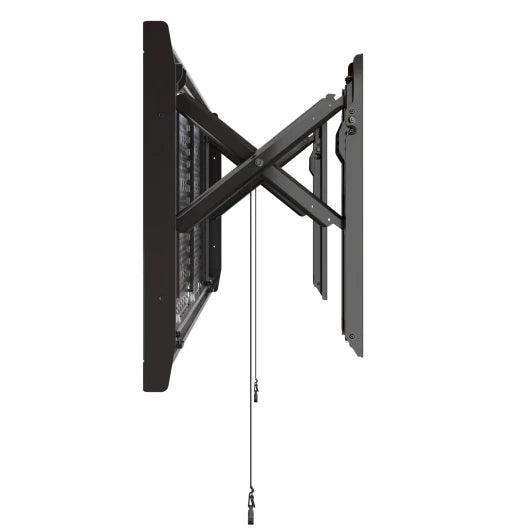

The Chief AS3LDP7 Tempo Flat Panel Wall Mount System is an all-in-one, configurable mount built to speed up commercial display installations, especially mass rollouts. It ships pre-bundled with a Middle Atlantic PD-715SC-NS slim 7-outlet, 15A power strip and integrated Lever Lock storage panels so AV devices and cabling install neatly behind the display. Designed with installer feedback, it consolidates the mount, storage, and power distribution into one part number, one box, one order.
Product Description
The Tempo system installs on any wall and provides 12.6 in (320 mm) of service access, with an open wall plate for easy positioning of power and data sources plus in-wall storage. Integrators can install two to six small devices behind the display on the integrated Lever Lock panels, which slide along the mounting rail for optimal component placement. The mount ships with two 15 in x 10 in Lever Lock plates and has room to add more. Feature flexibility includes a wall plate and extending interface that helps center the display, 10° of tilt in 2.5° increments, and up to 1 in (25 mm) of post-install leveling adjustment. The total installation depth supports ADA-compliant placement when display depth is under 2 in (51 mm). Built for landscape orientation, the system supports displays from 49 in to 86 in and a 200 lb (90.7 kg) weight capacity, making it well suited to conference rooms, training rooms, and commercial meeting spaces.
Key Features
- All-in-one bundle — One part number ships the mount, integrated storage, and a 7-outlet power strip pre-loaded for site delivery.
- Integrated Lever Lock storage — Holds 2 to 6 small devices behind the display on plates that reposition along the mounting rail.
- Service access — Provides 12.6 in (320 mm) of service depth with an open wall plate for power and data routing.
- Tilt adjustment — Offers 10° of display tilt in 2.5° increments for sightline control.
- Post-install leveling — Allows up to 1 in (25 mm) of leveling adjustment after the display is mounted.
- Bundled PDU — Includes a Middle Atlantic PD-715SC-NS slim 7-outlet, 15A power strip with a 10 ft cord.
- ADA-friendly depth — Total installation depth supports ADA compliance when display depth is under 2 in (51 mm).
Typical Applications
- Conference room
- Training room
- Commercial meeting space
- Huddle room
- Multi-purpose room
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | Chief (Legrand AV) |
| Model / SKU | AS3LDP7 |
| Product type | Flat panel wall mount system with PDU |
| Typical screen size | 49 in – 86 in |
| Weight capacity | 200 lb (90.7 kg) |
| VESA pattern | Up to 970 x 450 mm |
| Tilt | -10° / +0° in 2.5° increments |
| Overall dimensions | 42.03 x 19.75 x 1.96 in (1068 x 502 x 50 mm) |
| Minimum depth | 1.96 in (50 mm) |
| Service depth | 12.6 in (320 mm) |
| Post-install roll leveling | 1 in (25 mm) |
| Orientation | Landscape |
| Included PDU | Middle Atlantic PD-715SC-NS, 7 outlets, 15A, 120 VAC, 10 ft cord |
| Wall stud compatibility | 16 in OC, 24 in OC |
| Color | Black |
Frequently Asked Questions
What is included in the AS3LDP7 bundle?
It ships with the Tempo wall mount, two 15 in x 10 in Lever Lock storage plates, and a Middle Atlantic PD-715SC-NS 7-outlet, 15A power strip.
What display sizes and weights does it support?
It accommodates 49 in to 86 in displays up to 200 lb (90.7 kg) with a VESA pattern up to 970 x 450 mm.
How does it speed up installation?
Devices and cabling ship pre-loaded behind the display, reducing onsite labor and last-minute shipping of missing parts.
Can the display be leveled after mounting?
Yes. It provides up to 1 in (25 mm) of post-install leveling and 10° of tilt in 2.5° increments.
Is it suitable for ADA-compliant installs?
The total installation depth supports ADA compliance when the display depth is less than 2 in (51 mm).
What warranty applies?
It is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
