Chief CEILING STORAGE BOX 1X2 W/POWER - CMS491P2

Product Overview

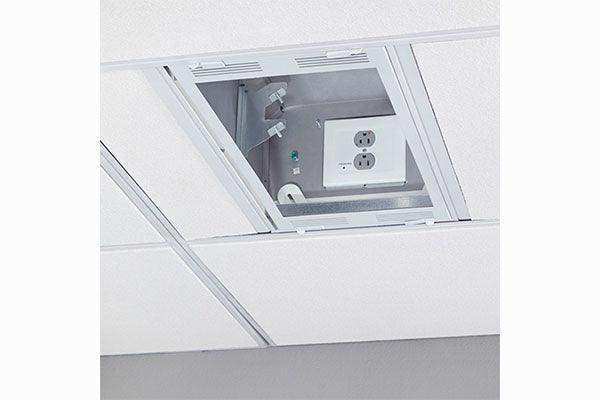

The Chief CMS491P2 is a ceiling AV storage box with integrated power that conceals equipment above a 2' x 2' ceiling tile for a clean, professional look in classrooms and conference rooms. A drop carriage door provides full access to equipment for easy service. It includes a high-performance surge and filter module that protects connected gear from power disturbances. The enclosure is plenum rated and TAA compliant for institutional installations.

Product Description

The CMS491P2 hides projectors, switchers, and other AV components out of sight above a ceiling tile while keeping them fully serviceable. A drop carriage door improves accessibility and serviceability by exposing the full interior. The detachable power housing can be pre-installed by electricians on site and assembled to the storage box later, simplifying trade coordination. It accepts up to two single-gang or one dual-gang outlet, with four nested knockouts for 1-1/4 inch, 1 inch, and 0.5 inch conduit, installed inside the box or facing the room. Built-in ventilation manages heat from active equipment, and the AV tray supports a variety of components, shipping with one shelf (a second, CMSUNV1, sold separately). Overall weight capacity is 100 pounds, with up to 50 pounds for a projector ceiling plate and 25 pounds per shelf location. The included surge and filter module delivers non-sacrificial, multi-stage protection with an LED power indicator. The enclosure ships with speed-connect installation hardware, supports one-person installation, is UL evaluated for air-handling spaces per NEC 300.22(C), and is TAA compliant.

Key Features

• Drop carriage door — Improves accessibility and serviceability with full access to equipment.
• Detachable power housing — Can be pre-installed by electricians and assembled to the storage box later.
• SurgeX-grade protection — Non-sacrificial, multi-stage surge protection and filtration with an LED power indicator.
• Flexible outlets — Accepts up to two single-gang or one dual-gang outlet, inside the box or facing the room.
• Conduit knockouts — Four nested knockouts for 1-1/4", 1", and 0.5" conduit.
• Built-in ventilation — Manages heat from active AV components.
• 100 lb capacity — Supports up to 50 lb for a projector plate and 25 lb per shelf location.
• Plenum rated and TAA compliant — UL evaluated for air-handling spaces per NEC 300.22(C).

Typical Applications

• Classroom and training room AV concealment
• Conference room and boardroom equipment storage
• Government space installations requiring TAA-compliant hardware
• Multi-purpose room ceiling-mounted AV systems

Technical Specifications

Frequently Asked Questions

What does the CMS491P2 do?
It conceals AV equipment above a ceiling tile with integrated power, surge protection, and filtration, while a drop carriage door keeps everything accessible for service.

How much weight does it support?
Overall capacity is 100 lbs (45 kg), including up to 50 lbs for a projector ceiling plate and 25 lbs per shelf location.

Is it suitable for plenum (air-handling) spaces?
Yes. It is UL evaluated for use in air-handling spaces as defined by NEC Article 300.22, sub-clause (C).

What power protection is included?
It includes a non-sacrificial, multi-stage surge and filter module rated for 125V, 60 Hz, 15 A with a 1875 watt maximum and up to 40 dB of noise filtering.

Can I add a second shelf?
Yes. It ships with one shelf, and a second shelf (CMSUNV1) is available separately. Browse more Chief AV solutions for related hardware.

What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
