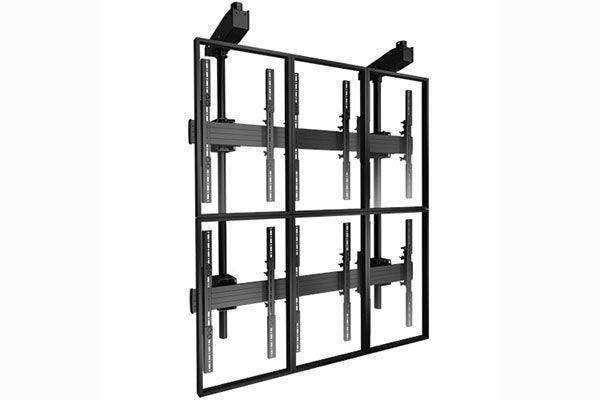

Chief Ceiling Mounted Array Portrait 3 X 2 - LCMP3X2U

Product Overview

The Chief LCM3X2UP is a ceiling mounted video wall mount that builds a 3x2 portrait array in locations where wall space isn't available. Part of the Chief FUSION ceiling system, it suspends six displays in a tight, aligned grid for digital signage in open lobbies, atriums, and retail floors. This 3x2 ceiling mounted display array gives integrators precise alignment control and a clean, freestanding presentation in high-traffic commercial spaces. It supports displays up to 55 inches per screen.

Product Description

Chief's FUSION ceiling mounted solutions make it possible to construct video walls in prominent locations where walls aren't available, which is a common constraint in open-concept commercial environments. This portrait video wall ceiling mount holds a 3x2 arrangement — three screens wide by two screens high in portrait orientation — and is designed for digital signage installations that need to be visible from multiple sight lines. Independent height and plumb adjustment knobs let installers align each display without tools, while ControlZone leveling provides micro-height adjustment at every column intersection. Infinite vertical and lateral positioning keeps display rows and columns tight for a continuous canvas. The mount uses heavy-duty construction rated to support displays up to 55 inches. A ceiling plate and extension column are required and must be ordered separately; the system is compatible with traditional 1.5" NPT and the newer CPA pinned ceiling plate and column systems. Confirm screen compatibility against current Legrand AV / Chief documentation before ordering. For comparable ceiling and wall mounting options, browse the Chief collection.

Key Features

• Precise Screen Alignment — Independent knobs for height and plumb let installers align displays with no tools required.
• ControlZone Leveling — Micro-height and leveling adjustment is available at all column intersection points for a tight grid.
• Infinite Screen Positioning — Continuous vertical and lateral adjustment keeps display rows and columns aligned for a clean video wall.
• Heavy-Duty Construction — Solid construction supports displays up to 55 inches per screen.
• Configurable — Arrays can be placed side by side to build larger video wall arrangements up to three screens tall.
• Ceiling System Compatibility — Works with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems, ordered separately.

Typical Applications

• Commercial meeting space — Suspends digital signage in lobbies and reception areas without consuming wall space.
• Multi-purpose room — Delivers a flexible overhead video wall for rooms with limited or glass walls.
• House of worship — Provides clear sight lines for lyrics and IMAG in open sanctuaries.
• Auditorium — Mounts wayfinding or presentation displays where ceiling suspension improves visibility.

Technical Specifications

Frequently Asked Questions

What display sizes does this mount support?
It is built to support displays up to 55 inches per screen. Confirm your specific display against current Legrand AV / Chief documentation.

Do I need additional parts to install it?
Yes. A ceiling plate and extension column are required and must be ordered separately. The system is compatible with 1.5" NPT and CPA pinned ceiling plate and column systems.

How are the displays aligned during installation?
Independent height and plumb knobs allow tool-free alignment, and ControlZone leveling provides micro-adjustment at every column intersection for a tight, continuous grid.

Can I expand the video wall later?
Yes. Arrays can be placed side by side to build larger configurations up to three screens tall.

How does it fit into an AV system?
This is the mechanical mounting structure. Coordinate display cabling, power, and signal distribution with your AV system design; integrated and external pathways keep the install clean.

What warranty applies and where do I get support?
The mount is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and installation support.
