Chief Ceiling Mount Side By Side Portrait - LCM2X1UP
Chief Ceiling Mount Side By Side Portrait - LCM2X1UP is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Chief Ceiling Mount Side By Side Portrait - LCM2X1UP
Product Overview

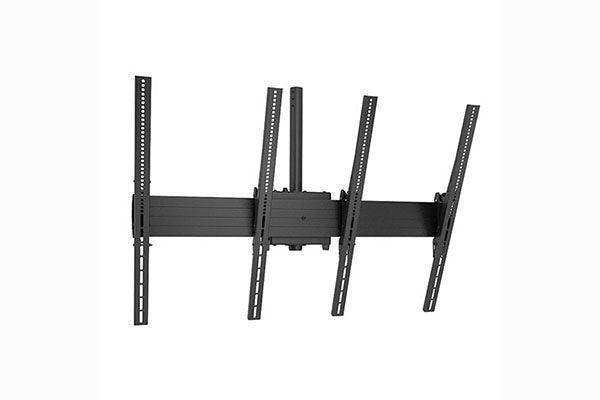

The Chief LCM2X1UP is a Fusion ceiling-mounted menu board solution that suspends two displays in a 2x1 portrait array where walls are not available. It is built for digital signage in prominent locations and can be combined to create longer menu boards. The single-drop design installs quickly and includes micro-adjustable roll and 360-degree swivel for precise positioning. It accommodates 40-to-55-inch screens and is TAA compliant.
Product Description
Chief's Fusion ceiling-mounted solutions make it possible to construct menu boards in prominent locations where walls aren't available, and units combine easily to create longer menu boards for digital signage installations. The LCM2X1UP uses a single drop for fast installation and provides micro-adjustable roll for perfect leveling within plus or minus 3 degrees. A 360-degree swivel sets optimal viewing angles, while a single horizontal extrusion keeps screens aligned. Tilting interfaces with Centris technology allow easy adjustment from +5 to -20 degrees, and tool-free screen engagement speeds installation and service. The mount fits 40-to-55-inch diagonal screens, and FCAX extension brackets accommodate larger screens up to 65 inches. A ceiling plate and extension column are required and must be ordered separately; the mount is compatible with traditional 1.5-inch NPT and the newer CPA pinned ceiling plate and column systems. Displays can be secured with optional padlock security, and the unit is TAA compliant. Verify screen compatibility with Chief MountFinder before ordering. Browse the full Chief collection for compatible ceiling plates, columns, and accessories.
Key Features
- Single-drop installation — One drop speeds ceiling installation of the 2x1 portrait array.
- Micro-adjustable roll — Levels the array within plus or minus 3 degrees for a precise result.
- 360-degree swivel — Sets optimal viewing angles after installation.
- Single horizontal extrusion — Keeps the displays aligned across the array.
- Centris tilt — Tilting interfaces adjust from +5 to -20 degrees.
- Tool-free screen engagement — Speeds installation and rear service access.
- 40-55 inch screens — Fits 40-to-55-inch diagonals, expandable to 65 inches with FCAX brackets.
- TAA compliant — Meets TAA requirements for government and public-sector procurement.
Typical Applications
- Ceiling-suspended digital signage in commercial meeting spaces
- Quick-service and retail menu boards
- Government space and lobby wayfinding
- House of worship and multi-purpose room signage
| Specification | Detail |
|---|---|
| Model / SKU | LCM2X1UP |
| Series | Fusion ceiling-mounted menu board |
| Configuration | 2x1 portrait |
| Screen size | 40-55 in; up to 65 in with FCAX |
| Roll adjustment | Micro-adjustable, +/- 3 degrees |
| Swivel | 360 degrees |
| Tilt | Centris, +5 to -20 degrees |
| Screen engagement | Tool-free |
| Ceiling plate / column | Required, sold separately; 1.5 in NPT and CPA compatible |
| Security | Optional padlock |
| TAA compliant | Yes |
Frequently Asked Questions
Q: Does the LCM2X1UP include a ceiling plate and column?
No. A ceiling plate and extension column are required and must be ordered separately. The mount is compatible with 1.5-inch NPT and CPA pinned systems.
Q: What screen sizes does it support?
It fits 40-to-55-inch diagonals, and FCAX extension brackets accommodate larger screens up to 65 inches.
Q: How do I level and aim the displays?
Micro-adjustable roll levels the array within plus or minus 3 degrees, a 360-degree swivel sets the angle, and Centris tilt adjusts from +5 to -20 degrees.
Q: Is it suitable for government installations?
Yes. The LCM2X1UP is TAA compliant for public-sector procurement.
Q: How are displays serviced?
Tool-free screen engagement allows quick installation and rear access for service.
Q: What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
