Chief FUSION™ Large Back-to-Back Stacked Ceiling Mounts - LCB1X2U
Product Overview

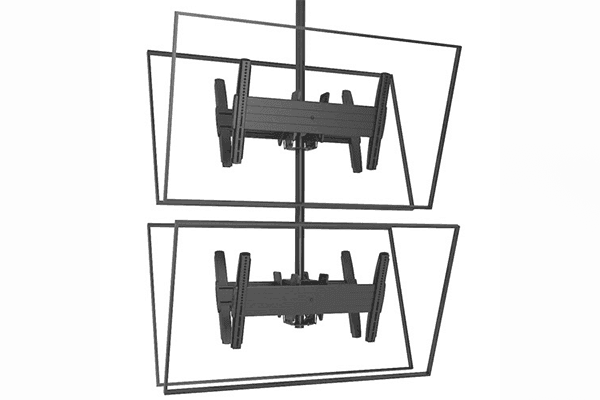

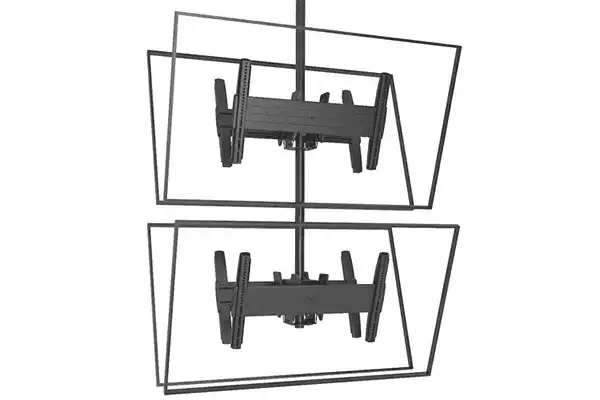

The Chief LCB1X2U is a FUSION large back-to-back stacked ceiling mount kit that installs two displays vertically from a single column for double-sided digital signage. It bundles two flat-panel ceiling mounts with a pre-drilled column so integrators can hang a 1x2 stacked array in high-traffic commercial spaces. Centris fingertip tilt and set locking points make multi-screen alignment fast and repeatable.
Product Description
Chief's FUSION ceiling-mounted solutions make it possible to install multiple displays vertically, which is well suited to double-sided digital signage in retail, lobby, and commercial meeting spaces. The LCB1X2U is a bundled solution containing two flat-panel ceiling mounts and one CPA048P 4ft pre-drilled column. Centris Technology provides a continuous range of fingertip tilt from +5 to -20 degrees, and four set locking points at 0, 5, 10, and 15 degrees eliminate guesswork when adjusting multiple screens. A simple on/off column connection eases installation and service, and tool-free screen engagement secures displays with optional padlock security. For longer drop lengths, order a CPA264 separately to connect to 1.5" NPT extension columns, or a CPA263 separately to connect to pin-connection columns.
Key Features
- Vertical 1x2 stacking — Mounts two displays vertically from a single column for double-sided digital signage.
- Bundled kit — Includes two flat-panel ceiling mounts and one CPA048P 4ft pre-drilled column.
- Centris fingertip tilt — Provides a continuous tilt range from +5 to -20 degrees.
- Set locking points — Four locking points at 0, 5, 10, and 15 degrees eliminate guesswork when aligning multiple screens.
- On/off column connection — A simple connection eases installation and ongoing service.
- Tool-free engagement — Displays engage without tools and can be secured with optional padlock security.
- Extension-ready — Compatible with CPA264 (1.5" NPT) or CPA263 (pin-connection) extension columns, ordered separately, for longer drops.
Typical Applications
- Retail and commercial meeting space digital signage
- Lobby and multi-purpose room double-sided displays
- Government space wayfinding and information screens
- House of worship and auditorium overhead messaging
Technical Specifications
| Type | FUSION back-to-back stacked ceiling mount kit |
| Configuration | 1x2 vertical, back-to-back |
| Tilt Range | +5 to -20 degrees (Centris fingertip tilt) |
| Tilt Locking Points | 0, 5, 10, and 15 degrees |
| Security | Tool-free engagement with optional padlock |
| Extension Columns | CPA264 (1.5" NPT) or CPA263 (pin-connection), sold separately |
| Model | LCB1X2U |
Kit Contents
| Qty | Item |
| 2 | Flat-panel ceiling mounts |
| 1 | CPA048P 4ft pre-drilled column |
Frequently Asked Questions
What is included in the kit?
The LCB1X2U bundle includes two flat-panel ceiling mounts and one CPA048P 4ft pre-drilled column for a 1x2 stacked, back-to-back installation.
How are multiple screens kept aligned?
Centris fingertip tilt offers a continuous +5 to -20 degree range, and four set locking points at 0, 5, 10, and 15 degrees let installers match the tilt of each screen without guesswork.
Can I extend the drop length?
Yes. Order a CPA264 separately for 1.5" NPT extension columns or a CPA263 separately for pin-connection columns to achieve a longer drop.
How are displays secured?
Tool-free screen engagement holds the displays in place and can be secured further with optional padlock security.
What environments is it suited to?
The vertical, double-sided configuration is well suited to retail, lobby, and commercial digital signage and wayfinding.
What warranty applies?
This Chief mount kit is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
