Chief FUSION™ Large Flat Panel Ceiling Mount. Portrait - LCB1UP
Product Overview

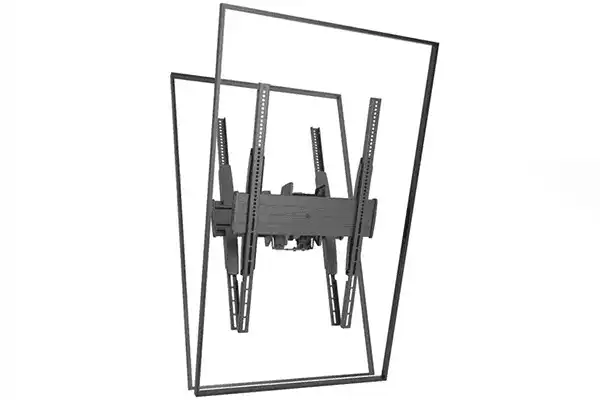

The Chief LCB1UP is a Fusion large flat panel back-to-back ceiling mount configured for two displays in portrait orientation. It is engineered for digital signage where screens face opposite directions from a single ceiling drop. Centris fingertip tilt and four set locking points make multi-screen adjustment fast and repeatable. A ceiling plate and extension column are required and ordered separately.
Product Description
Chief’s Fusion flat panel ceiling mounts are installer-inspired and deliver precise display positioning with flexible adjustments for large screens. The LCB1UP holds two displays in a portrait, back-to-back layout, making it a strong fit for digital signage in a commercial meeting space, government space, or multi-purpose room. Centris fingertip tilt lets installers angle screens effortlessly, while continuous tilt ranges with four set locking points eliminate guesswork when adjusting multiple screens. A simple on/off column connection speeds installation and service, and tool-free screen engagement with optional padlock security keeps displays secure. The mount swivels to a preferred viewing angle and supports a VESA mounting pattern range of 200 x 100 mm to 460 x 800 mm. It is UL Listed and finished in black. A ceiling plate and extension column are required and sold separately, with compatibility for traditional 1.5" NPT and CPA pinned ceiling plate and column systems. Explore compatible plates and columns in the Chief collection.
Key Features
- Back-to-Back Portrait Layout — Mounts two portrait displays facing opposite directions from one ceiling drop.
- Centris Fingertip Tilt — Centris technology lets installers adjust display tilt effortlessly.
- Repeatable Tilt — Continuous tilt with four set locking points removes guesswork across multiple screens.
- Simple On/Off Connection — A quick column connection eases installation and service.
- Tool-Free, Secure Engagement — Tool-free screen engagement supports optional padlock security.
- Swivel Flexibility — The mount swivels to the preferred viewing angle.
- Wide VESA Range — Supports VESA patterns from 200 x 100 mm to 460 x 800 mm.
- UL Listed — Certified UL Listed for commercial installation confidence.
Typical Applications
- Commercial meeting space
- Government space
- Multi-purpose room
- Conference room
- Auditorium
Technical Specifications
| Mount Type | Fusion large flat panel back-to-back ceiling mount |
| Number of Displays | 2 |
| Orientation | Portrait |
| VESA Mounting Pattern | 200 x 100 – 460 x 800 mm |
| Tilt | +/- 5° and -20° |
| Roll Adjustment | +/- 3° |
| Overall Dimensions | 32.5" x 20.8" x 10.2" (H x W x D) |
| Shipping Weight | 49 lbs (22.2 kg) |
| Color | Black |
| Certifications | UL Listed |
| Required (Sold Separately) | Ceiling plate, extension column (1.5" NPT or CPA) |
| Brand | Chief (Legrand AV) |
Frequently Asked Questions
How many displays does the LCB1UP hold and in what orientation?
It holds two displays in a back-to-back, portrait orientation from a single ceiling drop.
What VESA patterns are supported?
It supports VESA mounting patterns from 200 x 100 mm to 460 x 800 mm.
What is required to complete the installation?
A ceiling plate and extension column are required and sold separately. The mount is compatible with both 1.5" NPT and CPA pinned ceiling plate and column systems.
How does it simplify multi-screen alignment?
Centris fingertip tilt plus four set locking points provide repeatable tilt settings, removing guesswork when adjusting several screens.
Is it certified for commercial use?
Yes. The LCB1UP is UL Listed.
What is the warranty?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
