Chief ADJ. PIPE 6" TO 9" - CMS006009

Product Overview

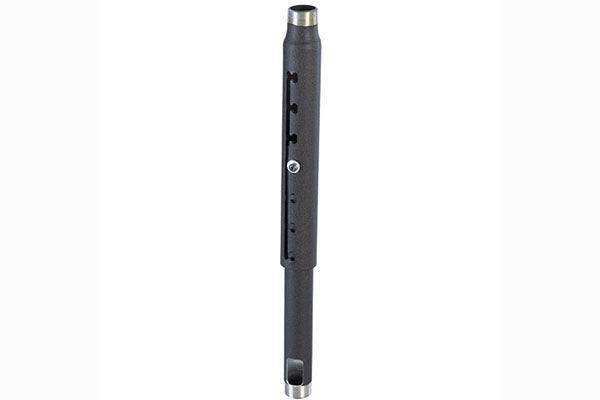

The Chief CMS006009 adjustable extension column provides 6" to 9" of height adjustment for ceiling-mounted projectors and displays in commercial AV installations. Built from a 1.5" NPT column threaded on both ends, it pairs with any Chief 1.5" NPT ceiling plate or accessory to set precise drop height. A notched design allows adjustment without full disassembly, saving installation time in conference room, classroom, and digital signage projects.

Product Description

The CMS006009 is an adjustable column that lets integrators fine-tune the suspended height of a projector or flat panel in 1" increments between 6" and 9". Because the column uses a notched, telescoping design, height changes can be made without disassembling the mount, which simplifies leveling and future adjustments. An included set screw locks the selected length and adds stability once the drop is dialed in. The column consists of a 1.5" NPT pipe threaded on both ends, so it threads directly into any Chief 1.5" NPT ceiling plate, coupler, or mounting accessory for a secure, code-conscious installation. This black-finish column is well suited to drop-ceiling and hard-ceiling environments where a clean, adjustable column run is required. For fixed-length alternatives, see the Chief fixed columns such as the CMS006 and CMS009 in the Chief collection.

Key Features

• 6" to 9" Adjustment — Provides height adjustment in 1" increments to dial in the exact drop height.
• Notched Design — Allows length adjustment without disassembling the column or mount.
• Locking Set Screw — Includes a set screw that secures the selected length and adds stability.
• 1.5" NPT Column — Threaded on both ends for direct connection to compatible plates and accessories.
• Chief Accessory Compatibility — Works with any Chief 1.5" NPT ceiling plate or mounting accessory.
• TAA Compliant — Meets TAA requirements for government and public-sector procurement.

Technical Specifications
