Chief 55" Portrait On-Wall Kiosk W/Glass Blk - LW55UBPG
Product Overview

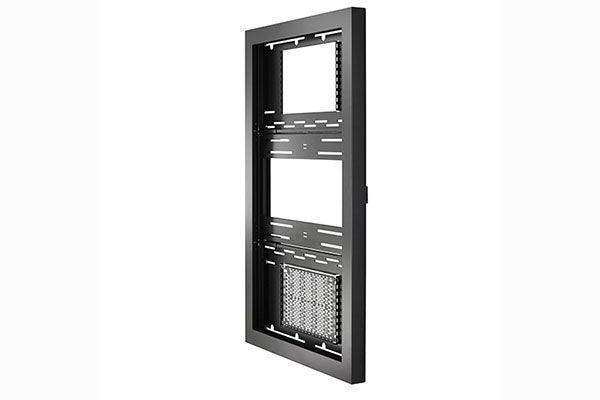

The Chief LW55UBPG is a black Impact on-wall kiosk for 55" portrait displays with factory-bonded tempered protective glass. The 5/32" tempered glass shields the LCD from sharp objects and common impacts, making it suited to unattended, high-traffic public spaces. A depth-adjustable exterior frame and tamperproof latch round out a secure, serviceable enclosure. It is a commercial-grade signage solution for lobbies, transit, retail, and wayfinding.
Product Description
The Impact on-wall kiosk brings flexibility to the digital signage enclosure market while maintaining a clean aesthetic that complements a variety of commercial environments. Integrated 5/32" thick tempered glass is factory bonded to the enclosure with industrial adhesives, protecting the LCD display from sharp objects and common impacts in exposed locations. A depth-adjustable exterior frame supports a wide range of displays, and a wall protrusion of 4" (101 mm) or less can be achieved using flat panels less than 2.75" (70 mm) deep. An integrated wall reveal compensates for uneven walls to keep the frame plumb and provides passive cooling. The exclusive design keeps the display mounted to the frame when opened for front service and maintenance access, and reversible hinges help avoid installation obstructions. The engagement latch can be secured with tamperproof hardware, and Middle Atlantic's Lever Lock technology is integrated to mount components without cutting into walls. A large empty center backing enables use with in-wall boxes and is compatible with PAC525 and PAC526 series in-wall boxes, including power options. Bezel size varies per product, so reference the technical drawings and specification sheet for different image diagonals. Browse comparable on-wall enclosures in the Chief collection.
Key Features
- Protective Tempered Glass — Factory-bonded 5/32" tempered glass protects the LCD from sharp objects and common impacts.
- Depth-Adjustable Frame — The exterior frame supports a wide range of displays.
- Low Wall Protrusion — A protrusion of 4" (101 mm) or less is achievable with flat panels under 2.75" (70 mm) deep.
- Integrated Wall Reveal — Compensates for uneven walls to keep the frame plumb and provides passive cooling.
- Front Service Access — The exclusive design keeps the display mounted to the frame when opened for service.
- Tamperproof Latch — The engagement latch can be secured with tamperproof hardware.
- Lever Lock Storage — Integrated Middle Atlantic Lever Lock technology mounts components without cutting into walls.
- In-Wall Box Compatible — The large empty center accepts PAC525 and PAC526 series in-wall boxes, including power options.
Typical Applications
- Commercial meeting space — Impact-protected portrait signage in lobbies and open areas.
- Government space — Secure public-facing displays in civic and transit buildings.
- House of worship — Wayfinding and announcement displays in shared spaces.
- Multi-purpose room — Protected wall-mounted signage for high-traffic areas.
Technical Specifications
| Model | LW55UBPG |
| Type | Impact on-wall kiosk with protective glass |
| Nominal Display Size | 55" |
| Orientation | Portrait |
| Color | Black |
| Protective Glass | 5/32" tempered, factory bonded |
| Wall Protrusion | 4" (101 mm) or less with panels under 2.75" (70 mm) deep |
| Cooling | Passive via integrated wall reveal |
| Security | Tamperproof engagement latch |
| Storage | Integrated Lever Lock; PAC525 / PAC526 in-wall box compatible |
| Mounting | On-wall |
Frequently Asked Questions
Q: What does the protective glass do?
Factory-bonded 5/32" tempered glass protects the LCD display from sharp objects and common impacts in exposed, high-traffic locations.
Q: What display does the LW55UBPG fit?
It is configured for a 55" portrait display, and the depth-adjustable frame supports a range of panels. Bezel size varies per product, so reference the technical drawings and specification sheet.
Q: How far does it stand off the wall?
A wall protrusion of 4" (101 mm) or less can be achieved using flat panels less than 2.75" (70 mm) deep.
Q: How is the display serviced after installation?
The exclusive design keeps the display mounted to the frame when opened, and reversible hinges help avoid service obstructions.
Q: Where do media players and power go?
Integrated Lever Lock technology mounts components, and the large empty center accepts PAC525 and PAC526 series in-wall boxes, including power options.
Q: What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
