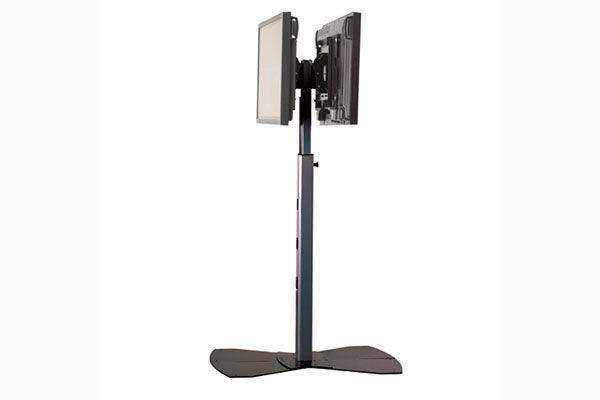

Chief Large Flat Panel Dual Display Floor AV Stand - PF2UB
Product Overview
The Chief PF2UB large flat panel floor stand supports two displays back-to-back for double-sided digital signage and corporate presentations in open commercial spaces. Telescoping height adjustment and integrated cable management make it a clean, freestanding solution where wall or ceiling mounting isn't practical. It holds 42" to 86" displays at up to 200 lbs per display and supports both landscape and portrait orientation. Post-installation leveling roll and +/- 15 degree tilt allow precise final positioning.
Product Description
The PF2UB is a back-to-back dual-display floor stand built for digital signage and corporate presentation environments. Two displays mount on opposite faces of the column so content reads from both directions in a lobby, retail floor, or all-hands room. Telescoping height adjustment provides 34" of manual travel, positioning the center of each display between 51.38" and 85.38" (1305 - 2169 mm) from the floor for both seated and standing audiences. The universal interface accommodates mounting patterns from 200 x 200 mm up to 862 x 517 mm, fitting typical 42" to 86" commercial displays at a weight capacity of 200 lbs per display. Integrated cable management keeps signal and power cabling concealed for a professional appearance, and post-installation leveling roll plus +/- 15 degree tilt allow precise alignment after the displays are mounted. The stand ships in black with a shipping weight of 197 lbs (89.36 kg). For a single-column mobile alternative, see the Chief PFCUB-G mobile AV cart, or browse more freestanding options in the Chief collection.
Key Features
- Back-to-back dual display — Supports two displays on opposite faces for double-sided digital signage.
- Telescoping height adjustment — Provides 34" (864 mm) of manual travel for seated and standing viewing.
- Universal compatibility — Fits mounting patterns from 200 x 200 mm to 862 x 517 mm for 42" to 86" displays.
- 200 lb per-display capacity — Weight capacity is rated per display for heavy commercial panels.
- Tilt and roll — +15 / -15 degree tilt with post-installation leveling roll for precise alignment.
- Integrated cable management — Conceals signal and power cabling for a clean installation.
- Dual orientation — Supports both landscape and portrait display orientation.
Typical Applications
- Commercial meeting space
- All-hands room
- Multi-purpose room
- Auditorium
- Broadcast studio
Technical Specifications
| Brand | Chief (Legrand AV) |
| Model / SKU | PF2UB |
| Mount Type | Dual-display floor AV stand (back-to-back) |
| Number of Monitors | 2 |
| Typical Screen Sizes | 42" - 86" |
| Weight Capacity | 200 lbs (90.7 kg) per display |
| Mounting Pattern (Universal) | 200 x 200 mm - 862 x 517 mm |
| Center of Display to Floor | 51.38" - 85.38" (1305 - 2169 mm) |
| Manual Height Adjustment | 34" (864 mm) |
| Tilt | +15° / -15° |
| Post-Installation Leveling Roll | Yes |
| Orientation | Landscape, Portrait |
| Solution Type | Universal |
| Shipping Weight | 197 lbs (89.36 kg) |
| Color | Black |
Frequently Asked Questions
Q: What display sizes and weights does the PF2UB support?
It is rated for 42" to 86" displays at up to 200 lbs per display, with a universal interface fitting mounting patterns from 200 x 200 mm to 862 x 517 mm.
Q: How high can the displays be set?
Telescoping height adjustment provides 34" of manual travel, placing the center of each display between 51.38" and 85.38" (1305 - 2169 mm) from the floor.
Q: Can it show content on both sides?
Yes. The PF2UB mounts two displays back-to-back, making it well suited to double-sided digital signage.
Q: How are cables managed?
Integrated cable management routes signal and power cabling through the stand for a clean, concealed installation.
Q: Can the displays be tilted and leveled?
Yes. The stand offers +15 / -15 degree tilt and post-installation leveling roll for precise alignment.
Q: Is the stand covered by a warranty?
Yes. This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
