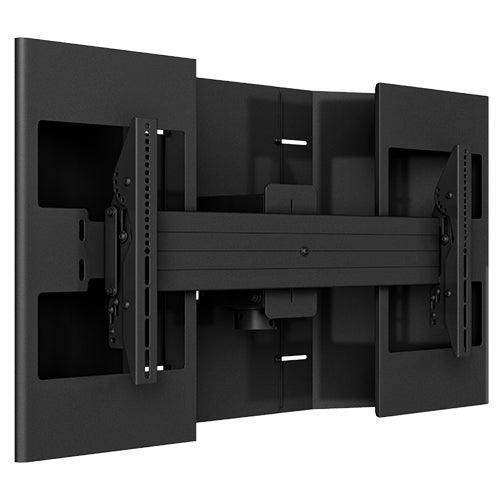

Chief Large Outdoor Flat Panel Single Ceiling and Pedestal Mount System - OD45

Product Overview

The Chief OD45 is a complete large outdoor flat panel single ceiling and pedestal mount system, bundling the mount, a 4-5' outdoor column, concrete plate, and plate cover into one kit. It is built to withstand rain, humidity, ocean air, sun exposure, and high winds for outdoor digital signage and wayfinding. The kit supports either ceiling or floor (pedestal) installation. It is a weatherproof, commercial-grade solution for stadiums, transit hubs, drive-throughs, and outdoor public spaces.

Product Description

The Chief OD45 outdoor ceiling and pedestal installation system is built to withstand rain, humidity, and ocean air, as well as sun exposure and high winds. The system's wind compatibility is based on a 2000 ft-lbs maximum moment force, used in engineering calculations to confirm that a wide range of install configurations meet local safety requirements. This bundle includes every piece needed for a single ceiling or floor-mounted installation with a 4-5' column. The system comes in separate pieces — the mount, column, and plate — for better customization to the installation, and the four-step installation process keeps each piece separate for a safer, more manageable lifting load. A tilt range of +7.6 to -20 degrees with set locking points eliminates guesswork when adjusting multiple displays, and a universal interface fits most indoor and outdoor displays up to an 800 x 400 mm maximum VESA pattern. The OD45 builds on the OLCM1U single mount. Browse comparable Chief outdoor and ceiling mounting solutions in the Chief collection.

Key Features

• Complete Outdoor System — Bundles the mount, 4-5' column, plate, and plate cover for a single-display install.
• Weatherproof Design — Meets UL 2442 Part 2 for outdoor use with corrosion-resistant paint, UV-rated plastics, and stainless-steel hardware.
• Wind Compatible — Rated to a 2000 ft-lbs maximum moment force for use in engineering calculations across varied configurations.
• Customizable Three-Piece Build — Separate mount, column, and plate adapt to the specific installation.
• Safer Installation — The four-step process keeps each piece separate for a more manageable lifting load.
• Set-Point Tilt — A +7.6 to -20 degree tilt range with locking points eliminates guesswork when aligning displays.
• Ceiling or Pedestal Mount — Supports both ceiling and floor (pedestal) configurations.
• Universal Interface — Fits most indoor and outdoor displays up to an 800 x 400 mm maximum VESA pattern.

Typical Applications

• Government space — Exterior information and wayfinding displays at civic and transit facilities.
• Commercial meeting space — Outdoor signage at corporate campuses and entrances.
• Broadcast studio — Outdoor monitor mounting for on-location production.
• Multi-purpose room — Covered outdoor areas that require durable display mounting.

Technical Specifications

Frequently Asked Questions

Q: What is included in the OD45 system?
It includes the OLCM1U large single mount, an ODAC0405B 4-5' outdoor column, an ODA330B concrete ceiling and pedestal plate, and an ODAPCVRB plate cover — everything needed for a single ceiling or floor installation.

Q: Is it rated for outdoor use?
Yes. The weatherproof design meets UL 2442 Part 2 for outdoor use with corrosion-resistant paint, UV-rated plastics, and stainless-steel hardware.

Q: Can it be ceiling or floor mounted?
Both. The system supports ceiling installation and floor (pedestal) installation.

Q: What displays does it fit?
The universal interface fits most indoor and outdoor displays up to an 800 x 400 mm maximum VESA pattern.

Q: What does the wind rating mean for my install?
The 2000 ft-lbs maximum moment force is used in engineering calculations to confirm a configuration meets local safety requirements. Contact Creation Networks for support.

Q: What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
