Chief 2 X 2 Ceiling Mounted Array Assembly - LCM2X2U

Product Overview

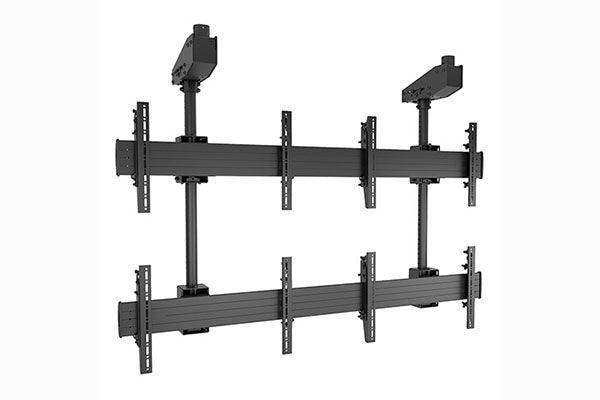

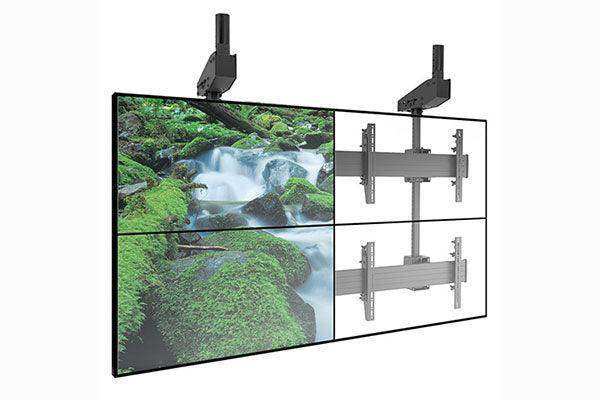

The Chief LCM2X2U is a Fusion large ceiling-mounted array assembly that suspends a 2x2 video wall from the ceiling for commercial digital signage. This ceiling-mounted video wall mount holds four displays in a two-wide by two-high configuration where wall mounting is not practical, such as open lobbies and retail floors. It supports displays up to 55" at 125 lbs (56.7 kg) per screen. Micro-adjustment at every column intersection lets integrators close seams for a tight, uniform video wall.

Product Description

The Chief Fusion Micro-Adjustable Large Ceiling Mounted 2x2 solution is engineered for landscape video walls in open commercial spaces where a supporting wall is unavailable. The assembly holds four displays in a 2x2 array and supports panels up to 55" at 125 lbs (56.7 kg) per screen, covering a wide range of commercial-grade displays. Tool-free independent height and plumb adjustment knobs let a technician align each display without removing it from the structure, and micro-height and leveling adjustment at all column intersection points provides infinite vertical and lateral fine-tuning to keep display rows and columns tight. A tilt range of +5 to -20 degrees helps direct content toward the viewing audience below. Multiple assemblies can be added side by side to create wider video wall arrangements, and the configuration can be built up to three screens tall for larger installations. The ceiling-mounted approach keeps floor space clear while presenting a prominent digital signage surface. Browse comparable Chief video wall and ceiling mounting solutions, including portrait variants, in the Chief collection.

Key Features

• 2x2 Ceiling-Mounted Array — Suspends four displays in a two-wide by two-high video wall where wall mounting is not practical.
• Up to 55" Displays — Supports commercial-grade panels up to 55" at 125 lbs (56.7 kg) per screen.
• Tool-Free Alignment — Independent height and plumb adjustment knobs align each display without removing it from the structure.
• Micro-Adjustment at Intersections — Micro-height and leveling adjustment at all column intersection points provides infinite vertical and lateral fine-tuning for tight seams.
• Adjustable Tilt — A +5 to -20 degree tilt range directs content toward the audience below.
• Expandable Configuration — Assemblies can be added side by side and built up to three screens tall for larger video walls.

Typical Applications

• Commercial Meeting Space — Suspended video walls in open lobbies and reception areas.
• Multi-Purpose Room — Ceiling-mounted displays that keep floor space clear.
• Auditorium — Large-venue informational and presentation video walls.
• Broadcast Studio — Overhead landscape display arrays for on-set content.

Technical Specifications

Frequently Asked Questions

What size displays does the LCM2X2U support?
It supports displays up to 55" at 125 lbs (56.7 kg) per screen in a 2x2 array.

How are the displays aligned?
Tool-free independent height and plumb knobs, plus micro-height and leveling adjustment at all column intersection points, provide infinite vertical and lateral fine-tuning for tight seams.

Can the array be expanded?
Yes. Multiple assemblies can be added side by side, and the configuration can be built up to three screens tall.

Is the mount suitable for open ceilings without a supporting wall?
Yes. The ceiling-mounted design presents a video wall in open spaces while keeping floor space clear. Confirm structural ceiling support for the total load during planning.

Does it tilt for overhead viewing?
Yes. A +5 to -20 degree tilt range directs content toward the audience below.

What warranty applies?
This mount is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support details.
