Chief 2 X 2 AV CEILING ENCLOSURE W/COLUMN - CMS492C

Product Overview

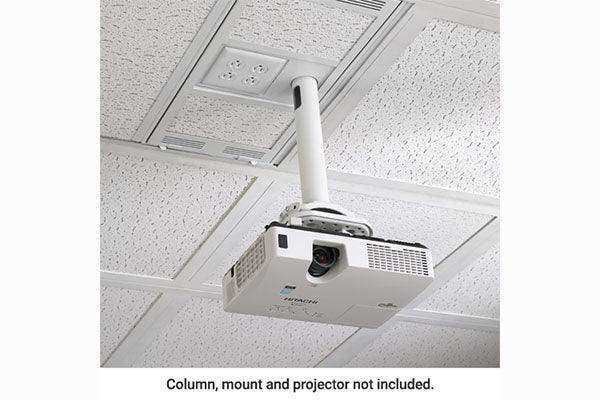

The Chief CMS492C is a 2' x 2' AV ceiling enclosure with column that conceals AV equipment above the ceiling tile while supporting a projector below. It accepts a 1.5" NPT column drop so a projector can be mounted within the same tile grid for a clean, professional ceiling line in classrooms and conference rooms. The enclosure provides a full 100 lb (45 kg) weight capacity across the projector plate and AV tray. UL evaluation for air-handling spaces and TAA compliance make it well suited to commercial and government installations.

Product Description

The CMS492C hides projectors, switchers, and other AV components above a standard 2' x 2' ceiling tile while presenting only the projector and column drop to the room below. A drop carriage door improves accessibility and serviceability, providing full access to the equipment inside without removing the enclosure. The detachable power housing can be pre-installed by electricians on site and assembled to the storage box later, streamlining trade coordination on larger projects. Power options support up to two single-gang or one dual-gang outlet, and four nested knockouts accept 1-1/4", 1", and 1/2" diameter conduit. Optimal pipe flexibility within the tile reduces reliance on image correction, helping preserve image quality on the projector. The AV tray supports a variety of components and ships with one shelf, with a second shelf (CMSUNV2) and 1 RU rack rail brackets (CMS1RU) available separately. Overall weight capacity is 100 lb (45 kg), with 50 lb (22 kg) allocated to the projector ceiling plate and 25 lb (11 kg) per shelf location. The unit ships with speed-connect installation hardware and uses lightweight construction for one-person installation. It is UL evaluated for use in air-handling spaces per NEC Article 300.22 sub-clause (C) and is TAA compliant. Browse more ceiling and projector mounting hardware in the Chief collection.

Key Features

• Concealed AV storage — Hides AV equipment above a 2' x 2' ceiling tile with only the projector and column visible below.
• Column drop for projectors — Supports a 1.5" NPT column drop so the projector mounts within the same tile grid.
• Drop carriage door — Improves accessibility and serviceability with full access to the equipment inside.
• Detachable power housing — Lets electricians pre-wire on site and assemble to the storage box later.
• Flexible power and conduit — Accepts up to two single-gang or one dual-gang outlet plus four nested knockouts for 1-1/4", 1", and 1/2" conduit.
• Configurable AV tray — Ships with one shelf and supports an optional second shelf (CMSUNV2) and 1 RU rack rail brackets (CMS1RU).
• 100 lb weight capacity — Supports 50 lb (22 kg) at the projector plate and 25 lb (11 kg) per shelf for a 100 lb (45 kg) total.
• Code-ready construction — UL evaluated for air-handling spaces per NEC 300.22(C), TAA compliant, and light enough for one-person installation.

Typical Applications

• Classrooms and training rooms with ceiling-mounted projectors
• Conference rooms and boardrooms
• Government spaces requiring TAA-compliant hardware
• Multi-purpose rooms and commercial meeting spaces
• Air-handling (plenum) ceiling installations

Technical Specifications

Frequently Asked Questions

What does the CMS492C mount support?
It conceals AV equipment above a 2' x 2' ceiling tile and supports a projector via a 1.5" NPT column drop within the same tile grid.

How much weight can it hold?
The total capacity is 100 lb (45 kg), with 50 lb (22 kg) at the projector plate and 25 lb (11 kg) per shelf location.

Can it be installed in a plenum or air-handling space?
Yes. The enclosure is UL evaluated for use in air-handling spaces as defined by NEC Article 300.22 sub-clause (C).

Can the electrical be pre-wired?
Yes. The detachable power housing lets electricians pre-install wiring on site and assemble it to the storage box later.

Is it suitable for government projects?
Yes. The CMS492C is TAA compliant, making it appropriate for government and other procurement-sensitive installations.

What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for warranty terms and support.
