Chief 2 X 2 AV CEILING ENCLOSURE - CMS492

Product Overview

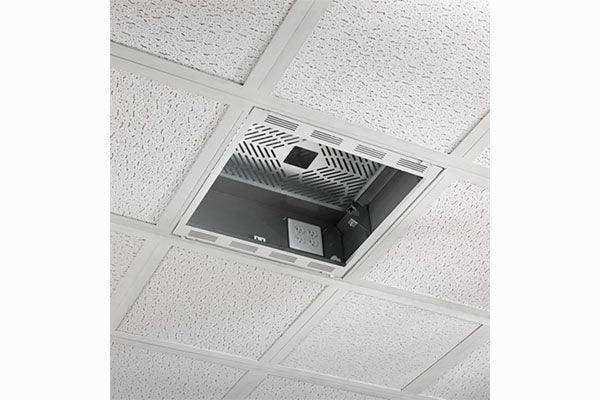

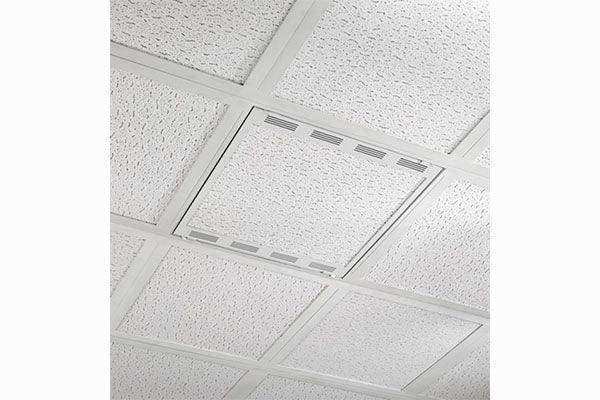

The Chief CMS492 is a 2' x 2' AV ceiling enclosure that conceals AV equipment above a standard ceiling tile for a clean, professional look in classrooms and conference rooms. It supports a variety of components on its included AV tray and accepts an optional projector ceiling plate. The lightweight construction enables one-person installation. It is UL evaluated for use in air-handling (plenum) spaces and is TAA compliant.

Product Description

The CMS492 hides projectors, switchers, and other AV gear out of sight above a 2' x 2' ceiling tile, keeping rooms uncluttered while maintaining easy access for service. A detachable power housing can be pre-installed by electricians on site and assembled to the storage box later, streamlining coordination between trades. The housing accepts up to two single-gang or one dual-gang outlet, and four nested knockouts handle 1-1/4 inch, 1 inch, and 0.5 inch conduit, installed inside the box or facing the room. Built-in ventilation helps manage heat from active equipment. The AV tray supports a range of components and ships with one shelf; a second shelf (CMSUNV2) and 1 RU rack rail brackets (CMS1RU) are available separately. Overall weight capacity is 100 pounds, with up to 50 pounds for a projector ceiling plate and 25 pounds per shelf location. The enclosure ships with speed-connect installation hardware and is UL evaluated for use in air-handling spaces as defined by NEC Article 300.22, sub-clause (C). It is TAA compliant for government and institutional procurement.

Key Features

• Concealed installation — Hides AV equipment above a 2' x 2' ceiling tile for a clean, professional appearance.
• Detachable power housing — Can be pre-installed by electricians and assembled to the storage box later.
• Flexible outlets — Accepts up to two single-gang or one dual-gang outlet, inside the box or facing the room.
• Conduit knockouts — Four nested knockouts for 1-1/4", 1", and 0.5" conduit.
• Built-in ventilation — Helps manage heat from active AV components.
• Configurable AV tray — Ships with one shelf; a second shelf and 1 RU rack rail brackets are available separately.
• 100 lb capacity — Supports up to 50 lb for a projector plate and 25 lb per shelf location.
• Plenum rated and TAA compliant — UL evaluated for air-handling spaces per NEC 300.22(C).

Typical Applications

• Classroom and training room AV concealment
• Conference room and boardroom equipment storage
• Government space installations requiring TAA-compliant hardware
• Multi-purpose room ceiling-mounted AV systems

Technical Specifications

Frequently Asked Questions

What does the CMS492 do?
It conceals AV equipment above a standard 2' x 2' ceiling tile, providing a clean look in classrooms and conference rooms while keeping gear accessible for service.

How much weight does it support?
Overall capacity is 100 lbs (45 kg), including up to 50 lbs for a projector ceiling plate and 25 lbs per shelf location.

Is it suitable for plenum (air-handling) spaces?
Yes. It is UL evaluated for use in air-handling spaces as defined by NEC Article 300.22, sub-clause (C).

Can I add more shelving or rack rails?
Yes. It ships with one shelf; a second shelf (CMSUNV2) and 1 RU rack rail brackets (CMS1RU) are available separately.

Is it TAA compliant?
Yes, making it suitable for government and institutional procurement. Browse more Chief AV solutions for related hardware.

What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
