Chauvet Professional WELL CONNECT Battery-Powered Wireless DMX/CRMX Transceiver - WELLCONNECT
Chauvet Professional WELL CONNECT Battery-Powered Wireless DMX/CRMX Transceiver - WELLCONNECT is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Chauvet Professional WELL CONNECT Battery-Powered Wireless DMX/CRMX...
Product Overview
The CHAUVET Professional WELL CONNECT is a compact, battery-powered wireless transceiver that enables robust W-DMX/CRMX data transmission and flexible, app-driven control over any lighting system. Designed to work seamlessly with the ConnectFX app, it offers unmatched portability, versatility, and ease of use for event professionals and system integrators. Whether paired with WELL fixtures or making an entire lighting rig wireless, WELL CONNECT delivers reliable W-DMX/CRMX transmission and direct playback in a rugged, professional-grade package.
Features
- Wireless Control Hub — Uses Bluetooth and W-DMX/CRMX to control WELL fixtures or any DMX lighting system.
- App-Driven Operation — Pairs seamlessly with the ConnectFX app on iOS and Android for intuitive control over scenes and effects.
- Flexible Output Options — Supports both wireless and wired DMX protocols for reliable signal distribution in any lighting setup.
- 12-Hour Battery Life — An integrated lithium-ion battery delivers all-day wireless operation, while a USB-C port provides continuous power when needed.
- Onboard Playback — Trigger pre-programmed scenes directly from the unit’s display without an external console.
- Rugged and Road-Ready — Durable aluminum housing and an M12 threaded bolt ensure quick, secure mounting in demanding environments.
- Smart Firmware Management — A simple web-based user interface allows for easy firmware updates and device configuration.
Specifications
Construction / Physical
- Dimensions: 6.89 x 7.01 x 2.56 in (175 x 178 x 65 mm)
- Weight: 1.8 lb (0.9 kg)
- Exterior Color: Black
- Housing Material: Aluminum alloy

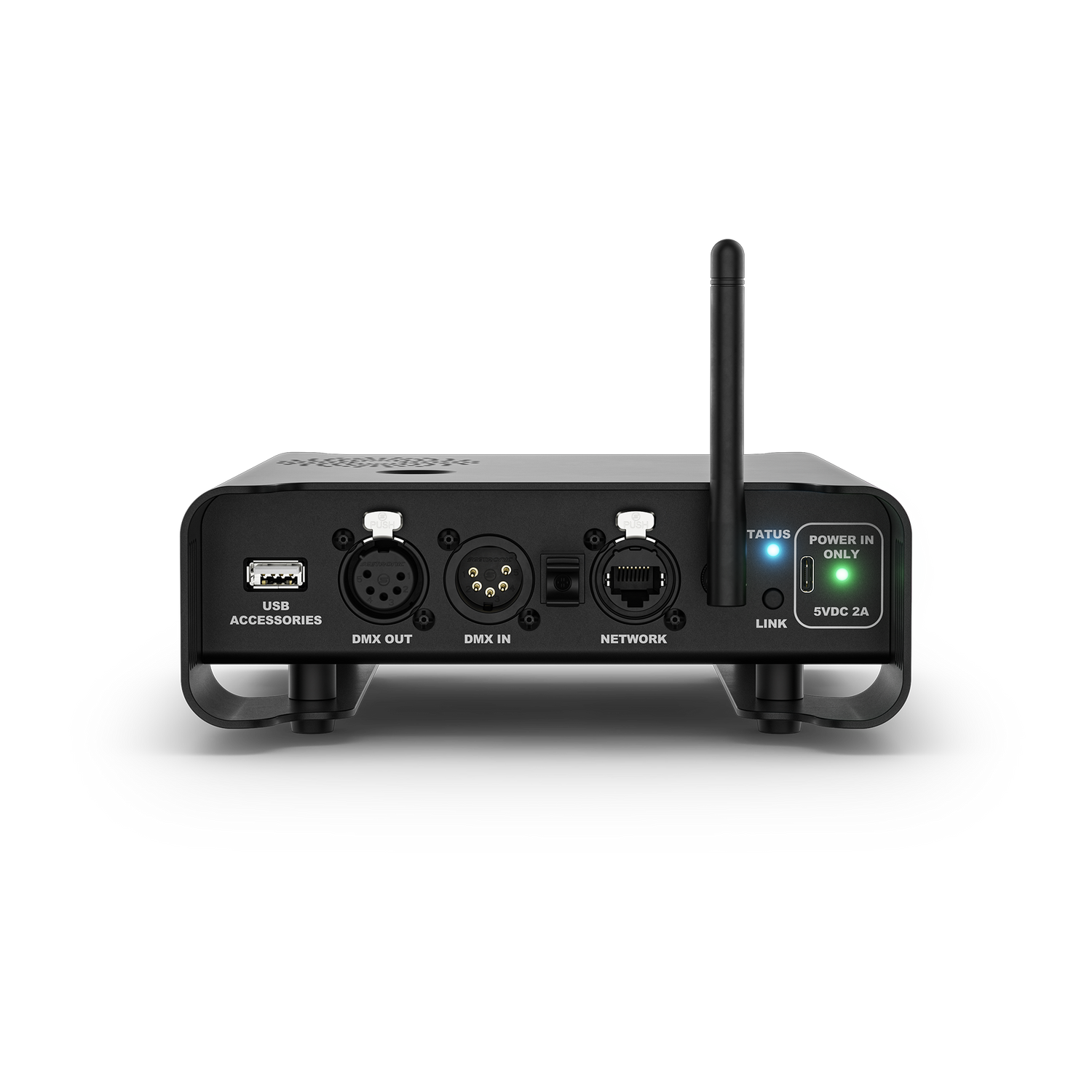

Connections
- Power Input: USB-C
- Data Connectors: 5-pin XLR IN/OUT, USB-A Female, RJ45
Control
- Control Protocol: Chauvet CONNECT app, Art-Net, DMX, W-DMX, sACN
Electrical
- Input Voltage: 5 VDC, 2A via USB-C
Battery
- Battery Type: Lithium Ion (rechargeable)
- Battery Charge Time: 8 hours
- Battery Life: 12 hours
- Battery Power: 12 V, 24 Ah
Certifications / Qualifications
- Certifications: CE, FCC, UKCA
- IP Rating: IP20, dry location
- Operating Temperature: -4 °F to 113 °F (-20 °C to 45 °C)
What's Included
- WELL CONNECT
- EPSU USB-A
- USB-A to USB-C cable
Required Software
Chauvet CONNECT app (available for iOS and Android).
