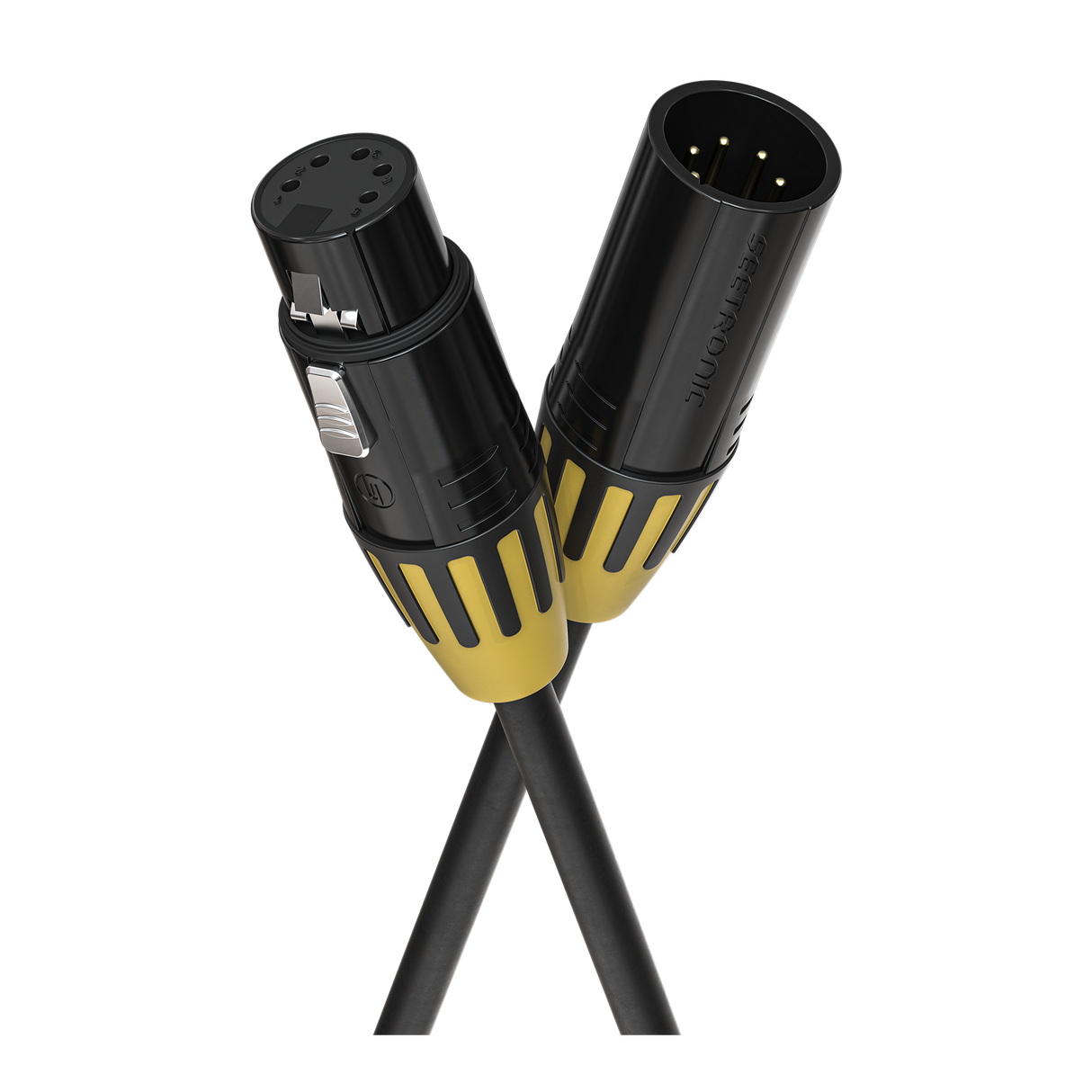

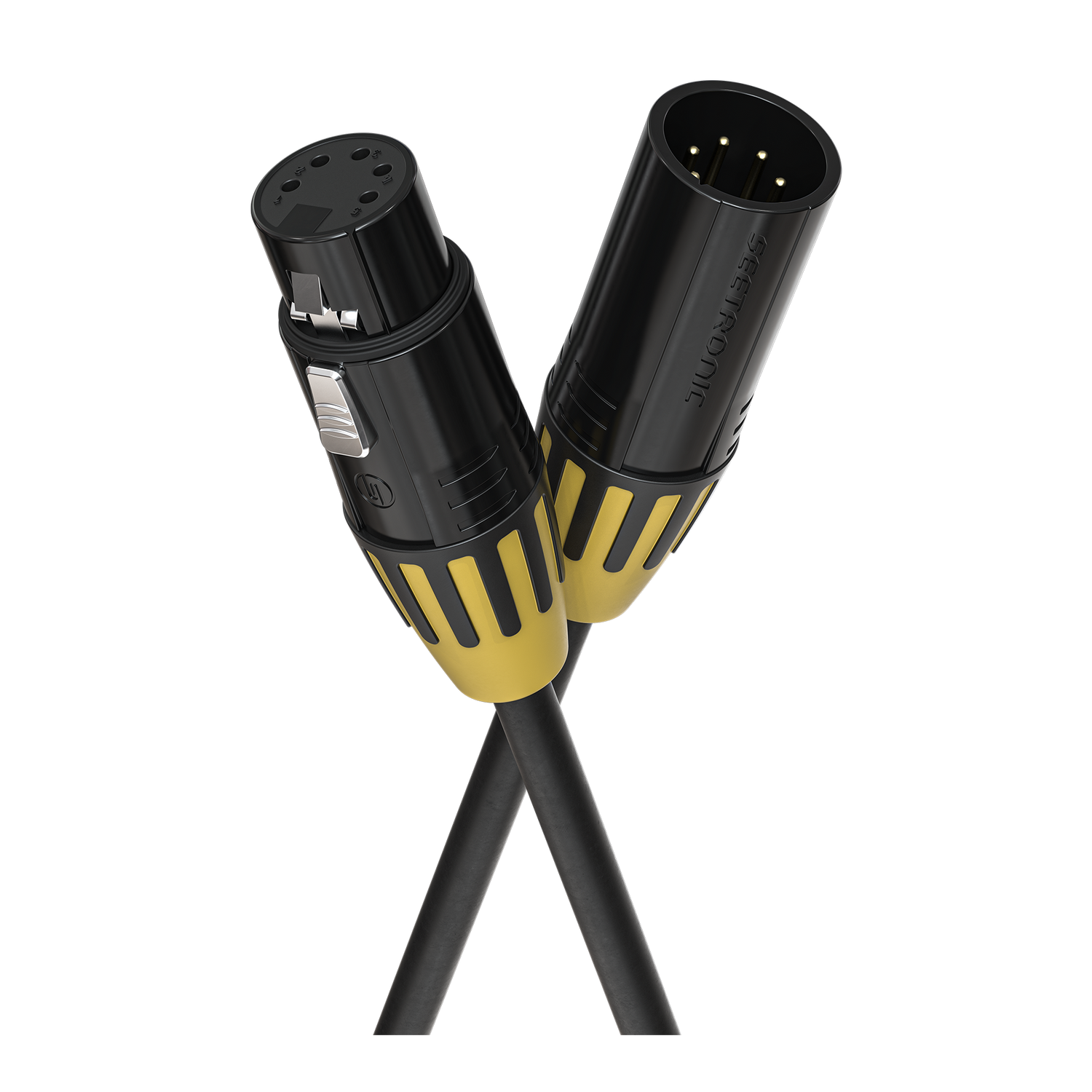

Chauvet Professional RIGLINK DMX Cable 10FT 5-Pin - RIGLINKDMX10FT
Product Overview
The Chauvet Professional RIGLINK DMX Cable (10FT) is a durable, double-shielded, production-grade DMX cable engineered for exceptionally stable signal transmission. Perfect for professional touring, live productions, and permanent installations where signal integrity and robust construction are essential. DMX-512 ready with 110-ohm impedance, high-torsion tinned oxygen-free copper conductors, and professional-grade Seetronic® connectors. Color-coded connectors make it easy to identify cable lengths during setup.
Features
- Double Shielding Design — Braided and aluminum foil shield provides maximum protection against signal interference (over 89% shielding effectiveness).
- DMX-512 Ready — Engineered for standard 110-ohm DMX-512 lighting control applications.
- Stable Signal Transmission — Low-dielectric LDPE insulation ensures low capacitance and precise impedance.
- High-Quality Conductor — High-torsion tinned oxygen-free copper for superior interference resistance.
- Flexible PVC Jacket — A highly elastic PVC outer jacket creates a soft, durable, flexible cable that's easy to handle.
- Professional-Grade Connectors — Equipped with Seetronic® production-grade connectors for dependable performance.
- Color-Coded Connectors — Quickly identify cable lengths and eliminate guesswork during setup.
- Road-Ready Construction — Built to withstand the rigors of touring and permanent installs alike.
Specifications
Construction / Physical
- Conductor Specification: 2 x 0.22mm² (24AWG)
- Conductor Structure: OFC 20/0.12BC
- Insulation Material: LDPE (OD 1.8mm)
- Shield Structure: OFC 16/8/0.1TC + AL
- Outer Jacket Material: PVC (Black)
- Outer Diameter: 6.0 ± 0.2mm
- Temperature Rating: -20°C to 70°C
- IP Rating: IP20
Connections
- Connectors: Seetronic SCM55-BG / SCMF5-BG (5-pin)
Electrical
- Withstand Voltage: 0.5kV
- Conductor Resistance: 88.2 Ω/km
- Capacitance between Conductors: 50 pF/m
- Conductor and Shield Capacitance: 122 pF/m
- Impedance: 110 Ω
Length: 10FT
