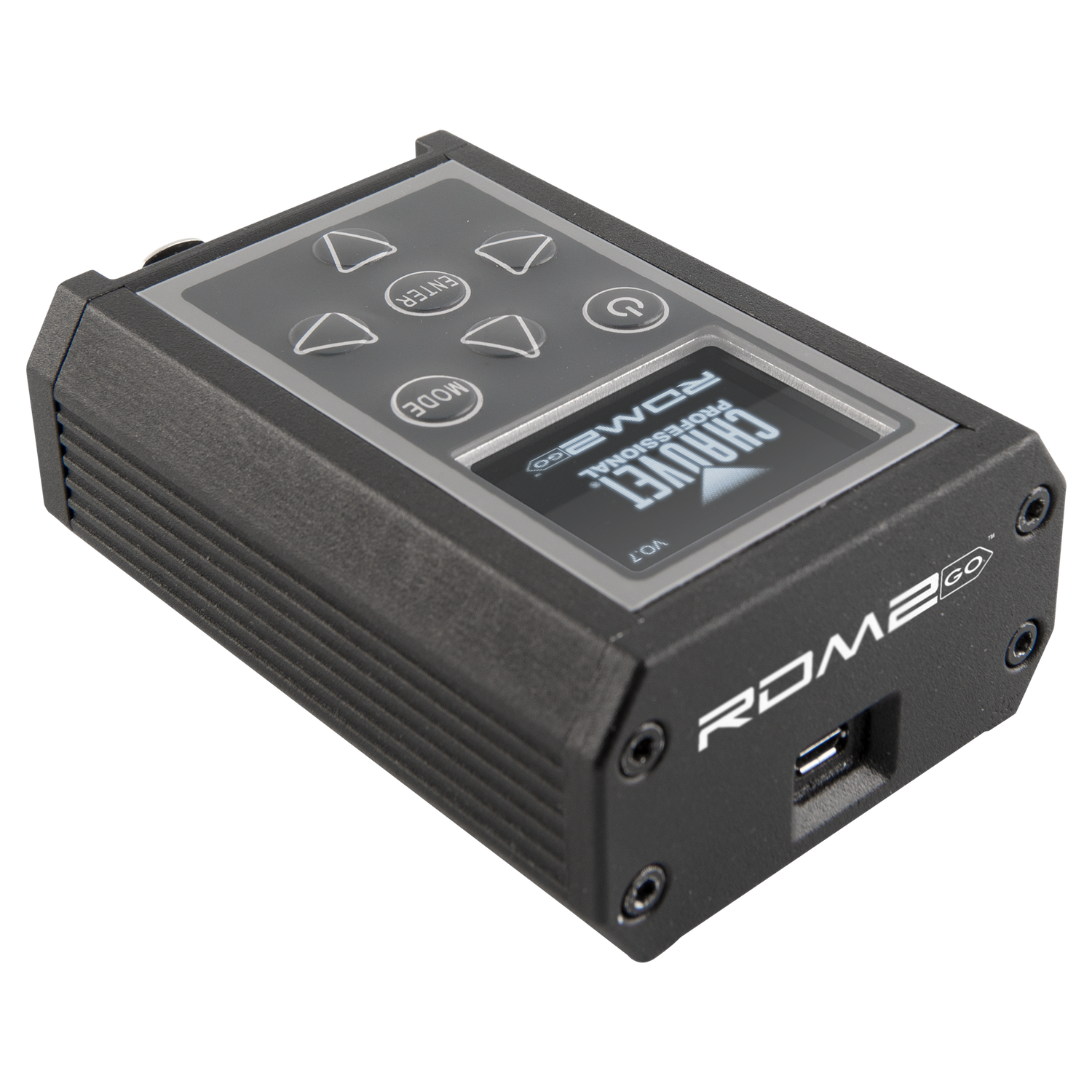

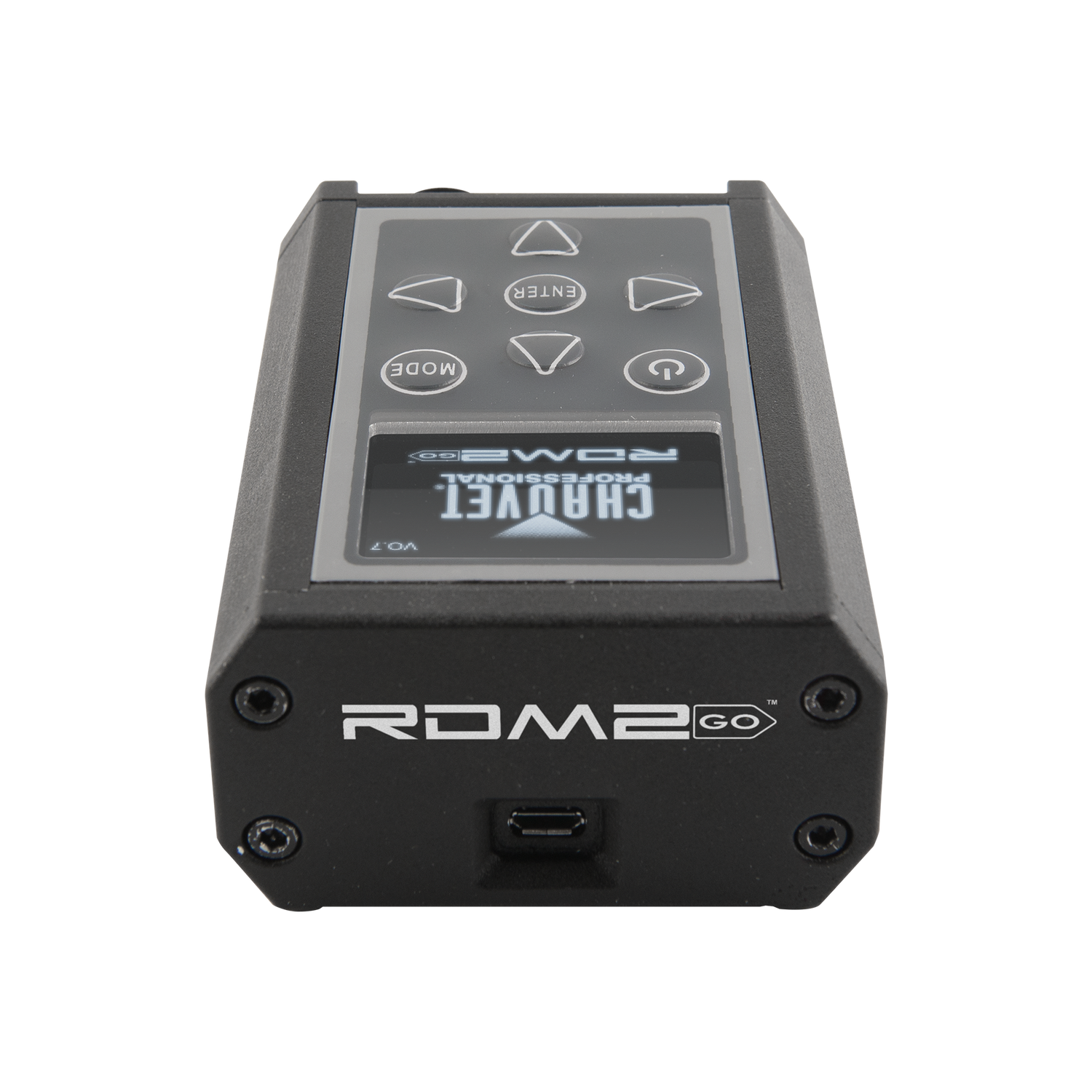

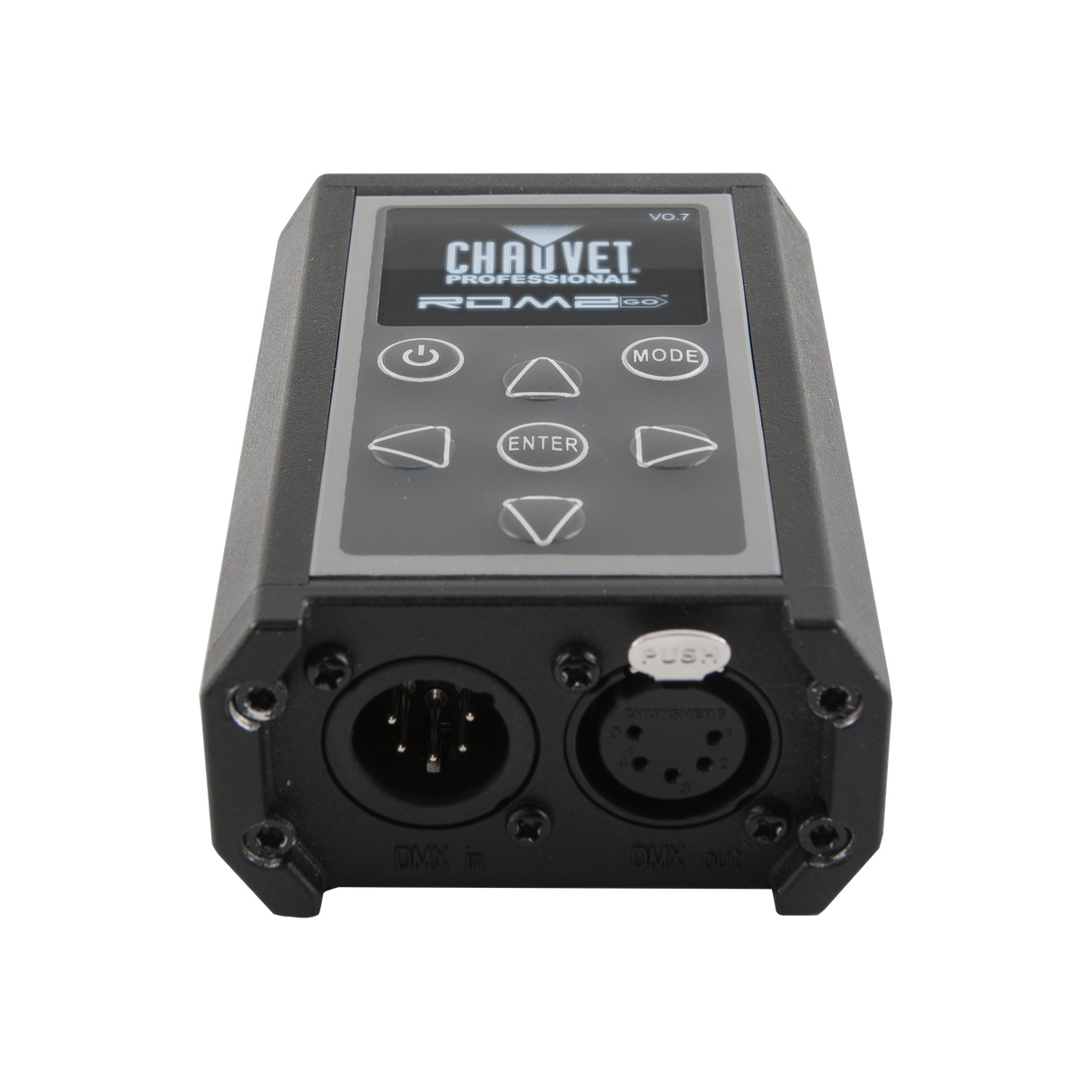

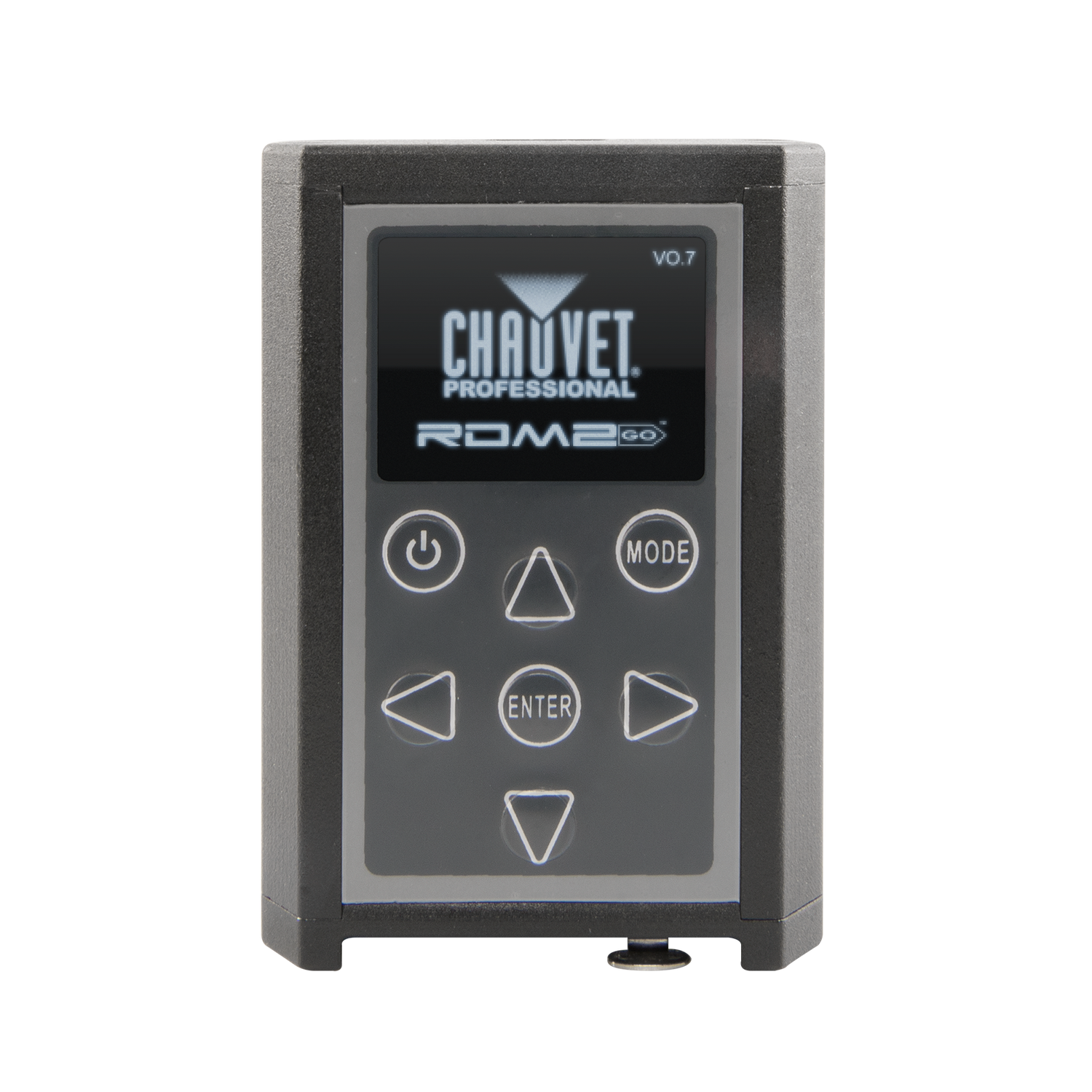

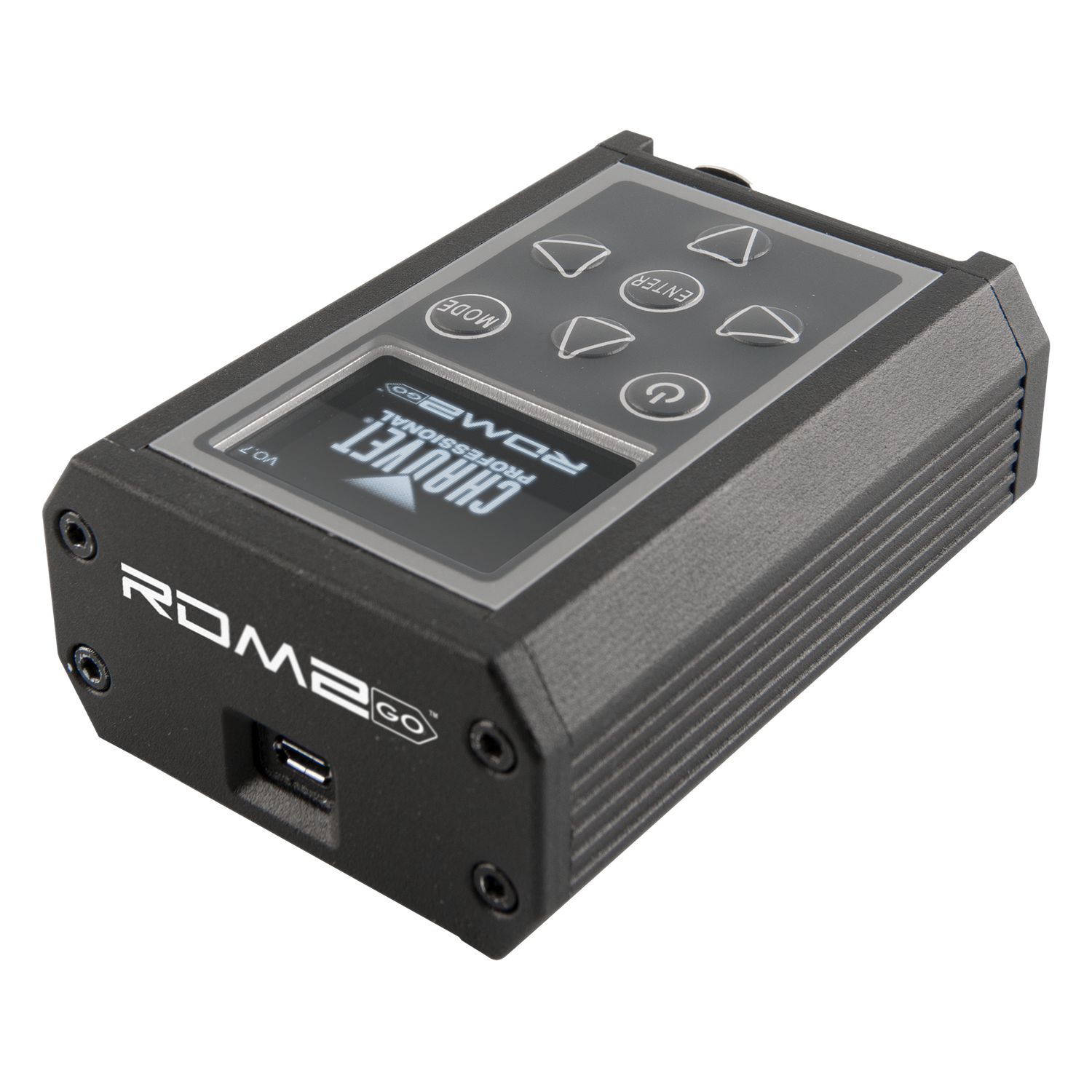

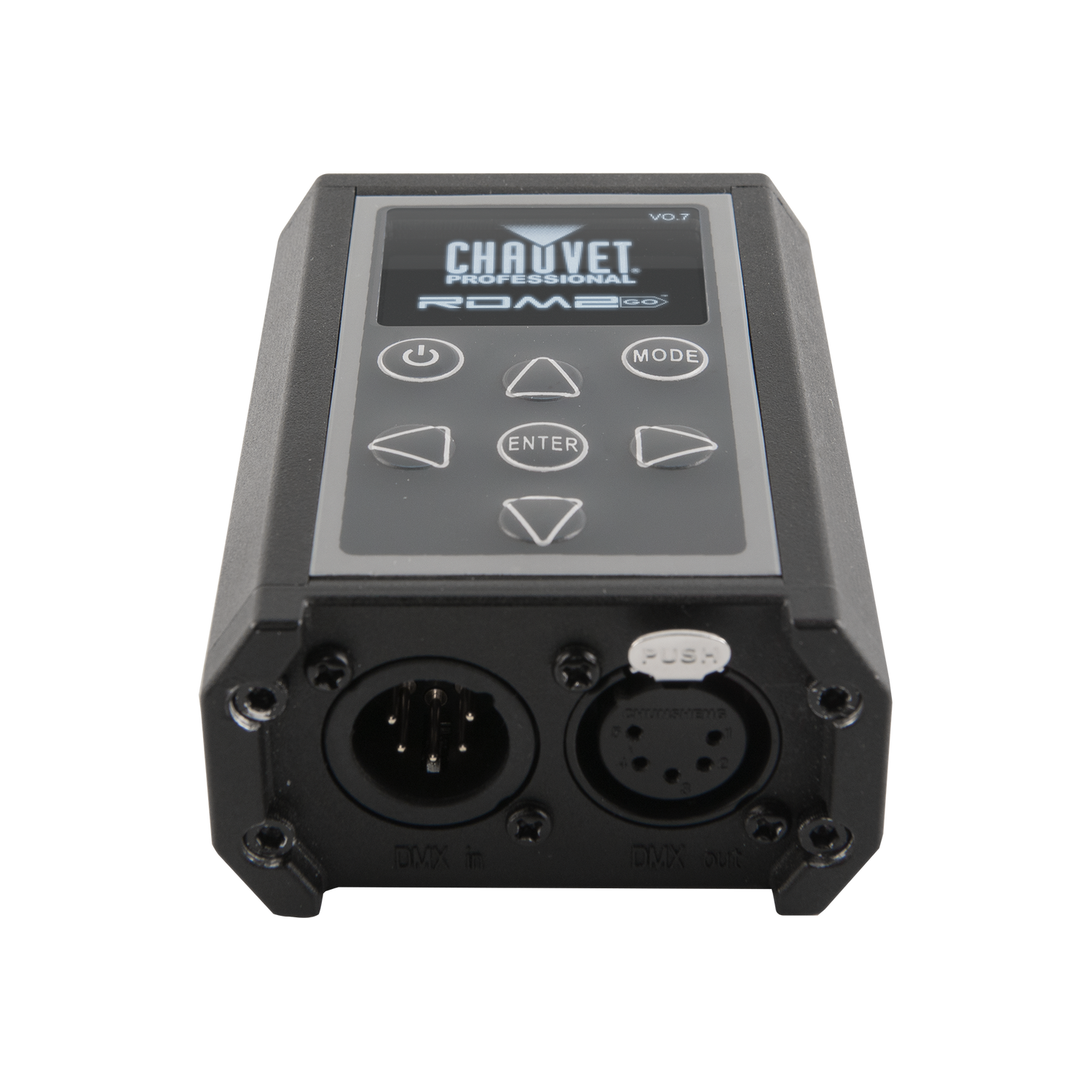

Chauvet Professional RDM2go Handheld DMX/RDM Tester & Addressing Tool - RDM2GO

Product Overview

The Chauvet Professional RDM2go is a palm-sized, multi-functional DMX/RDM tool that provides fixture addressing and testing, DMX snapshot playback, data monitoring, and cable integrity checks. Perfect for lighting technicians, system installers, and rental house staff who need a portable, all-in-one device for on-site fixture setup, diagnostics, and troubleshooting.

This handheld controller performs a multitude of tasks including full RDM functionality, DMX snapshot and test-scene record and playback, and DMX input and output monitoring. It features a built-in DMX cable integrity checker and an easy-to-read OLED display, and it can also address Chauvet's Iluminarc IP fixtures that do not have a display. The unit recharges via a standard micro USB jack and comes with a convenient carry pouch and DMX connector converters.

Features

• Multi-Protocol Control — Manage fixtures and systems using DMX, RDM, and Ilumicode protocols with a single handheld device.
• RDM Fixture Management — Easily address, locate, and monitor all of your RDM-capable fixtures.
• DMX System Diagnostics — Check DMX addressing and cabling, and store and play back basic snapshots for testing.
• Ilumicode Fixture Setup — Address and set the personalities of Ilumicode-based architectural lighting fixtures.
• OLED Display — A bright, easy-to-read OLED display for clear data monitoring.
• Included Accessories — Comes complete with necessary connector adaptors, a USB charging cord, and a belt clip pouch.

Specifications

Dynamic Effects

• Standalone Color Mixing: Yes
• Color Temperature Presets (Ilumicode): Yes
• Dim Modes (Ilumicode): 5
• Customizable Programs: Yes (with recall)

Construction / Physical

• Dimensions: 2.76 x 1.52 x 3.92 in (70 x 39 x 100 mm)
• Weight: 0.77 lb (0.35 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast

Connections

• Power Input: Micro USB-B Male
• Data Connectors: 5-pin XLR
• Cable Length (power): 3 ft (0.91 m)

Control

• Protocol(s): DMX, RDM, Ilumicode
• DMX Channels: 1, 2, 3, 4, 5, 6 or 7
• Modes/Personalities (Ilumicode): 13 personalities (ARC 1, ARC 1+D, ARC2, ARC2+D, ARC3, ARC3+D, ARC FULL, REMOTE, SOLID, SPECIAL1, SPECIAL2, VW, VW+D)

Electrical

• 18 W, 0.15 A @ 120 V, 60 Hz
• 18 W, 0.09 A @ 208 V, 60 Hz
• 18 W, 0.08 A @ 230 V, 50 Hz

Battery

• Battery Type: Lithium Ion (rechargeable)
• Battery Life: 8 hours
• Battery Power: 3.7 V, 1,200 mAh

Certifications / Qualifications

• Certifications: CE
• IP Rating: IP20, dry location

What's Included

• RDM2go
• Carry Pouch
• 2 pc, 3- to 5-pin converters
• 5-pin male to bare wire adaptor
• USB-A Male to Micro USB-B Male (3 ft)
