Chauvet Professional DRB-F100CMIP Dual-Function Rig Bar (1m, IP65) - DRBF100CMIP
Chauvet Professional DRB-F100CMIP Dual-Function Rig Bar (1m, IP65) - DRBF100CMIP is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Chauvet Professional DRB-F100CMIP Dual-Function Rig Bar (1m, IP65) ...
Product Overview

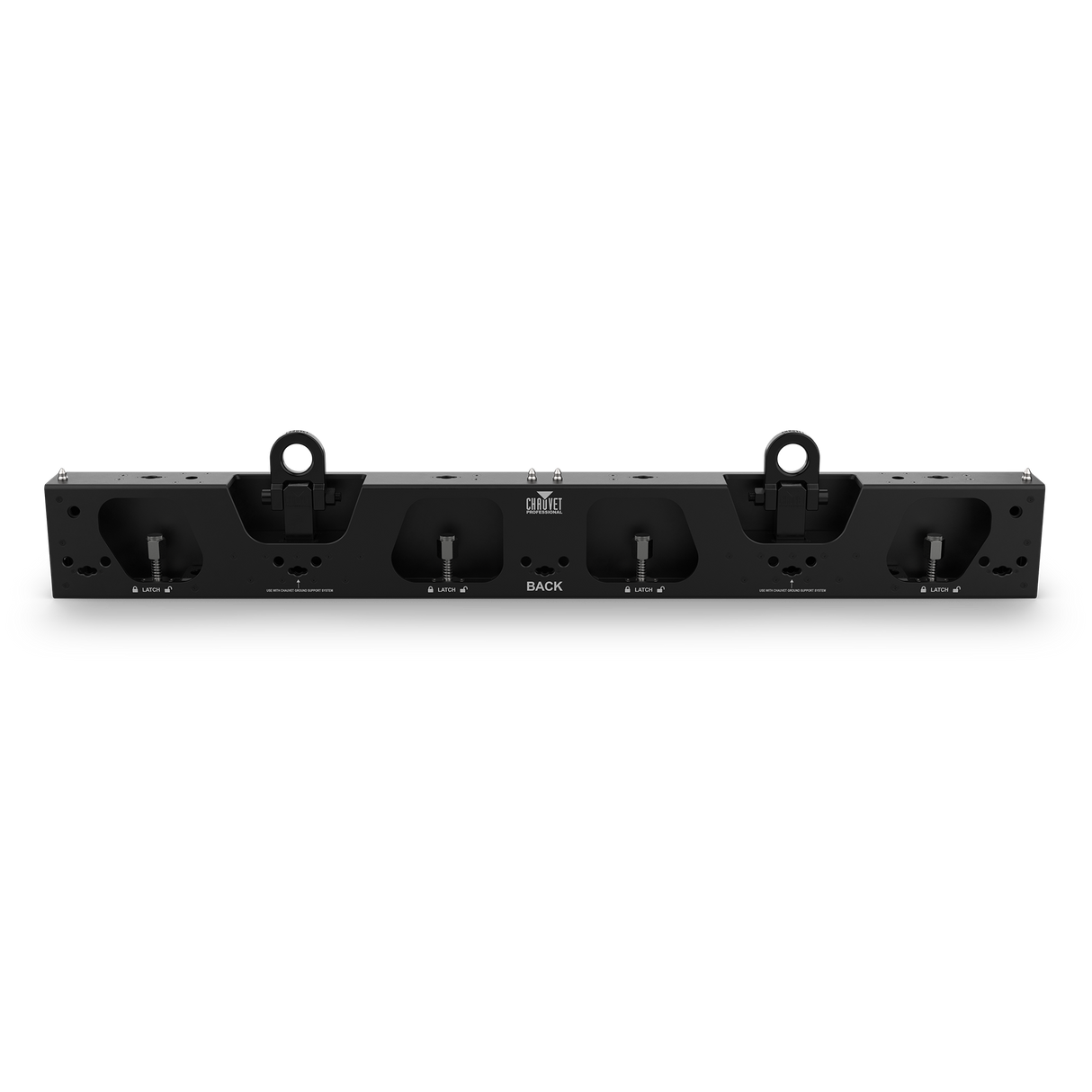

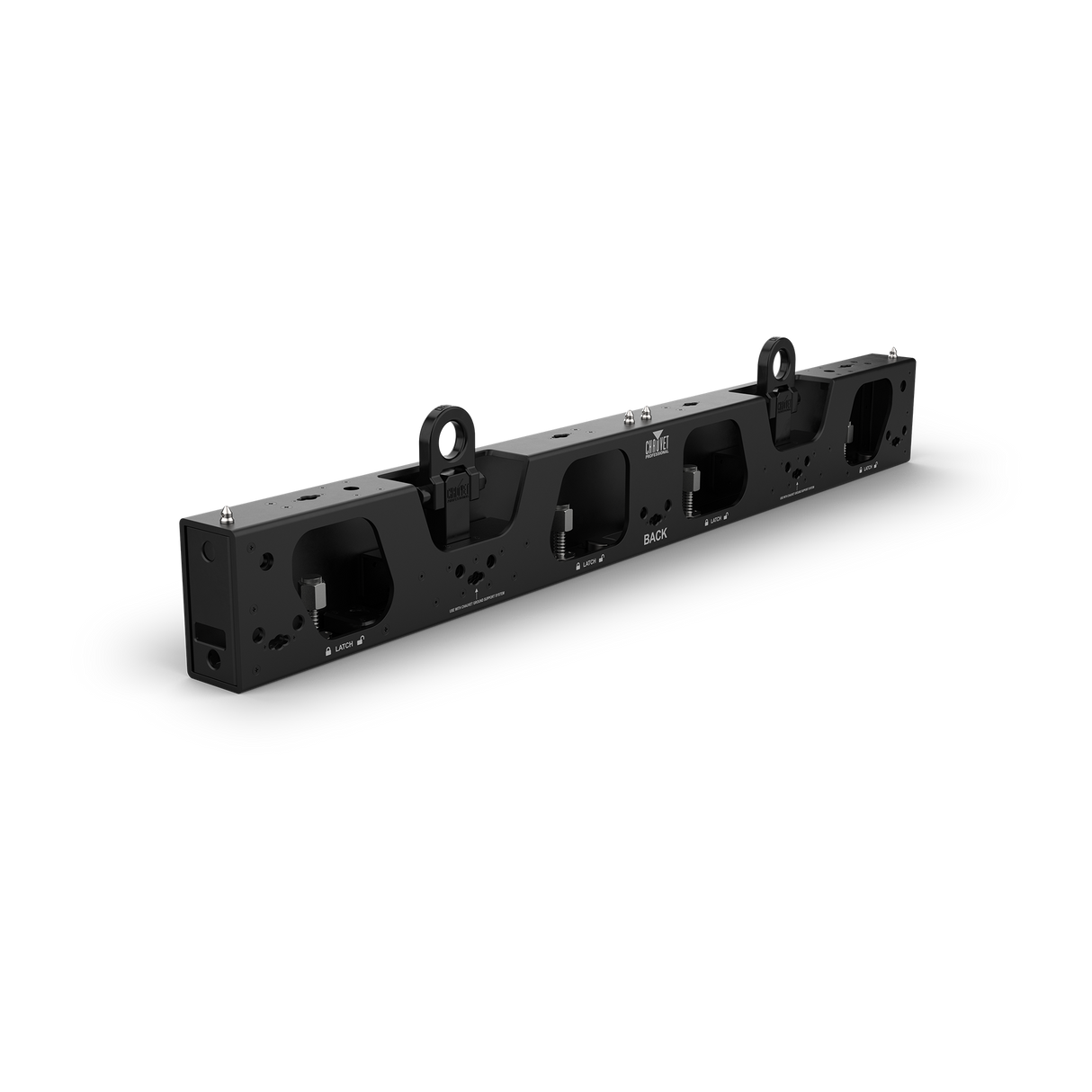

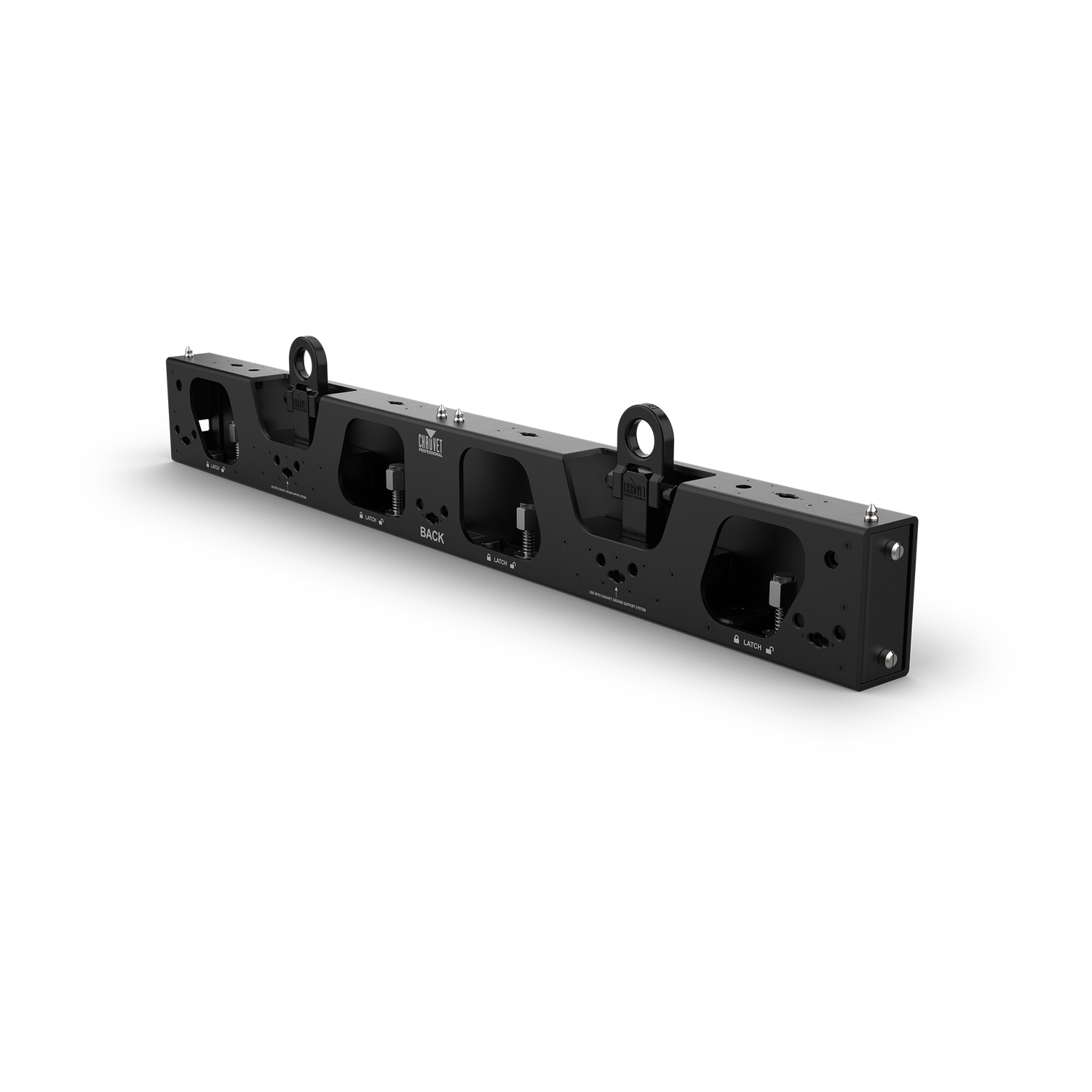

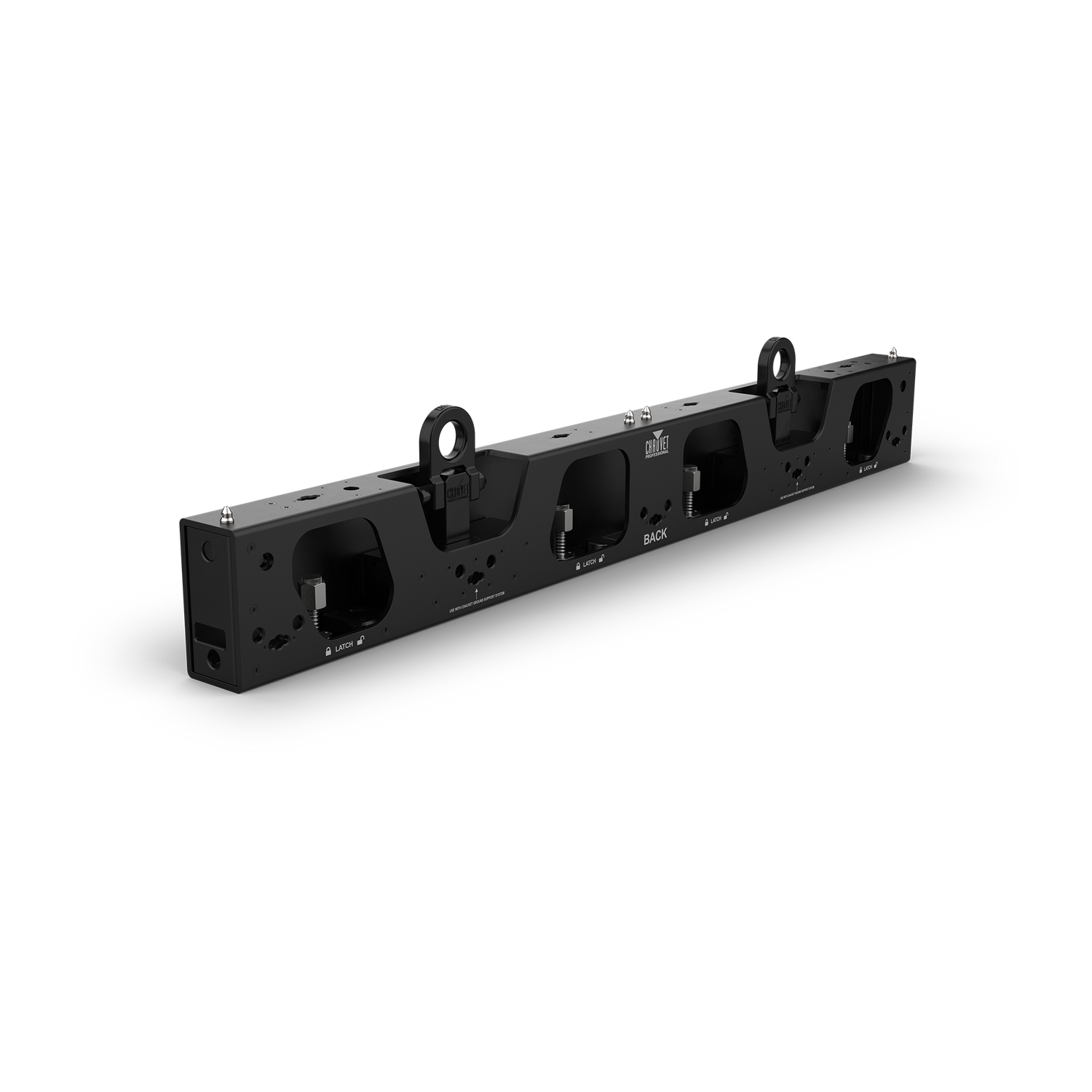

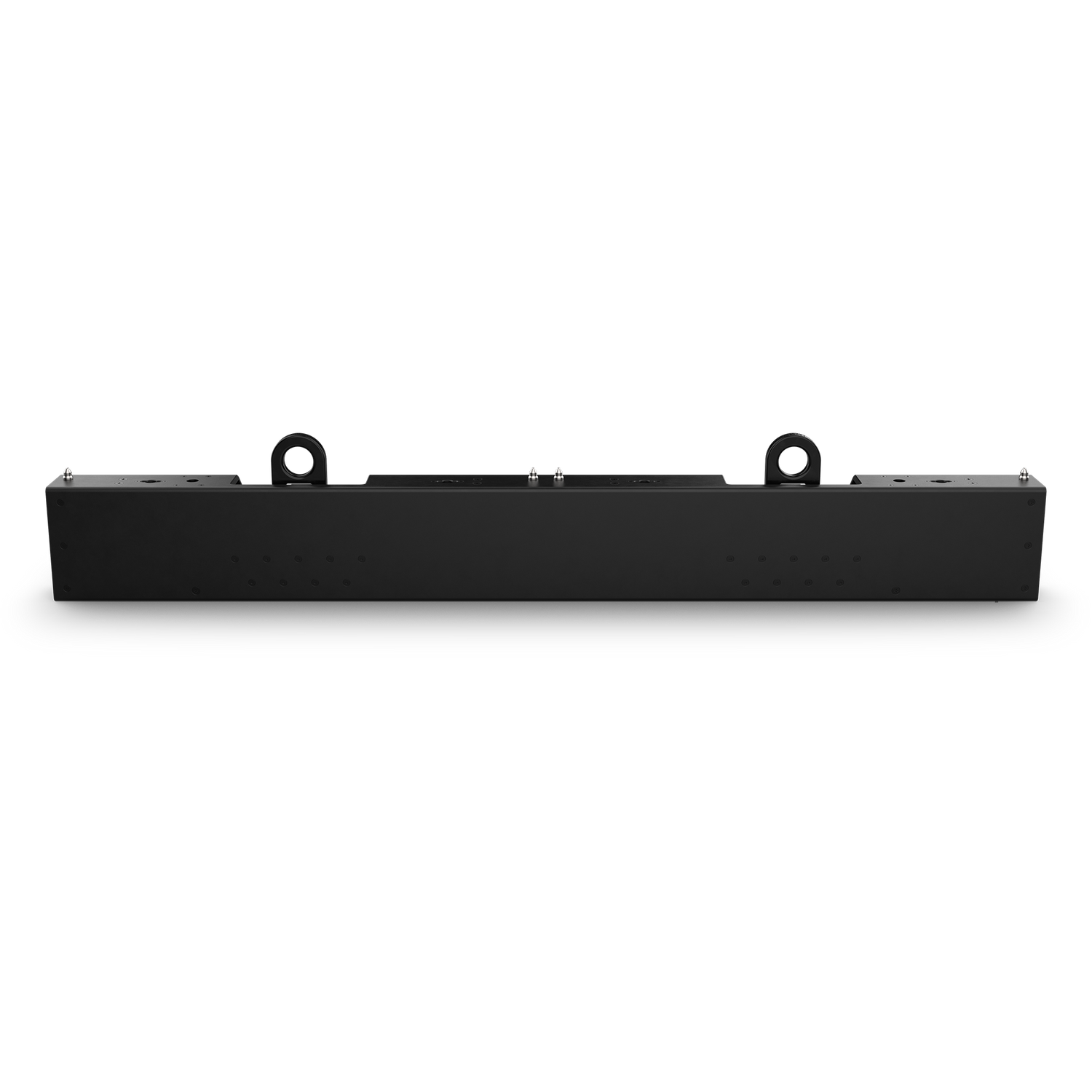

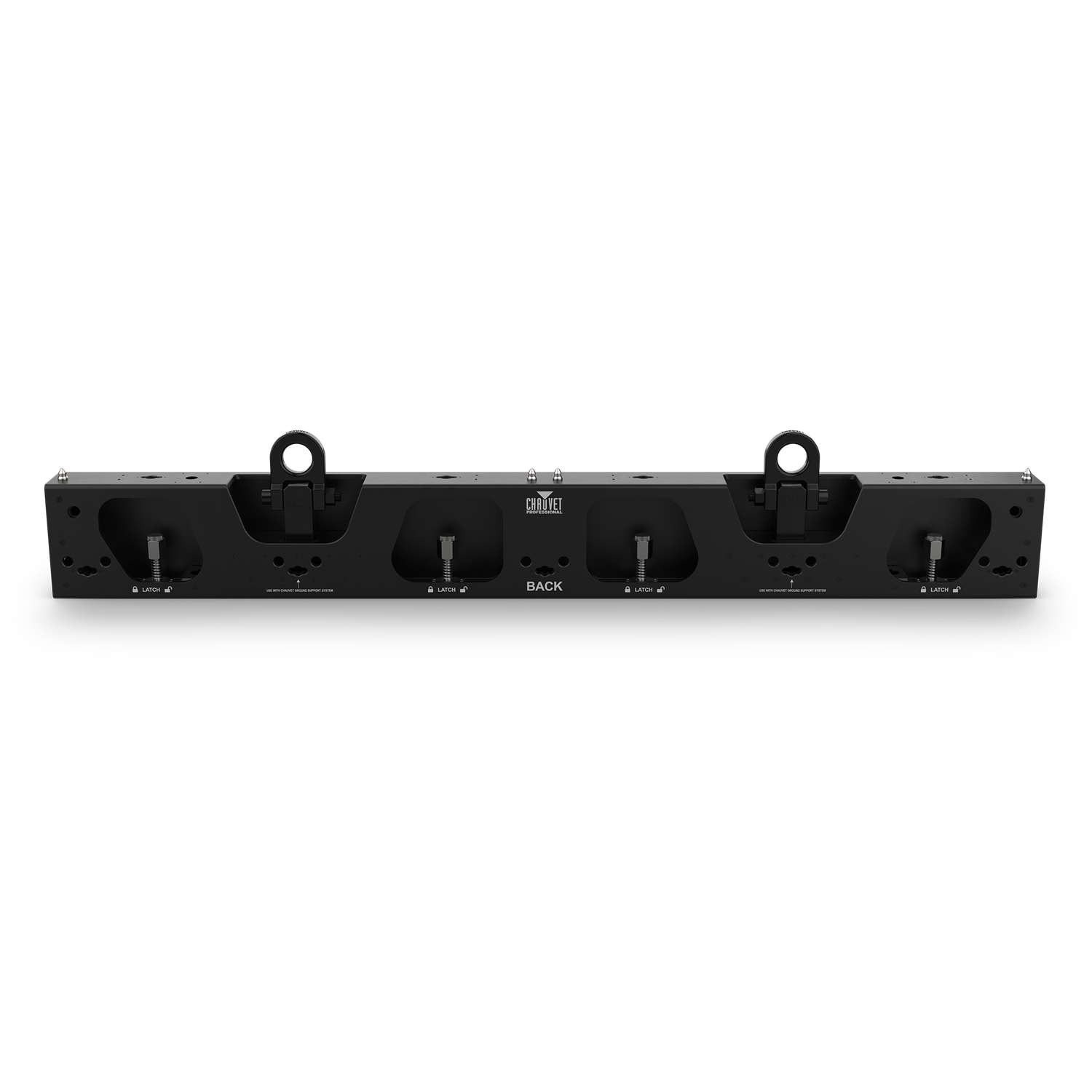

The Chauvet Professional DRB-F100CMIP is an IP65-rated rig bar that performs the dual function of hanging a video wall overhead or adapting it for ground stacking (by adding the GROUNDSUPPORT2KIT). Ideal for professional productions needing a flexible, all-weather solution for flown or ground-supported video walls.
Features
- Dual Function Rig Bar — Hang F-series panels vertically or horizontally.
- Overhead and Ground Support — Works for both hanging and ground stacking.
- F-Series Compatibility — For CHAUVET F2, F3X, F5IP, and F4XIP video panels.
- Standard Rigging Support — Hoist ring accommodates 1/2-inch and 5/8-inch shackles.
- Included Clamp Bracket — Direct connection to TRUSST CTC-50HC clamps via M12 bolts.
Specifications
- Dimensions: 39.35 x 2.36 x 4.72 in (999.6 x 60 x 120 mm)
- Weight: 15.4 lb (7.0 kg)
- Exterior Color: Black · Housing: Aluminum extrusion, stainless steel
- Load Capacity (Hanging): 1,665 lb (755 kg)
- Load Capacity (Stacking): 2,735 lb (1,240 kg)
- Certifications: RoHS · IP Rating: IP65, temporary outdoor/wet use
What's Included
- 1pc Dual Function Rig Bar-100 cm (DRB-F100CMIP)
- 1pc 0° Linking Plate
- 2pcs clamp attachment brackets (DRB-CTC)
- 2pcs clamp bolts for TRUSST CTC-50HC
