Chauvet Professional CP Rack Folding Fixture Transport Rack -

Product Overview

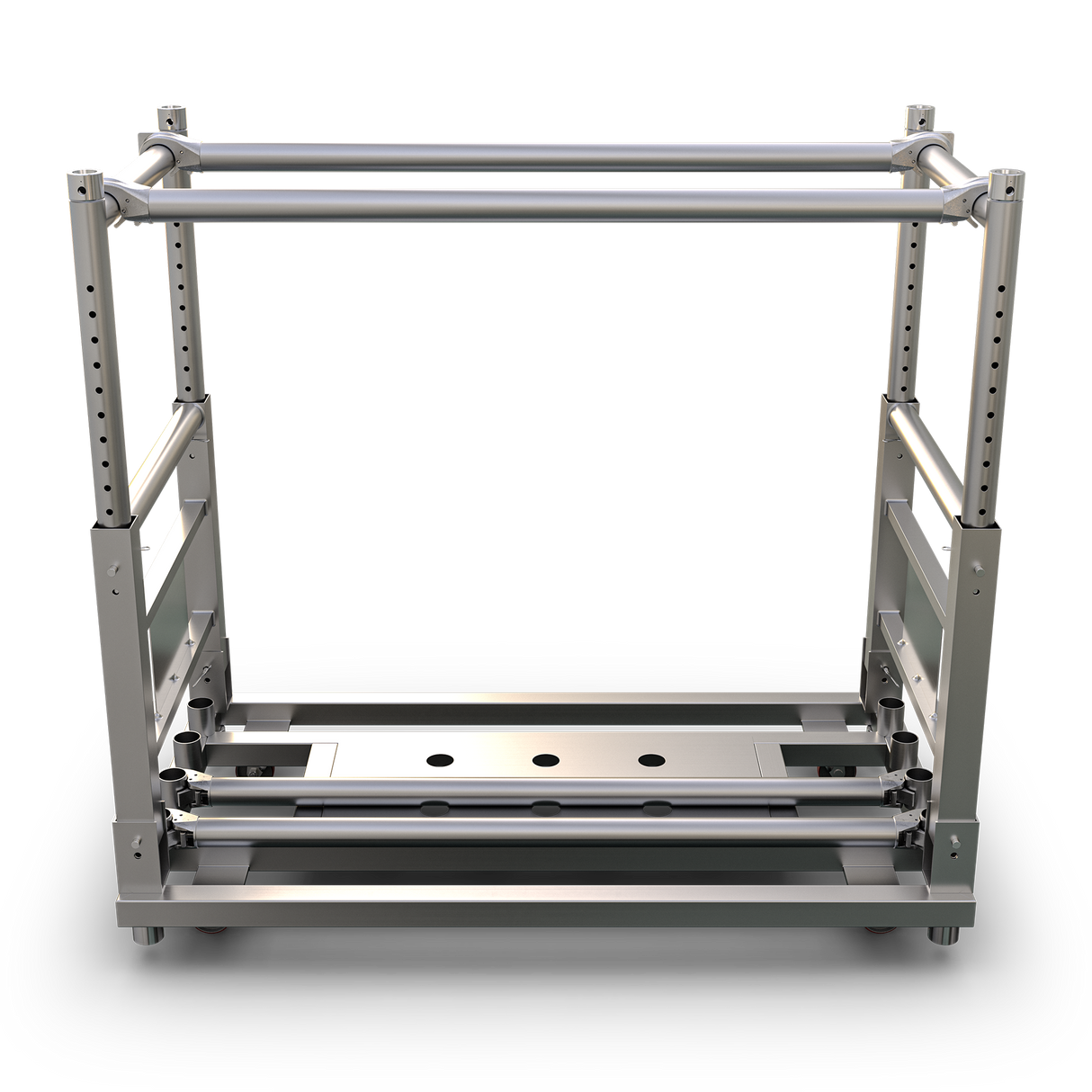

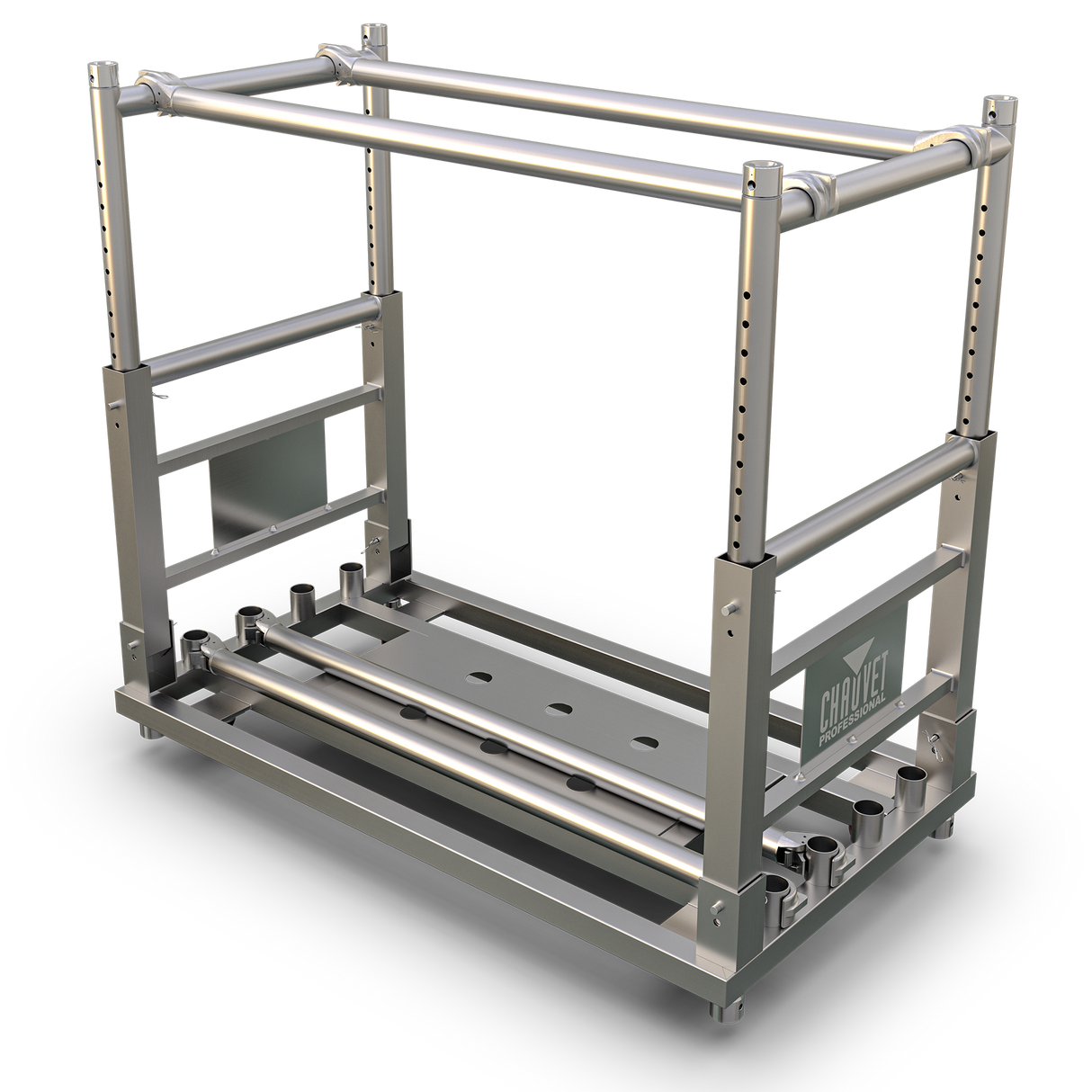

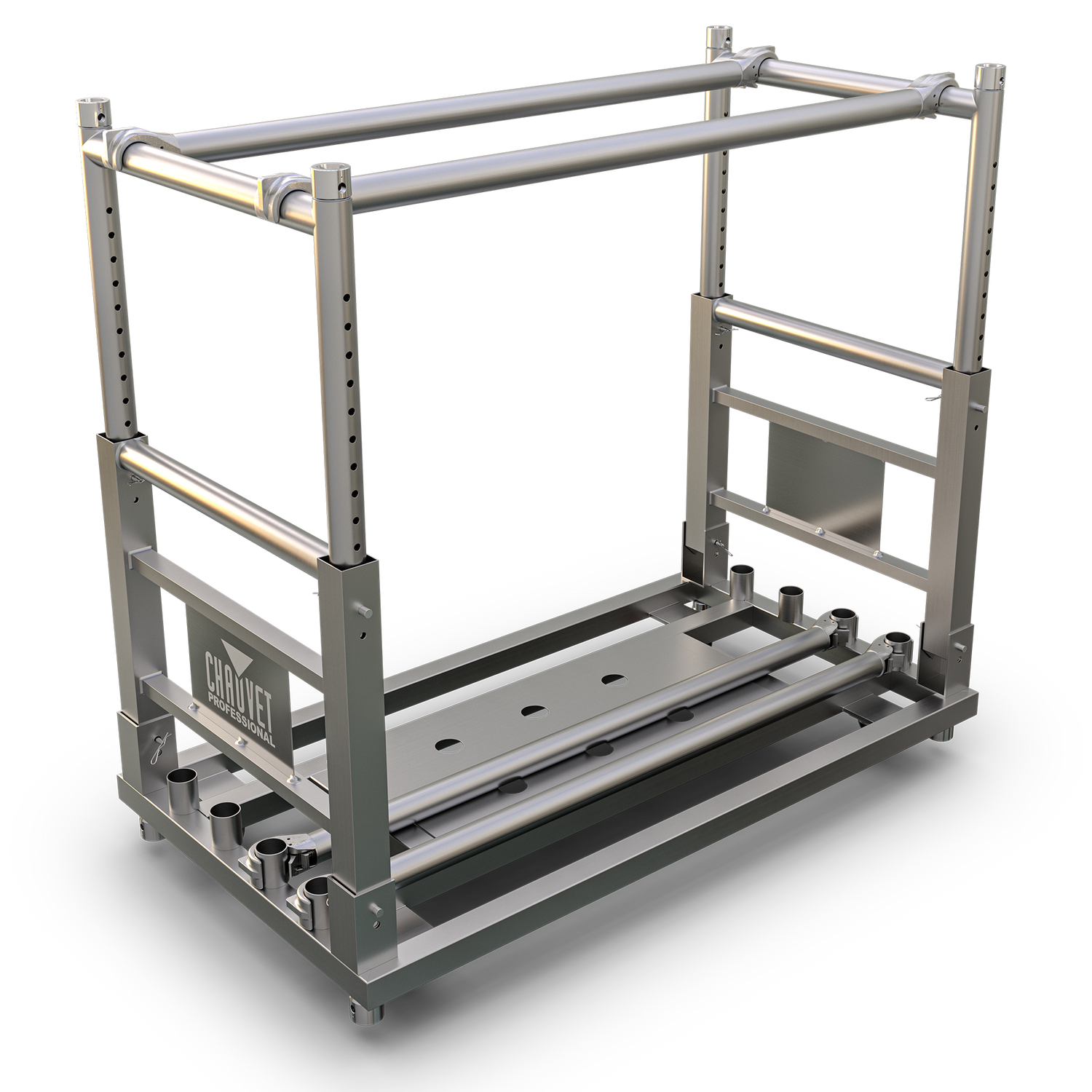

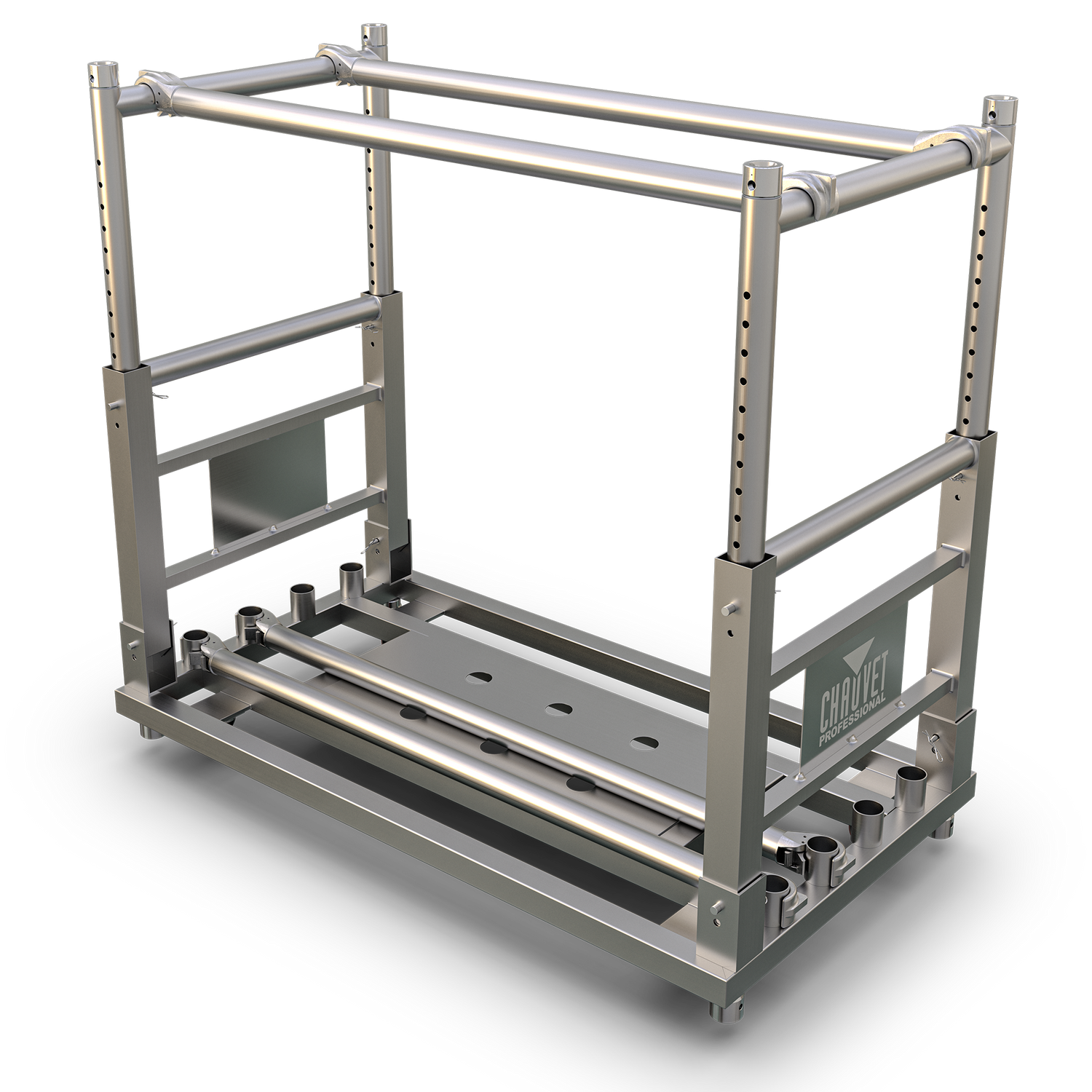

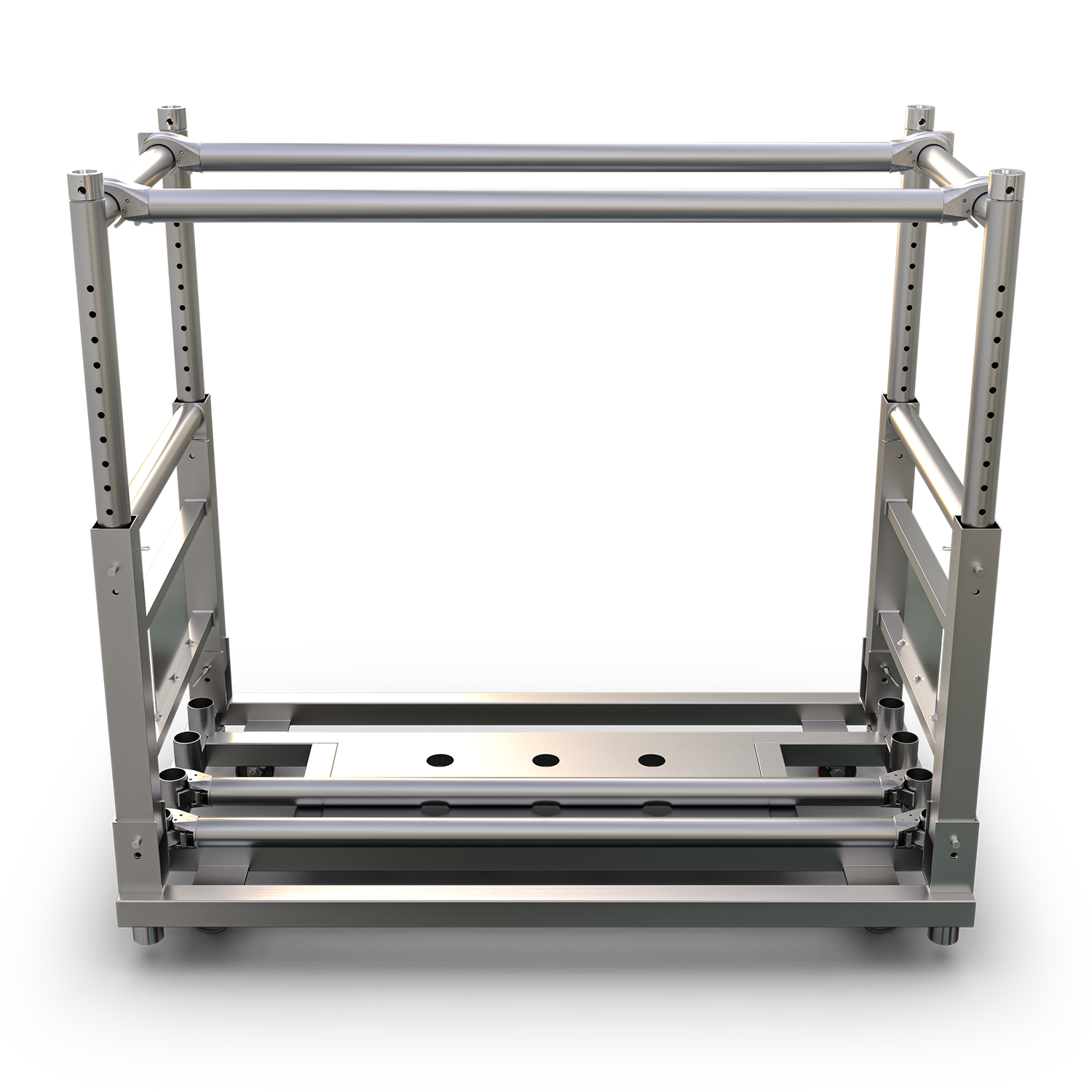

The Chauvet Professional CP Rack is a compact, lightweight rack designed to hold up to 1,000 lb (453 kg) of lighting fixtures, with the ability to raise and lower its height and fold down flat when not in use for easy storage. CP Rack can be stacked two-high for better space utilization in transport. US and EU truck-pack ready (3 wide), and at just over 4 ft (1.38 m) tall it fits easily in small elevators, through ADA doors, and down hallways to hard-to-reach installs.

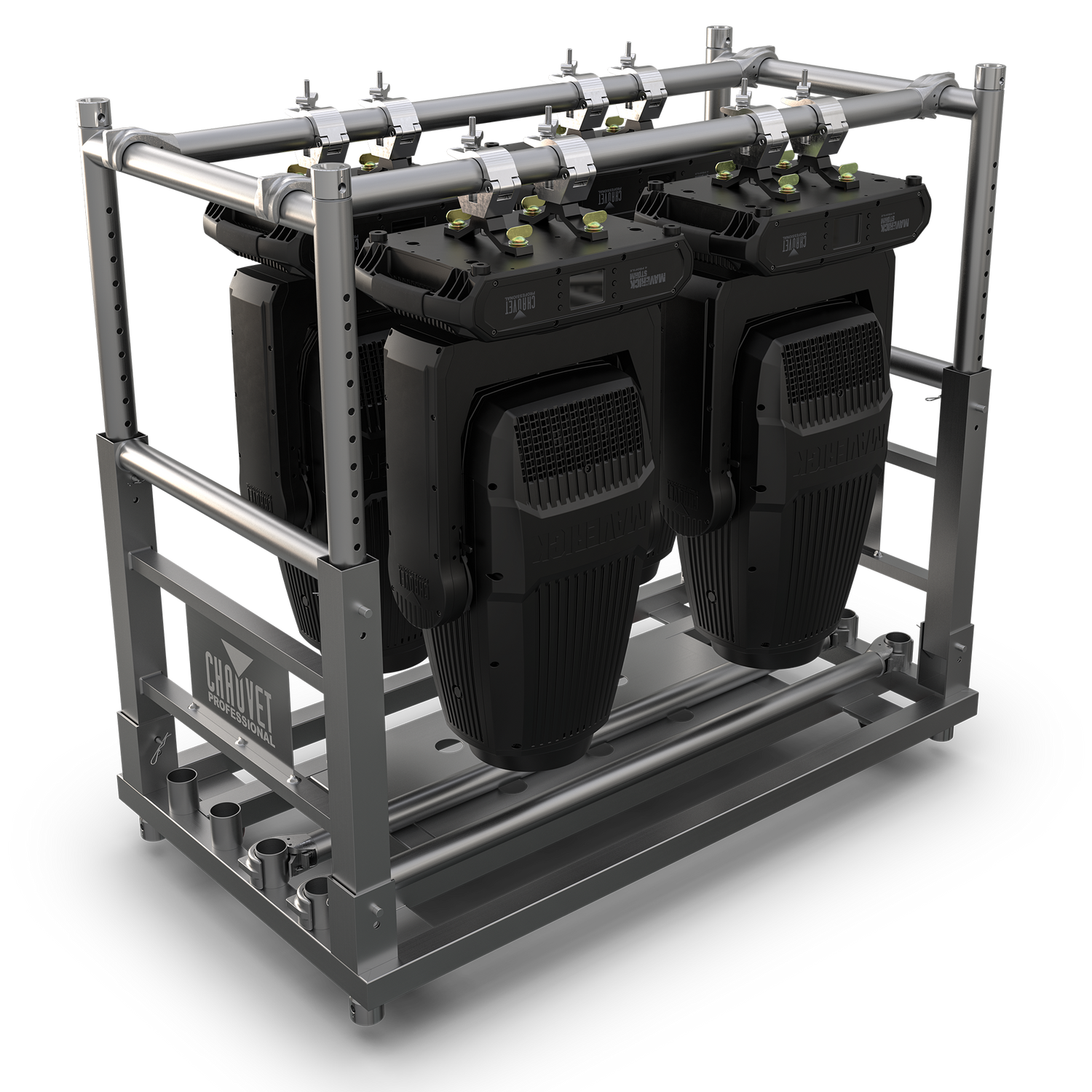

Once assembled, it can be configured and reconfigured for the fixtures being mounted — e.g. four large moving heads (Maverick Storm 4 Profile), six mid-size moving heads, 12–16 small moving washes, 8–10 Ovation ellipsoidals, four COLORado PXL Bar 16, or six STRIKE Array 4.

Features

• High Load Capacity — Safely supports up to 1,000 lb (453 kg) of lighting equipment.
• Adjustable Height — Raise or lower to accommodate various fixture sizes.
• Folds for Storage — Folds flat in seconds for simple storage.
• Removable H Frames — Uprights detach for use as independent H frames on truss.
• Truck Pack Optimized — Stacks two-high; sized for efficient US and EU truck packing.
• Compact Footprint — Passes through ADA doorways and fits smaller elevators.
• High-Capacity Casters — 5-inch casters (1,102 lb capacity) move smoothly when fully loaded.
• Included Protective Cover — Ships with a cover to protect fixtures in transit.

Specifications

• Frame/Tube Material: Aluminum · Exterior Color: Silver
• Dimensions (max height): 54.3 x 31.5 x 43.83 in (1.38 x 0.80 x 1.11 m)
• Dimensions (folded): 54.3 x 31.5 x 12.6 in
• Weight: 75.5 lb (34.25 kg)
• Load Capacity: 1,000 lb (453 kg) · Caster Capacity: 1,102 lb (500 kg)
• Maximum Stacking: 2 high
• Certifications: CE, TUV tested

What's Included

• CP Rack
• Cover
