ChamSys QuickQ 20

Product Overview

The ChamSys QuickQ 20 is a compact, affordable lighting control console for first-time operators and small commercial venues controlling dimmers, LED colour mixing, and moving lights. With a 9.7" multi-touch display and a smartphone-style interface, this entry-level lighting console suits house of worship installs, school theatres, and huddle or multi-purpose room deployments. It supports 2 DMX universes with two direct outputs plus networked Art-Net and sACN, and built-in WiFi for the free QuickQ remote app. Show files stay compatible with the wider MagicQ range for future progression.

Product Description

QuickQ 20 is built to get inexperienced users programming quickly in a smaller footprint than the QuickQ 30. The interface is modelled on a smartphone, using icons, pinch-zoom, and scrolling on the 9.7" touchscreen to lead an operator through setup, programming, and playback. This makes it a strong fit for volunteer-run and staff-rotated spaces such as houses of worship and schools.

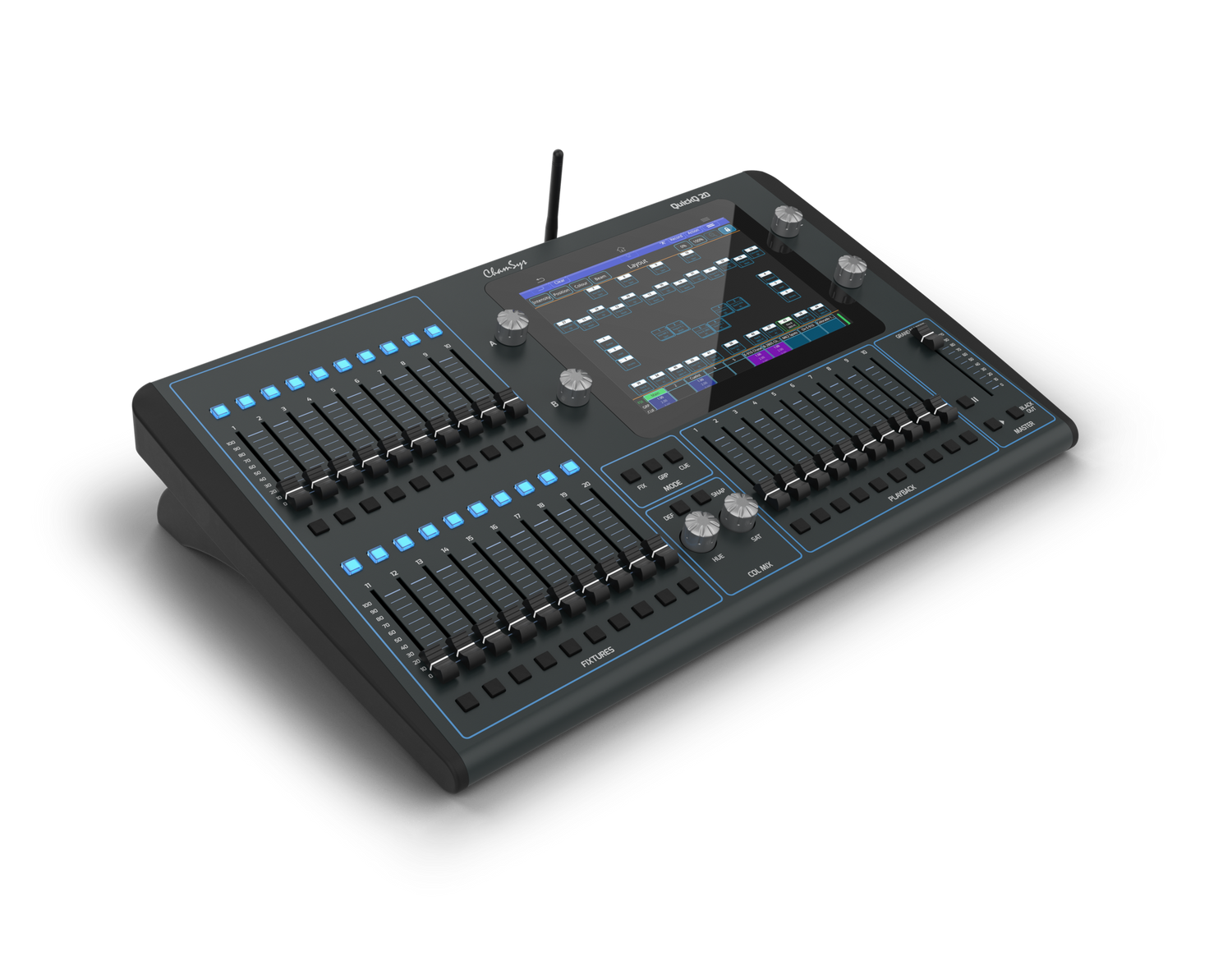

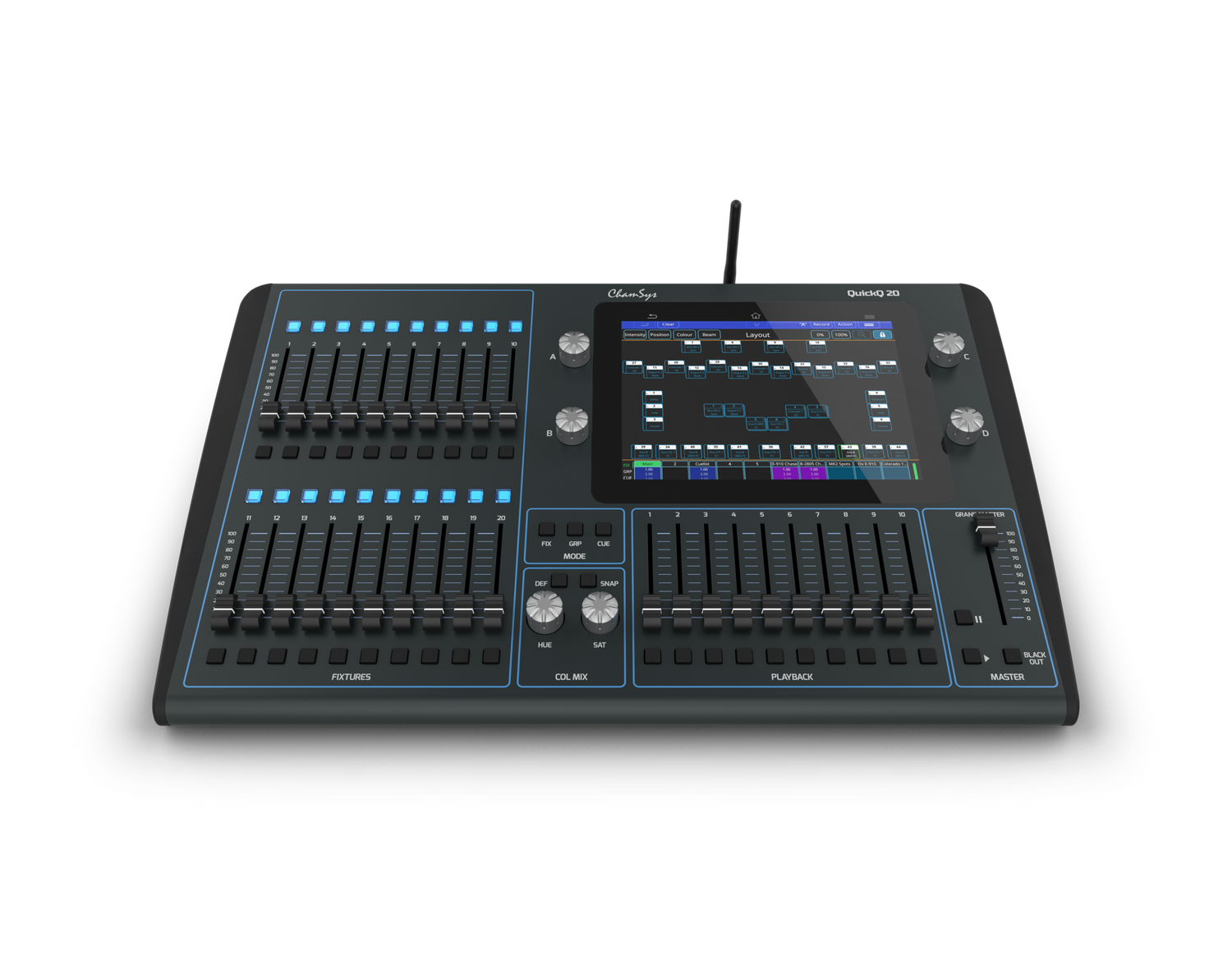

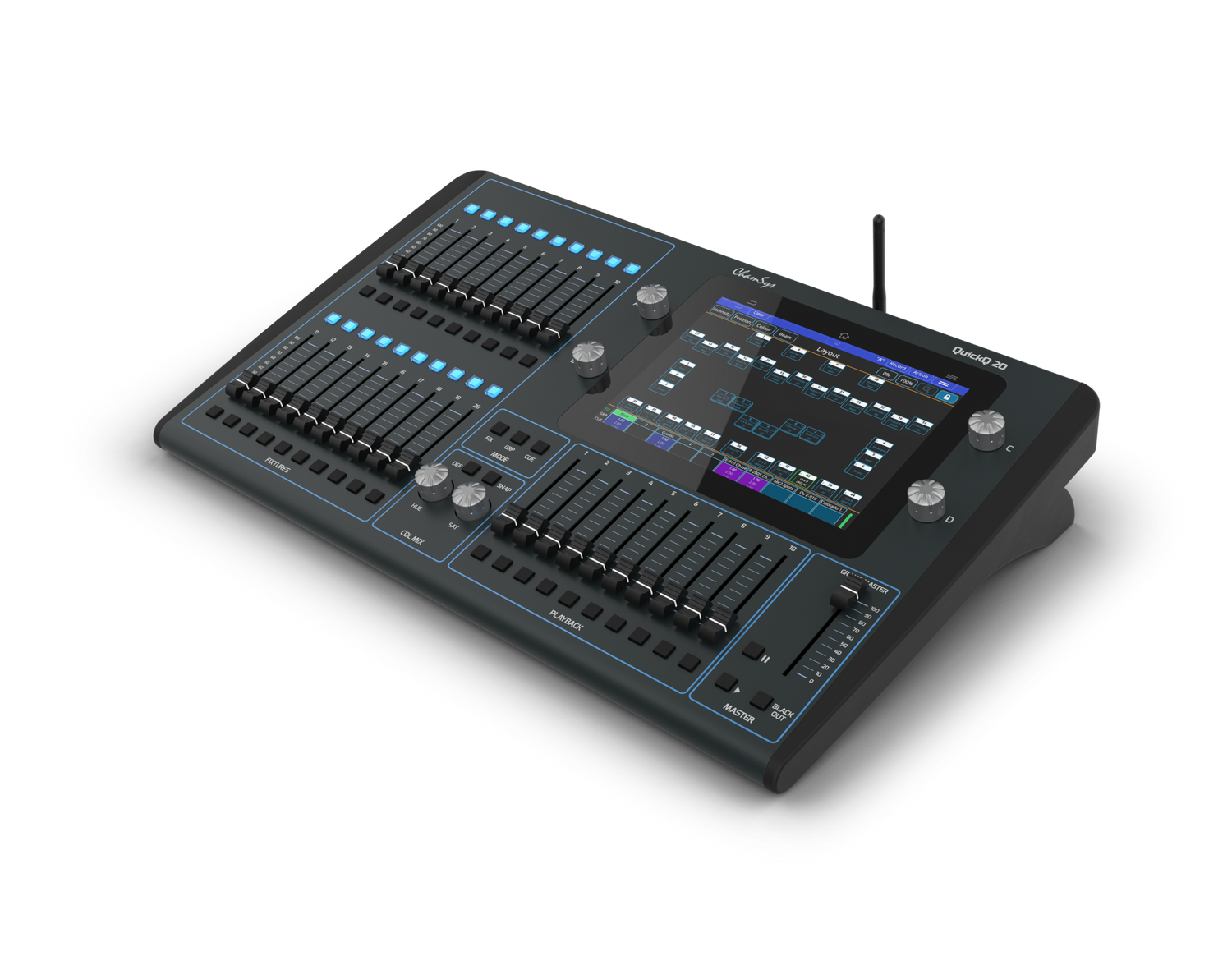

The console provides 20 multi-function fixture faders with Fixture, Group, and Cue modes, ten multi-cue playback faders legended on screen, and a dedicated grand master. A dedicated colour control area with hue and saturation encoders, a built-in colour picker, and gel libraries simplifies LED fixture work. RDM autopatch automatically detects and patches compliant fixtures, reducing commissioning time during installation.

For networked deployment, QuickQ 20 outputs DMX over Art-Net, sACN, and Pathport across two universes, and supports remote triggering of playbacks and execute items via OSC for integration with show-control systems. Built-in WiFi connects to the free QuickQ app on iOS, Android, and Windows by scanning an on-screen QR code. Free offline editor software for Mac and Windows lets a programmer build shows in advance and load them via USB. Because QuickQ shows load onto any MagicQ system, a venue can progress to the more advanced MagicQ range without rebuilding its show.

Key Features

• Smartphone-style touch interface — Guides first-time operators through setup, programming, and playback on a 9.7" multi-touch display.
• 2 universes with networked output — Drives up to 1024 channels over two direct DMX ports plus Art-Net, sACN, and Pathport.
• 20 multi-function fixture faders — Switch between Fixture, Group, and Cue modes for flexible control in a compact console.
• Dedicated colour control — Hue and saturation encoders with a built-in colour picker and gel libraries streamline LED fixture work.
• RDM autopatch — Automatically detects and patches compliant fixtures to speed up installation.
• Built-in WiFi remote app — Connects to the free QuickQ app on iOS, Android, and Windows by scanning an on-screen QR code.
• OSC remote triggering — Allows playbacks and execute items to be triggered from show-control systems for AV integration.
• MagicQ show compatibility — QuickQ show files load onto any MagicQ system, allowing future upgrade without rebuilding shows.

Typical Applications

• House of worship lighting control
• School and education theatre installations
• Huddle rooms and small multi-purpose rooms
• Small performance and event venues
• Training rooms and presentation spaces
• Nightclubs and bars

Technical Specifications

Frequently Asked Questions

Is the QuickQ 20 suitable for inexperienced operators?

Yes. The smartphone-style interface uses icons and gesture support on a 9.7" touchscreen and guides users step by step through setup, programming, and operation, making it well suited to venues where staff or volunteers rotate.

What lighting networking protocols does it support?

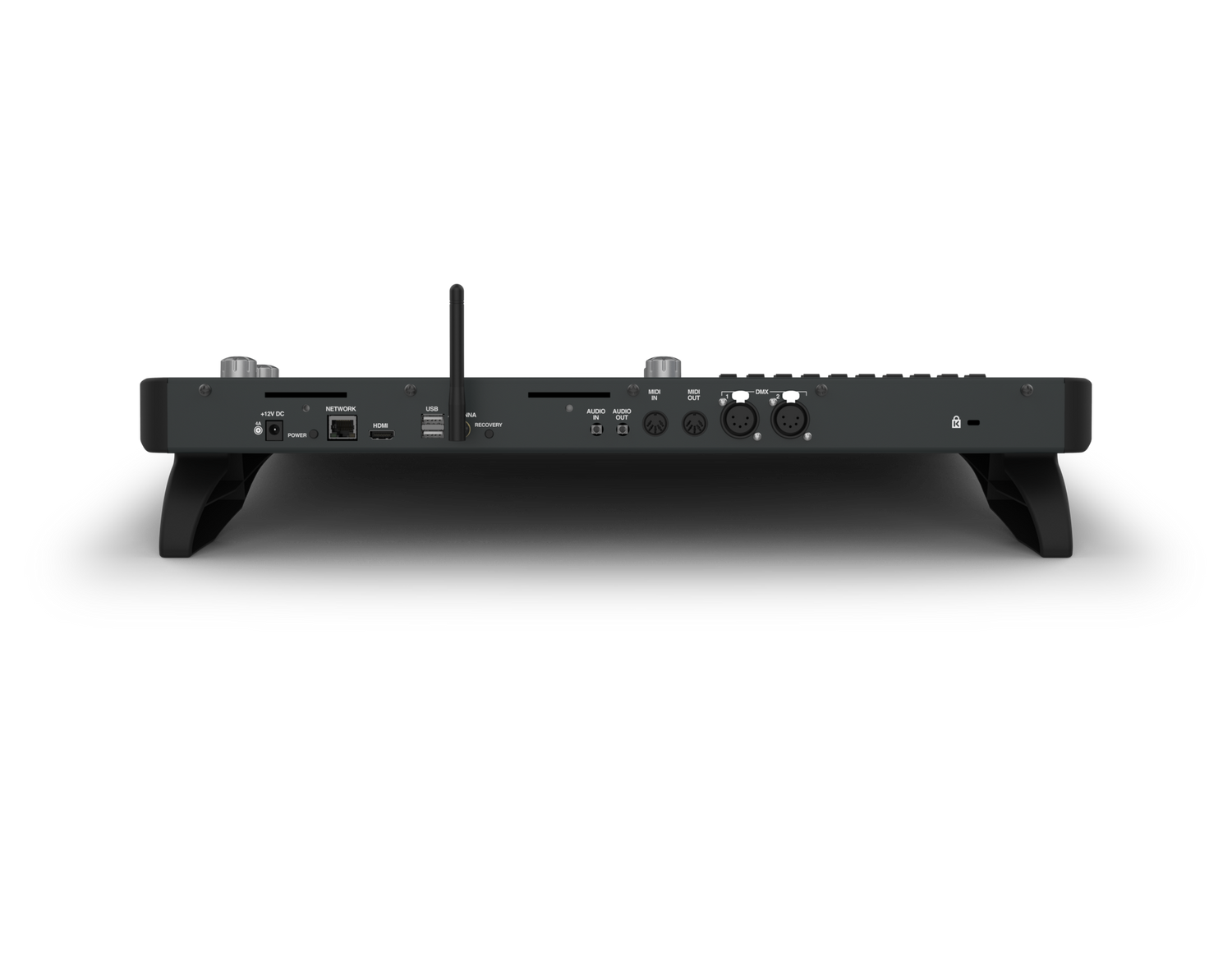

The QuickQ 20 outputs DMX over Art-Net, sACN, and Pathport across two universes, in addition to two direct 5-pin XLR DMX outputs, and supports OSC for remote triggering.

How does fixture patching work during installation?

RDM autopatch automatically detects and patches RDM-compliant fixtures, which reduces commissioning time on an install.

Can shows move to a larger console later?

Yes. QuickQ show files load onto any MagicQ system, so a venue can upgrade to the more advanced MagicQ range without rebuilding its show files.

Does it work with a wireless remote?

The console has built-in WiFi and connects to the free QuickQ app on iOS, Android, and Windows by scanning a QR code shown on the console display.

What support and software are available?

ChamSys provides free offline editor software for Mac and Windows, plus manuals and training resources. Contact Creation Networks for warranty, integration, and commercial deployment support.
